Overview

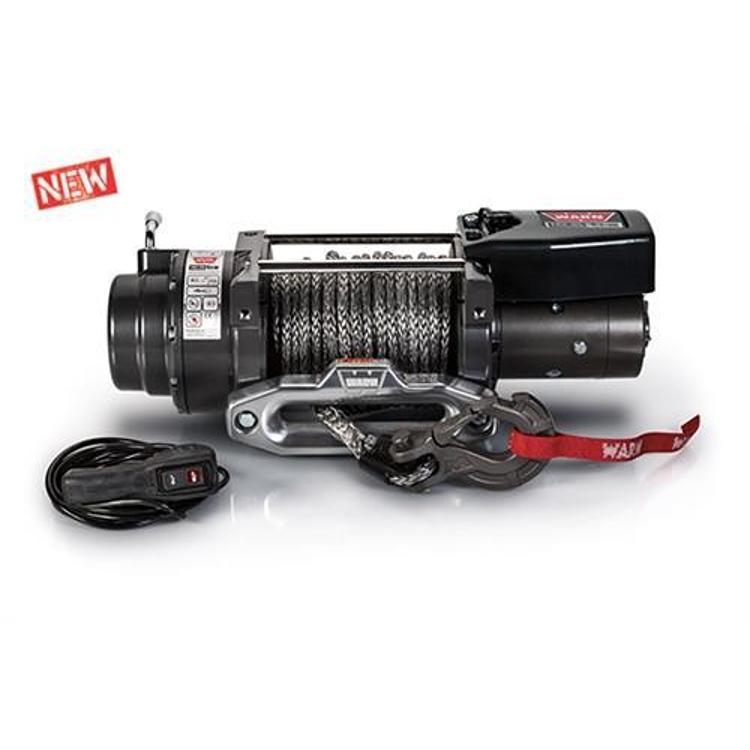

The Warn 16.5TI-S is a 16500 lb electric recovery winch with a 12V motor, a 261:1 gear ratio and 80 ft of 3/8 Spydura Pro synthetic rope. It is rated at 16,500 lbs of pulling capacity and is built for heavy vehicles, on or off pavement.
Fitment is for you to confirm, since no make, model or year is named for this winch. The winch centers on its synthetic rope, a heat-protective sleeve on the first rope layer and a thermometric indicator that gives operator feedback during a pull.
Key features
- 16,500 lb rated line pull
- 80 ft of 3/8 Spydura Pro synthetic rope, which Warn describes as lightweight and easy to handle
- Heat-treated rope construction for maximum tensile strength
- Temperature-resistant sleeve on the first rope layer
- Thermometric indicator that gives operator feedback during winching
- Hawse fairlead and a 12 ft remote switch lead
Preparing for a heavy-duty install
An electric winch draws heavy current, so the wiring is the most important part of the job. Use a cable sized for the load, a fuse close to the battery and clean, tight connections. Route the power and remote leads away from moving suspension parts, exhaust heat and sharp edges.
Synthetic rope needs different handling than steel cable. Keep it out of sharp contact with the fairlead edges, avoid kinks, and keep hands and clothing away while it is under tension. Inspect the rope for fraying and replace it when fibers are damaged.
The heat-protective sleeve on the first layer helps during long pulls, but the winch should still rest between heavy pulls so the motor can cool.
- Test the remote before going off road
- Confirm the battery can handle the draw
- Keep the rope spooled evenly
Specifications
| Brand | Warn |
|---|---|
| Model | 16.5TI-S |
| UPC | 12748977407 |
| Rated line pull | 16500 lbs |
| Motor | 12V |
| Gear ratio | 261:1 |
| Type of winch | Electric |
| Remote control | Remote switch, 12 ft lead |
| Synthetic rope | 80 ft of 3/8 Spydura Pro |
| Rope construction | Heat-treated |
| Fairlead | Hawse |
| Thermometric indicator | Yes |
Vehicle fitment
Confirm your vehicle’s year, model and trim before ordering. Check the mounting position and electrical requirements for your vehicle before choosing a mount.
Before choosing a mount, check the mounting, bolt pattern and electrical requirements for your vehicle. The winch draws heavy current, so plan the wiring with care.
Installation notes
Electric winches draw heavy current, so wire this one with a fused cable and secure battery connections. Keep the remote lead clear of moving parts during installation.
What’s included
The package includes 80 ft of 3/8 Spydura Pro synthetic rope, a hawse fairlead and a remote switch with a 12 ft lead. Plan for mounting hardware separately and check it against your vehicle before installing.
