Overview

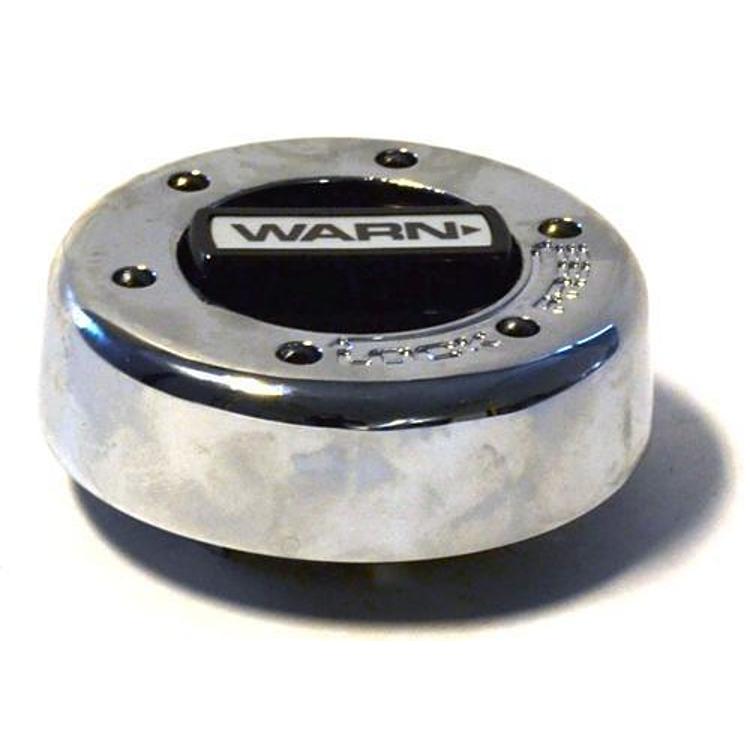

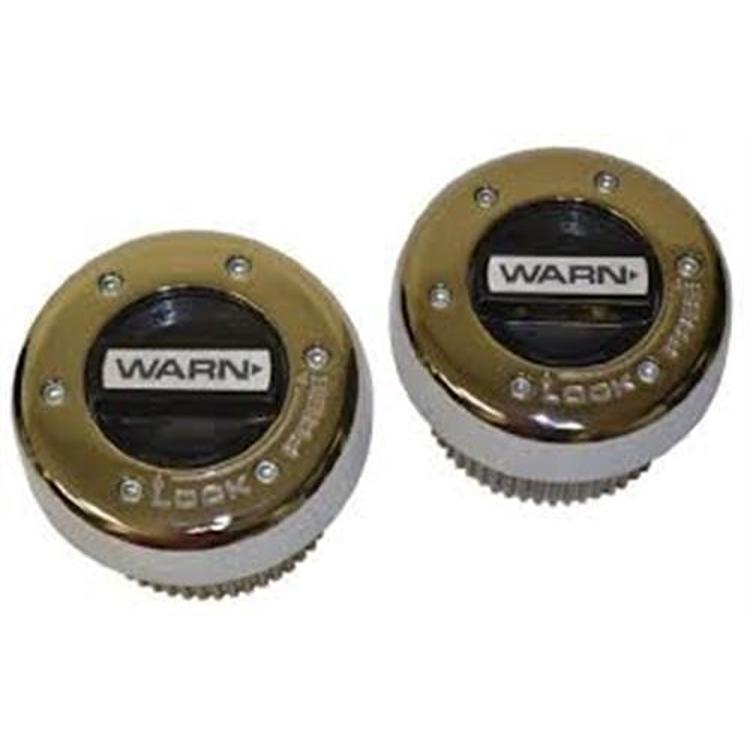

The Warn 11690 is a standard manual locking hub kit for internal style wheel hubs, with a chrome outer housing and a black center knob. It is built for 1.310 in. outer axles with 30 splines and works as an OEM-style replacement hub.

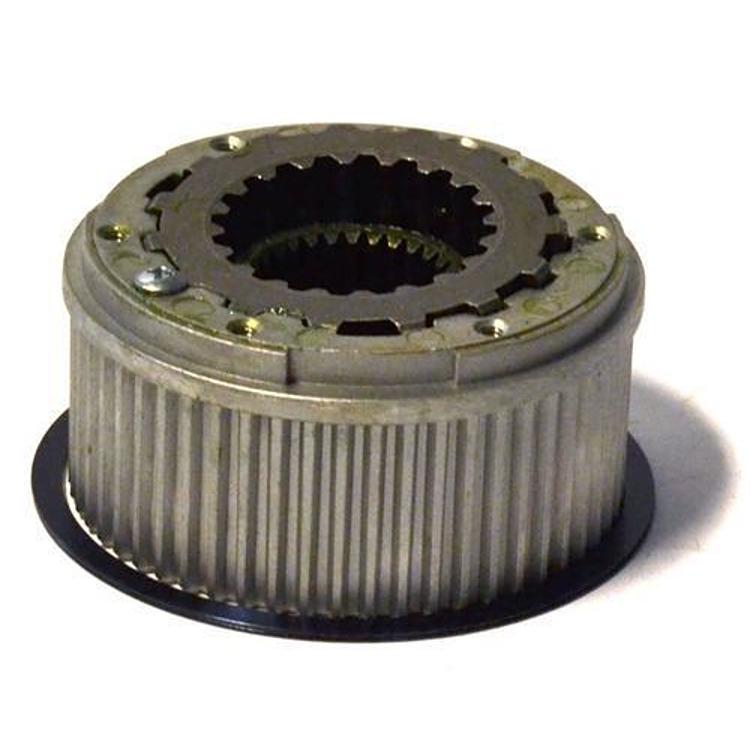

Warn says these standard hubs are the same basic hubs it has supplied to OEMs around the world. They share several features with Warn’s premium hubs, including a 4140 steel clutch ring, an inner drive gear and a precision cast hub body.
Key features
- Manual locking operation with a black plastic center knob
- Chrome outer housing
- 4140 steel clutch ring and inner drive gear
- Precision cast hub body
- Designed as an OEM hub replacement
- Limited lifetime warranty
Hub care and inspection
Locking hubs run in grease and are exposed to road grit, water and salt, so regular inspection keeps them working. The clutch ring and inner drive gear are the parts that engage the axle, and they wear when the hub is shifted under load or run in a dirty environment. Rough engagement, noise, or a hub that does not lock fully are signs the internal parts need attention.
When fitting a new hub, match the axle spline count and hub style before installing. Clean the hub bearing area, inspect the spindle, and replace any seal or gasket you can reach. After the first trail runs, check that the hub locks and releases smoothly, and recheck the retaining hardware. Keep the knob clean and free of grit so the hub operates properly.
- Check engagement after each trail run
- Inspect the clutch ring for wear
- Keep grit away from the knob
Specifications
| Brand | Warn |
|---|---|
| Part number | 11690 |
| UPC | 12748116905 |
| Hub type | Standard manual, internal style wheel hub |
| Outer axle | 1.310 in., 30 splines |
| Outer housing | Chrome |
| Center knob | Black, plastic |
| Clutch ring | 4140 steel |
| Warranty | Limited lifetime |
Vehicle fitment
It is matched by hub type and axle size, for internal style wheel hubs with a 1.310 in., 30-spline outer axle.
Measure your outer axle before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the outer axle before fitting, since this kit is sized for a 1.310 in., 30-spline shaft.

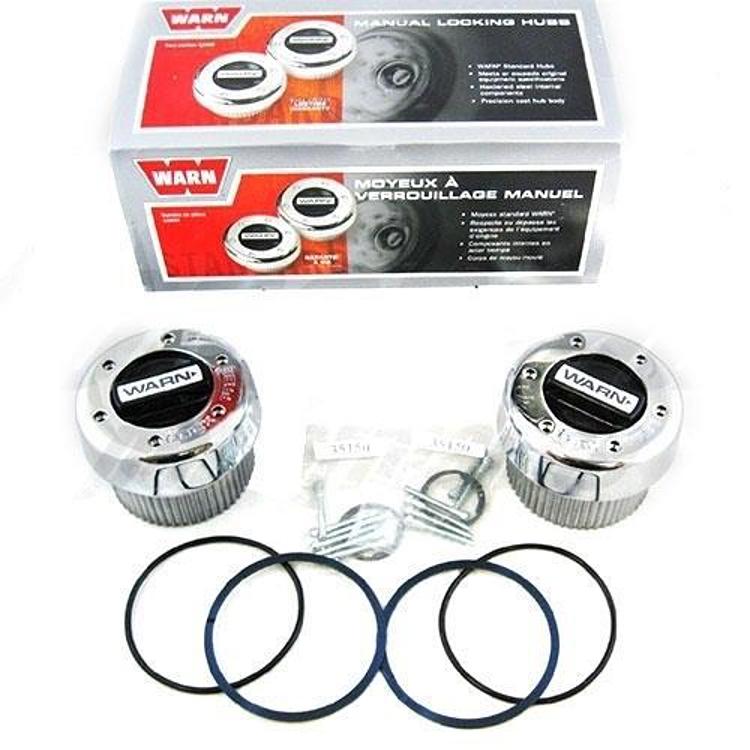

What’s included
The kit is one standard manual hub kit.
