Overview

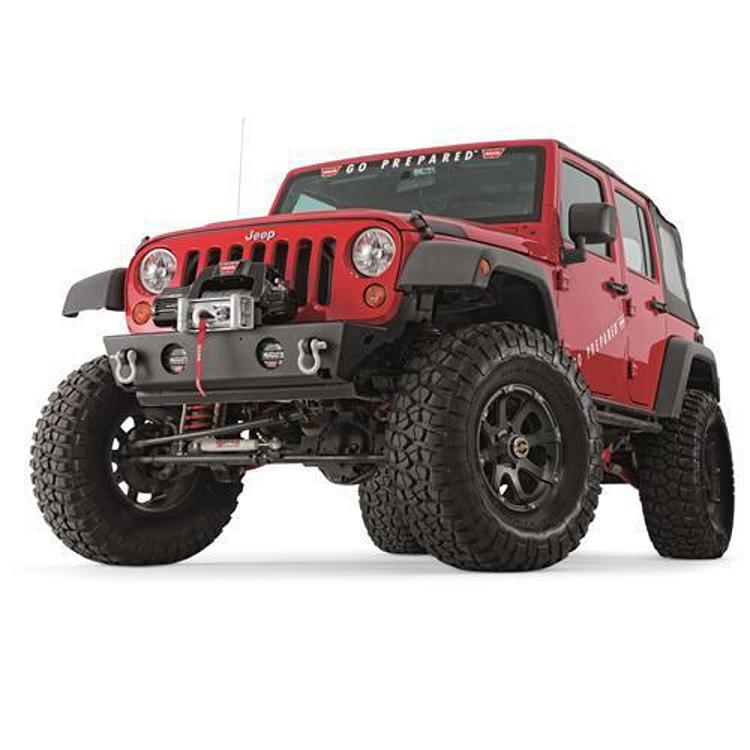

The Warn Rock Crawler stubby front bumper with light and D-ring mounts in black, part number 87650, is a narrower version of Warn’s Rock Crawler Bumper. It is made from 3/16 inch steel plate with a black powder coated wrinkle finish, and the grille guard is not included.
Warn laser-cuts and CNC-forms the bumper for durability, tapers the ends for increased approach angles and welds on eyelets for D-shackles. Hidden mounting hardware gives a clean finish with reduced fastener corrosion, and no drilling is required. Warn says its bumpers accept all WARN mid-frame winches with a capacity of 12,000 lb and under, excluding the M8274-50, and there are recessed ports and mounts for Warn W350F lights.
Key features
- 3/16 inch steel plate
- Black powder coated wrinkle finish
- Laser-cut and CNC-formed for durability
- Tapered ends for increased approach angles
- Welded eyelets to mount D-shackles
- Hidden mounting hardware reduces fastener corrosion
- Accepts WARN mid-frame winches up to 12,000 lb, excluding the M8274-50
- Recessed ports and mounts for Warn W350F lights, including factory lights
- No drilling required
Winch and recovery setup
A front bumper with eyelets and winch mounts changes how recovery loads reach the vehicle. Pull straight when possible, and keep the winch line aligned with the fairlead to prevent side loading on the mount. Use rated D-shackles and recovery straps matched to the load, and keep hands and bystanders clear of the line while winching. A winch that is too heavy for the vehicle can overload the bumper and its hardware.
Stubby bumpers leave less overhang, which can help with approach angles, but they also put the light and winch area close to the ground. Check the mounts after each hard recovery, looking for cracks in the welds, loose fasteners and bent mounting brackets. Light and winch wiring should be routed where rocks and brush cannot snag it. Keep the powder coat in good condition, since chips can start rust on bare steel underneath.
Specifications
| Brand | Warn |
|---|---|
| Part number | 87650 |
| UPC | 12748876502 |
| Product type | Front bumper, Rock Crawler stubby |
| Position | Front |
| Material | Steel plate, 3/16 inch |
| Finish | Powder coat, black wrinkle finish |
| Winch compatibility | WARN mid-frame winches up to 12,000 lb (not M8274-50) |
| Winch mount | Included |
| D-ring mounts | Welded eyelets for D-shackles |
| Light mounts | Included, for Warn W350F lights |
| Grille guard | Not included |
| Body styles | 2 and 4-door models |
| Fit type | Direct fit |
Vehicle fitment
It is for 2 and 4-door models. Confirm fit for your vehicle’s year, model and trim before ordering, since the body style alone does not settle the application.
Do not assume the vehicle from the model or body-style wording; check Warn’s application guide for 87650 against your vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Warn says no drilling is required and that the mounting hardware is hidden. Warn W350F lights are sold separately from the bumper, and the grille guard is not included.
What’s included
- Rock Crawler stubby front bumper with D-shackle eyelets
- Winch mount
- Hidden mounting hardware
Not included: the grille guard, the winch, and the Warn W350F lights.
