Overview

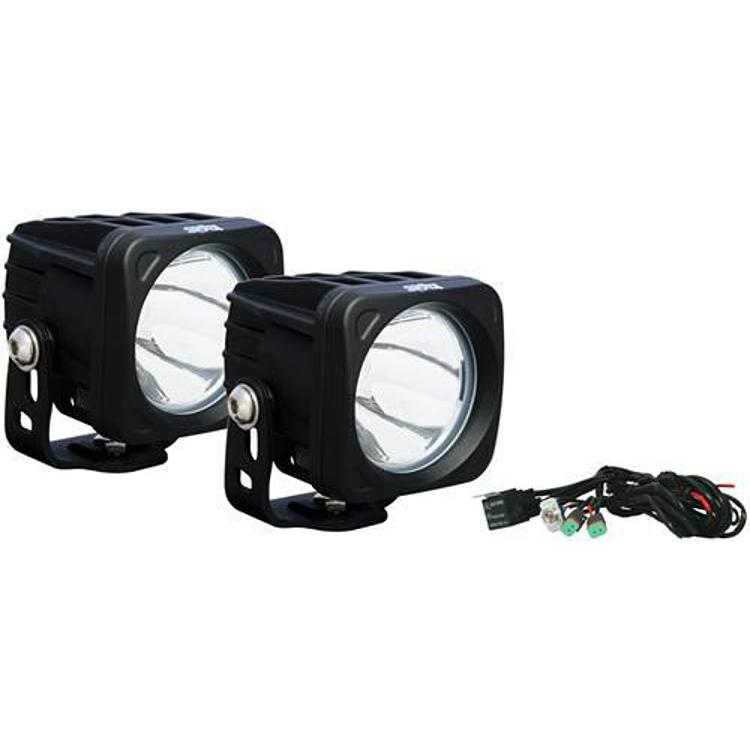

The Vision X Lighting Optimus Series Prime 20-Degree LED Black Light Kit in narrow beam, part number 9138015, is a kit with a 20 degree narrow beam. It is a 3.25 inch square off road light.
The light uses 10 Watt LED technology, a black powder coated die-cast aluminum housing and IRIS reflector optics. It accepts a multi-volt 9-32V DC input, has a 2 inch mounting depth and weighs 1.25 pounds.
Key features
- 20 degree narrow beam
- 10 Watt LED technology
- IRIS reflector optics
- Multi-volt 9-32V DC input
- 2 inch mounting depth
- Comes with an extended warranty.
Planning a driving light install
A narrow beam light concentrates its output into a tighter pattern, which suits long sight lines on trails and open roads. Many owners pair a narrow light with a wider flood light, so the near ground is covered by one and the distance ahead by the other. Because the beam is tight, aim matters more than it does with a wide pattern. Set the height and sideways aim with the vehicle parked on level ground before tightening the bracket.
Housing size and mounting depth decide where the light can sit. Check clearance behind the mounting surface, including the bracket, the wiring run and any contact with the hood, bumper or roof rack. Kits often share one fuse and switch across several lights, so plan the circuit as a whole rather than one light at a time.
- Confirm the bracket clears the mounting surface before drilling
- Keep wiring away from moving suspension and steering parts
Specifications
| Brand | Vision X Lighting |
|---|---|
| Part number | 9138015 |
| UPC | 887009138015 |
| Product type | Kit |
| Size | 3.25 inch square |
| Beam | 20 degree narrow |
| LED power | 10 Watt |
| Input | 9-32V DC |
| Housing | Black powder coated die-cast aluminum |
| Mounting depth | 2 inch |
| Weight | 1.25 pounds, light only |
Vehicle fitment
Universal fit with no vehicle named, so the kit is not tied to a year or model. Check the mounting footprint against your vehicle’s surfaces.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the kit parts against your installation plan before starting. Use a fused circuit within the 9-32V DC range.
What’s included
Check the package contents against your installation before starting.
Not included: Plan for a separate bracket and harness if your install needs them.
