Overview

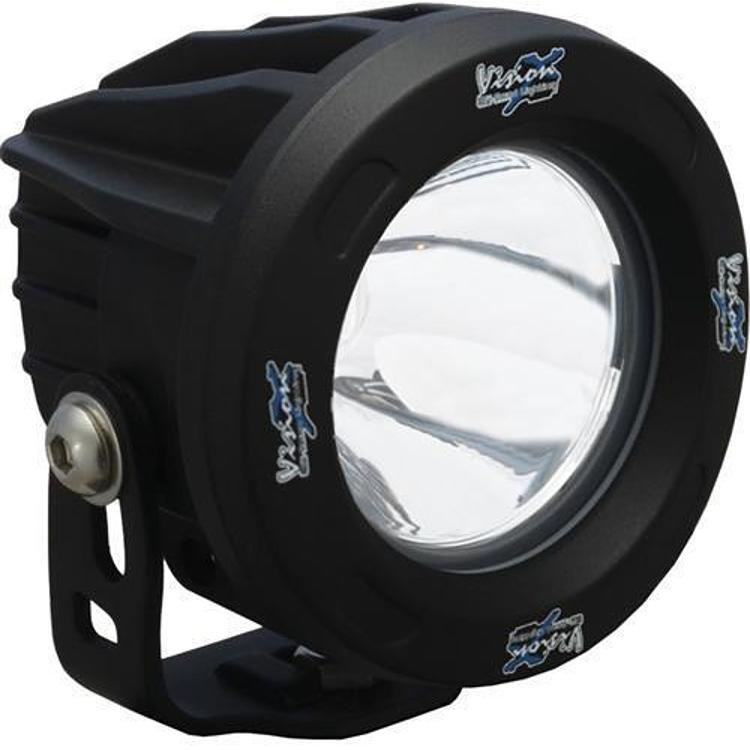

The Vision X Lighting Optimus Round Series Prime 10 Degree Black LED Light in spot beam, part number 9140896, is a 3.25 inch round off road light with a 10 degree spot beam. The model is XIL-OPR110 and it is a universal fit light.
The light runs on 10 Watt LED technology inside a black powder coated die-cast aluminum housing. It has an IRIS reflector and Prime Drive, which is designed for enhanced reliability and output. It takes a multi-volt 9-32V DC input, has a 2 inch mounting depth and weighs 1.25 pounds.
Key features
- Round 3.25 inch housing
- 10 degree spot beam
- 10 Watt LED technology
- IRIS reflector
- Multi-volt 9-32V DC input
- Black powder coated die-cast housing
Round housings and bracket choice
Round housings are common on off road lights because the shape is simple to seat in a bracket or bar. The round profile can sit in a pod, a bull bar or a roof mount, but the mounting surface still has to be flat enough to hold the bracket square. Spot beams throw a narrow pool of light far down the trail, so a light like this often pairs with a wider light for close range.
Check the aim after the first few trips, since vibration can slowly move a bracket. Keep the lens clean, because mud and road film cut output more than most owners expect. Inspect the seal around the housing for cracks or gaps, and replace a damaged seal before water gets behind the lens.
- Measure the mounting spot before ordering a bracket
- Tighten bracket bolts on a schedule
- Use a fused circuit for each light
Specifications
| Brand | Vision X Lighting |
|---|---|
| Part number | 9140896 |
| UPC | 887009140896 |
| Model | XIL-OPR110 |
| Shape | Round |
| Size | 3.25 inch |
| LED power | 10 Watt |
| Beam | 10 degree spot |
| Input | 9-32V DC |
| Housing | Black powder coated die-cast aluminum |
| Mounting depth | 2 inch |
| Weight | 1.25 pounds |
| Warranty | Extended warranty |
Vehicle fitment
Universal fit, with no make, model or year attached. Confirm the round mounting spot suits your vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use a fused circuit, keep the supply inside the 9-32V DC range, and check local rules for auxiliary lights before using it on a public road.
What’s included
Check the package contents against your installation before starting.
Not included: Plan for a separate bracket and wiring if your install needs them.
