Overview

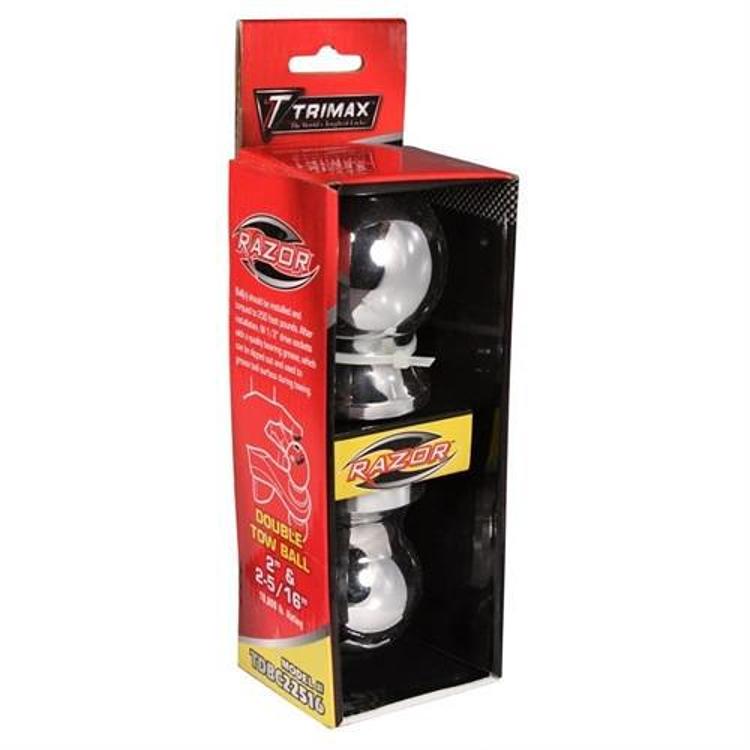

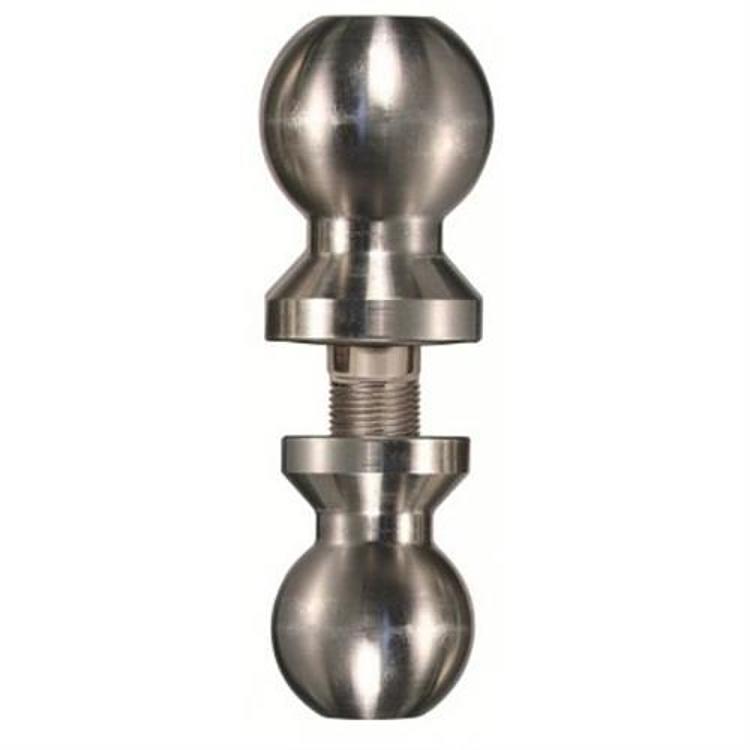

The Trimax Locks Double Hitch Ball, part number TDBC22516, is a chrome tow ball that is reversible, with a 2 inch steel ball on one side and a 2 5/16 inch steel ball on the other. It has a 1 inch shank and a 10,000 lbs max load rating.
Trimax Locks gives it a universal fit, so the ball is not tied to a vehicle. The ball size you need depends on your trailer coupler, so match the 2 inch or 2 5/16 inch side before towing.
Key features
- Reversible design with a 2 inch and a 2 5/16 inch steel ball
- 1 inch shank
- Chrome finish
- 10,000 lbs max load rating
Choosing the right ball size
Hitch ball size must match the coupler on the trailer. A 2 inch ball fits couplers made for that size, while a 2 5/16 inch ball fits the larger coupler size. Using a ball that does not match the coupler can leave the trailer loose, so check the coupler marking before you tow. The reversible design is useful when a trailer uses both sizes.
Hitch ball maintenance is simple. Tighten the nut firmly and check it before each trip, since a loose nut can allow the ball to shift under load. Keep the ball and the shank clean and lightly greased so they turn freely in the mount.
- Match the ball size to the coupler before towing
- Check the nut and threads before each trip
- Replace a ball with pitting or flat spots
Specifications
| Brand | Trimax Locks |
|---|---|
| Part number | TDBC22516 |
| UPC | 797824102385 |
| Ball sizes | 2 inch and 2 5/16 inch |
| Material | Steel |
| Shank | 1 inch |
| Shank hole size | 1 inch |
| Max load rating | 10,000 lbs |
| Finish | Chrome |
| Fitment | Universal Fit |
Vehicle fitment
Universal fit is stated, so no vehicle year, make or model applies. Fit depends on your hitch receiver and the coupler on your trailer.
The ball is finished in chrome. Check the finish when it arrives, since chrome and stainless steel look different up close.
Installation notes
The 1 inch shank must match your hitch’s shank hole size, which the specifications give as 1 inch.
What’s included
The ball is described on its own. Not included: a hitch receiver or trailer coupler.
