Trail Gear Rock Assault Pinion Guard – 301081-KIT

Trail Gear

Shop Trail Gear Skid Plates on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Gear Rock Assault 9 pinion guard kit, part number TGI301081-KIT
  • CNC laser cut from 3/8 inch thick A36 steel
  • Designed for factory Ford 9 inch housings and aftermarket replacements
  • Requires 3/8 inch longer fastening hardware

Description

Overview

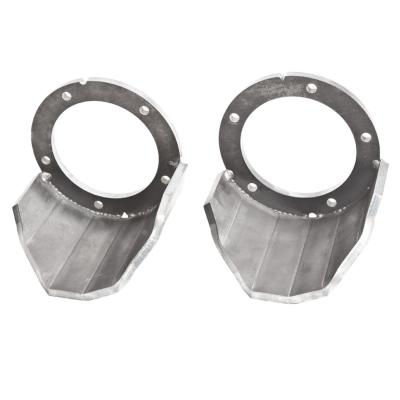

The Trail Gear Rock Assault 9 Pinion Guard kit, part number TGI301081-KIT, protects the U-joint from damage. It is CNC laser cut and formed from 3/8 inch thick A36 steel, and it is designed to fit factory Ford 9 inch housings as well as aftermarket replacement housings.

The guard comes in standard and flipped housing configurations. Longer fastening hardware, 3/8 inch longer than standard, is needed, and the correct length depends on your pinion support model.

Key features

  • Protects the U-joint from damage
  • CNC laser cut from 3/8 inch thick A36 steel
  • Available for standard and flipped housing configurations
  • Designed for factory Ford 9 inch housings and aftermarket replacements
  • Supplied raw and lightly oiled for rust prevention

Protecting the pinion on the trail

The pinion U-joint sits low on the axle, so rocks, stumps and debris can strike it on uneven ground. A guard shields that joint and helps keep the driveline steady when the axle rotates through its travel. The fit depends on how the guard clears the driveshaft, yoke and housing, so check clearance once everything is assembled.

After installing, rotate the axle by hand and watch for contact with the driveline or nearby brackets. Re-tighten the fastening hardware after the first few trail runs, since vibration can back bolts out. Inspect the guard for bent edges, cracks at the bends and rust that may form on bare steel. Keep the U-joint lubricated as part of routine driveline service, because a guard protects the joint but does not replace regular care.

Specifications

Brand Trail Gear
Part number TGI301081-KIT
Material A36 steel
Thickness 3/8 inch
Manufacturing CNC laser cut
Housing configurations Standard and flipped
Finish Raw, lightly oiled for rust prevention
Extra hardware 3/8 inch longer fastening hardware required

Vehicle fitment

The guard is designed for factory Ford 9 inch housings and aftermarket replacements, so fit depends on your axle housing and pinion support combination.

Confirm your axle housing type and pinion support model before ordering.

Installation notes

Requires 3/8 inch longer fastening hardware, with the correct length depending on the pinion support model. Lift and support the vehicle safely before working underneath the axle.

What’s included

Check the hardware you have against the 3/8 inch longer length before starting.

Not included: Longer 3/8 inch fastening hardware, which is needed for installation.

SKU: TGI301081-KIT Categories: ,

Questions & Answers

Does the Trail Gear Rock Assault pinion guard fit my vehicle?

Fit depends on your axle housing. It is designed for factory Ford 9 inch housings and aftermarket replacements, so confirm your housing type and pinion support model before ordering.

What material is the pinion guard made from?

It is CNC laser cut from 3/8 inch thick A36 steel. The guard is supplied raw and lightly oiled for rust prevention.

Is extra hardware needed to install it?

Yes. Longer 3/8 inch fastening hardware is needed, and its correct length depends on your pinion support model. Check the hardware against your setup before starting the install.

How should I check the guard after trail use?

Look for bent edges, loose fasteners and rubbing against the driveshaft or yoke. Re-tighten bolts after the first few runs, since they can back off under vibration.

Does a raw steel guard need protection?

The guard is supplied raw and lightly oiled, so it can begin to surface rust if left wet. Wipe off moisture, re-oil bare areas and touch up any paint after trail use.
