Trail Gear GM Alternator Bracket – 120120-1-KIT

Trail Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

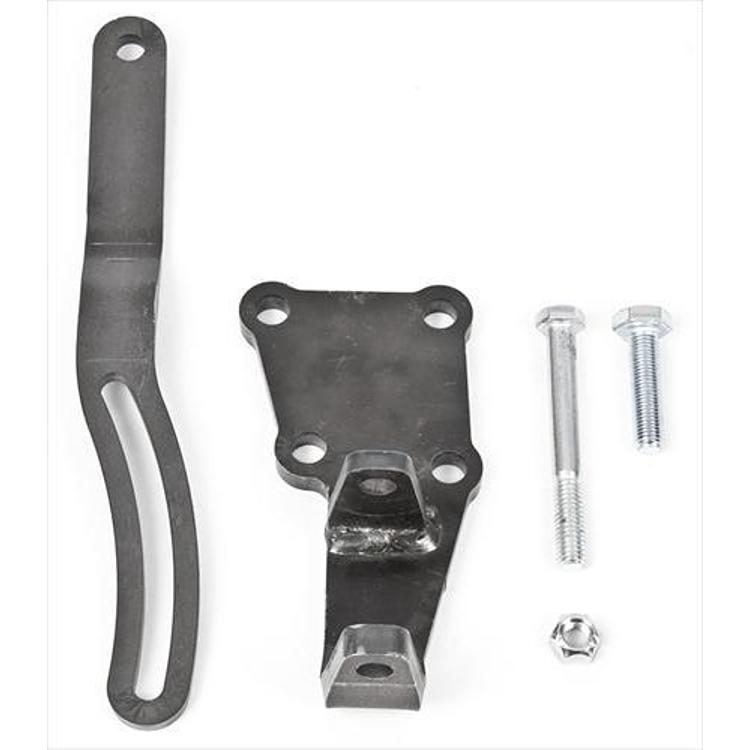

  • Trail Gear GM alternator bracket kit, part number 120120-1-KIT
  • Mounts a GM style one-wire alternator on Toyota 20R, 22R and 22RE engines
  • Works with the stock alternator belt
  • Cross reference NAE 67294, also marked 7294SE

Description

Overview

The Trail Gear GM Alternator Bracket Kit (part number 120120-1-KIT) bolts a GM style one-wire alternator to a Toyota 20R, 22R or 22RE engine. It works with the stock alternator belt and needs no major modifications. It suits owners who want more electrical output than the small OEM Toyota alternator provides.

A larger GM style unit can supply power for rock lights, stereo, GPS and other accessories common to rock crawling and racing. The kit works with many GM style alternators.

Key features

  • Mounts a GM style one-wire alternator on Toyota 20R, 22R and 22RE engines
  • Works with the stock alternator belt
  • Requires no major modifications
  • Works with many GM style alternators, with common cross references listed
  • Meant to supply power for rock lights, stereo, GPS and other accessories

Planning charging load

Choosing an alternator starts with the electrical load you plan to run. Lights, audio, navigation and winches add up quickly, especially when the engine idles at a standstill. A higher output unit helps keep the battery charged under those conditions, but only if the wiring, fuses and battery can handle the current. Plan the load before you pick the output.

Mounting an alternator on a bracket changes belt alignment and tension, so check both after installation. A new belt or pulley alignment check helps prevent slipping and noise. Keep the output wire short, protected and fused close to the battery. Inspect the terminals and the charging wire periodically, because heat and vibration loosen connections on older engines.

  • Add up accessory draw before choosing an alternator
  • Check belt alignment and tension after mounting
  • Fuse the output wire close to the battery

Specifications

Brand Trail Gear
Part number 120120-1-KIT
UPC 70000625359
Engine applications Toyota 20R, 22R, 22RE
Alternator style GM style one-wire
Belt Works with stock alternator belt
Most common alternator AIM/NAE (Napa) 67294, also marked 7294SE
Other cross references BBB Industries 72941w; Beck Arnley 1867294; Lester 7294se; Perfection 020854se100; Worldwide 53166

Vehicle fitment

Fit depends on engine. The kit suits Toyota 20R, 22R and 22RE engines and works with GM style alternators that match the cross references. Confirm your engine code before ordering, and check your alternator part number against those cross references.

Confirm your engine code matches 20R, 22R or 22RE. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit bolts a GM style one-wire alternator to a 20R, 22R or 22RE motor with no major modifications. Match your alternator against the cross reference list before installing. When you upgrade the output, use appropriate fusing on the charging wire.

What’s included

Sort the hardware before starting the install. The GM style alternator is not included, and the bracket is designed to carry one. Not included: the GM style alternator, which the bracket is designed to carry.

SKU: TGI120120-1-KIT Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 7.50 × 3.50 × 3.50 in
brands

Questions & Answers

Which engines does this bracket kit fit?

The kit fits Toyota 20R, 22R and 22RE engines. It bolts a GM style one-wire alternator to those engines and works with the stock alternator belt. Confirm your engine code before ordering, since matching is by engine.

Does it work with my GM alternator?

The kit works with many GM style alternators. Cross references include AIM/NAE (Napa) 67294, BBB Industries 72941w, Beck Arnley 1867294, Lester 7294se, Perfection 020854se100 and Worldwide 53166. Compare your unit's number to that list.

Is a specific Toyota model or year covered?

Matching is by engine rather than model year. Confirm that your engine is a 20R, 22R or 22RE before ordering, and confirm your vehicle's year, model and trim.

What can a GM style alternator power?

The upgrade can supply power for rock lights, stereo, GPS and other accessories. Check the output rating of the GM style alternator you choose against your accessory load before installing.

Does the bracket kit require a new belt?

Not necessarily. The kit works with the stock alternator belt, but check that the belt matches the new alternator pulley and that tension can be set after mounting. Replace the belt if it shows cracks, glazing or fraying.
