Overview

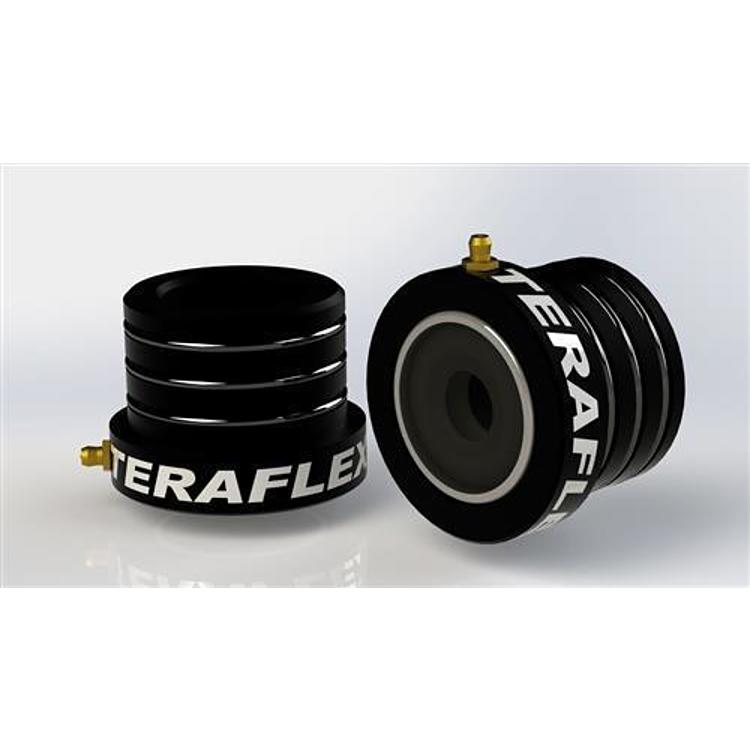

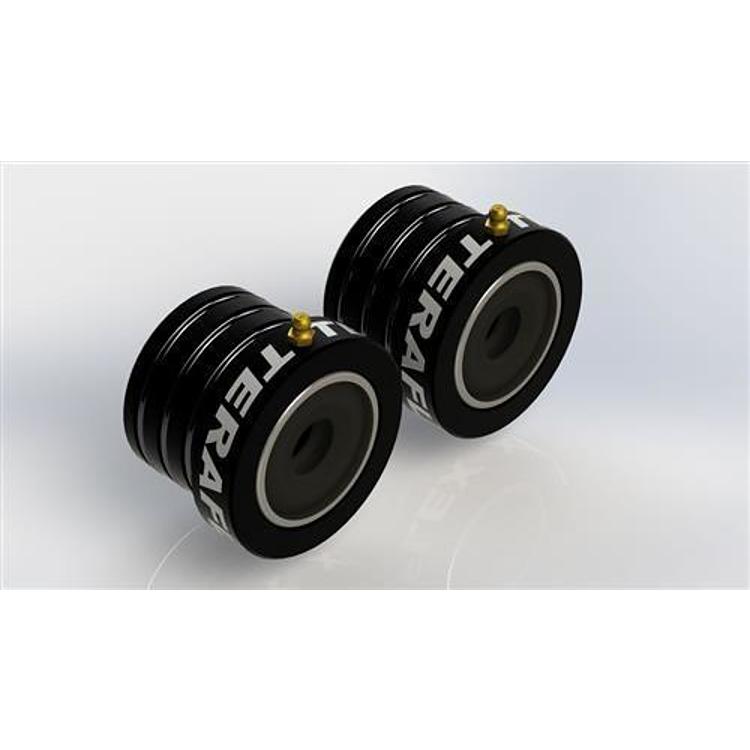

The TeraFlex 4354050 is a high performance front axle tube seal for Tera30 and Tera44 JK replacement housings. It is designed for the oversized 3.25 inch outside diameter axle tubes on those housings. It fits the 2007 to 2018 Jeep Wrangler JK, including Rubicon and Unlimited models.
The outer triple O ring tube seal presses into the housing and forms a mud and water barrier. The inner double seal surface has a cavity between the seal surfaces, which becomes a grease filled pocket for lubrication and adds another barrier to mud and grime.
The seal shares a design developed for NASCAR applications. It is compatible with Rubicon and non-Rubicon axle shafts, including 27 spline Dana 30 shafts and aftermarket 1.5 inch, 35 spline Dana 44 shafts.
Key features
- Designed for the oversized 3.25 inch outside diameter axle tubes on Tera30 and Tera44 JK housings.
- Outer triple O ring tube seal presses into the housing.
- Inner double seal surface with a grease filled pocket for lubrication.
- Compatible with Rubicon and non-Rubicon axle shafts.
- Billet 6061-T6 aluminum seal housing, laser etched and black hard anodized.
Before you install
An axle tube seal sits where the axle shaft enters the housing, and its job is to hold lubricant in and keep mud, water and grit out. Over time the lip and O rings can harden, crack or lose their grip on the tube, and the first sign is often grease collecting on the inside of the wheel or on the brake parts. Because the seal is pressed into the housing, replacing it means removing the axle shaft, cleaning the bore and checking the tube surface for pitting or rust before the new seal goes in.
Seal life depends on how the vehicle is used. Repeated water crossings, deep mud and high-pressure washing push contaminants past worn seals faster than normal road driving does. When the axle is already apart for another job, inspecting the seal area and the axle bearing is a sensible time to replace the seal as well.
- Check the tube surface for pitting before pressing in the seal
- Clean the bore thoroughly so the seal seats square
- Use a seal driver rather than a hammer on the seal face
- Pack the bearing with fresh grease before reassembly
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 4354050 |
| UPC | 843885033134 |
| Application | Tera30 and Tera44 JK replacement housings |
| Axle tube outside diameter | 3.25 inch |
| Tube wall | 1/2 inch wall tube, specify tube thickness when ordering |
| Housing material | Billet 6061-T6 aluminum, black hard anodized |
| Compatible shafts | 27 spline Dana 30 up to 1.5 inch, 35 spline Dana 44 aftermarket |
| Position | Front |
Vehicle fitment
It fits the 2007 to 2018 Jeep Wrangler JK, including the 70th and 75th Anniversary editions, Rubicon, Sahara, Sport, Sport S and the Unlimited versions of those trims.
The seal is written for JK replacement housings, so the TJ, LJ and JL are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Specify your axle tube thickness when ordering, because the seal is made for a 1/2 inch wall tube. Check whether your axle shafts are the Rubicon or non-Rubicon type before you fit the seal, since TeraFlex says both work with it.
What’s included
One front axle tube seal. Check the package contents against your installation before starting.
