Overview

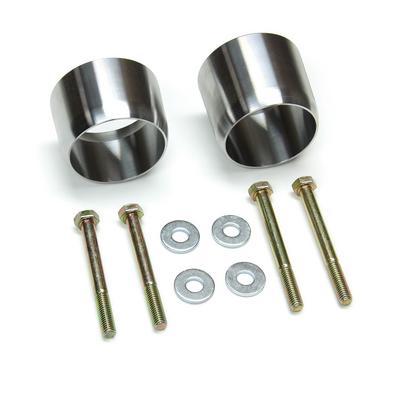

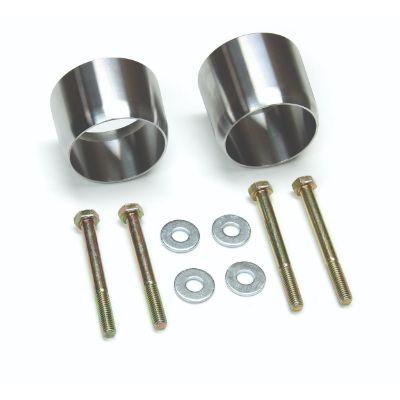

The TeraFlex exhaust spacer kit, part number TER2610000, is for the 2012 model Jeep Wrangler JK with a TeraFlex suspension kit of 3 or more inches of lift. The 2.5 inch TeraFlex suspension kit also needs the spacers.
The spacers install between the driver and passenger head pipe flanges and the flanges of the cross pipe. That moves the cross pipe rearward so the front driveshaft does not contact it during suspension down travel.
Although the kit carries a universal fit label, it is made for the 2012 model Jeep Wrangler JK. Treat it as vehicle-specific.
Key features
- Moves the exhaust cross pipe rearward
- Spacers mount between the head pipe flanges and the cross pipe flanges
- Designed to prevent front driveshaft contact with the cross pipe during suspension down travel
- For TeraFlex suspension kits with 3 or more inches of lift
Clearance for lifted Wranglers
A TeraFlex suspension kit increases how far the axle and driveline move, which is why exhaust clearance matters. The cross pipe sits in the path of the front driveshaft at full down travel, so moving it rearward protects the driveshaft and the cross pipe itself. A proper fit depends on suspension height and driveline angles together.
Before installing, inspect the head pipe and cross pipe flanges, the gaskets and the hangers. Old gaskets often leak once the flanges are separated, so replacing them is a sensible step. After installation, check for rubbing marks and leaks, and make sure the system has cooled before loosening flanges.
- Inspect flange faces and gaskets
- Check hangers for wear
- Look for rubbing marks on the cross pipe
- Recheck clearance after suspension changes
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | TER2610000 |
| Vehicle described | 2012 model Jeep Wrangler JK |
| Lift described | 3 or more inches with TeraFlex suspension; the 2.5 inch kit also uses the spacers |
| Mounting points | Head pipe flanges to cross pipe flanges |
Vehicle fitment
It is made for all 2012 model Jeep Wrangler JK vehicles with a TeraFlex suspension kit of 3 or more inches of lift, and the 2.5 inch suspension kit also uses the spacers. It is not a universal part, so confirm your vehicle’s year, model and trim before ordering.
Other JK model years and Wrangler generations, such as the TJ and LJ, are not covered. Vehicles without a TeraFlex suspension kit are outside this fit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the head pipe and cross pipe flanges before you start, since the flanges must be separated on each side to fit the spacers. Allow the system to cool before loosening any flange.
What’s included
Confirm the number of spacers and the hardware in the package before starting the installation.
