Overview

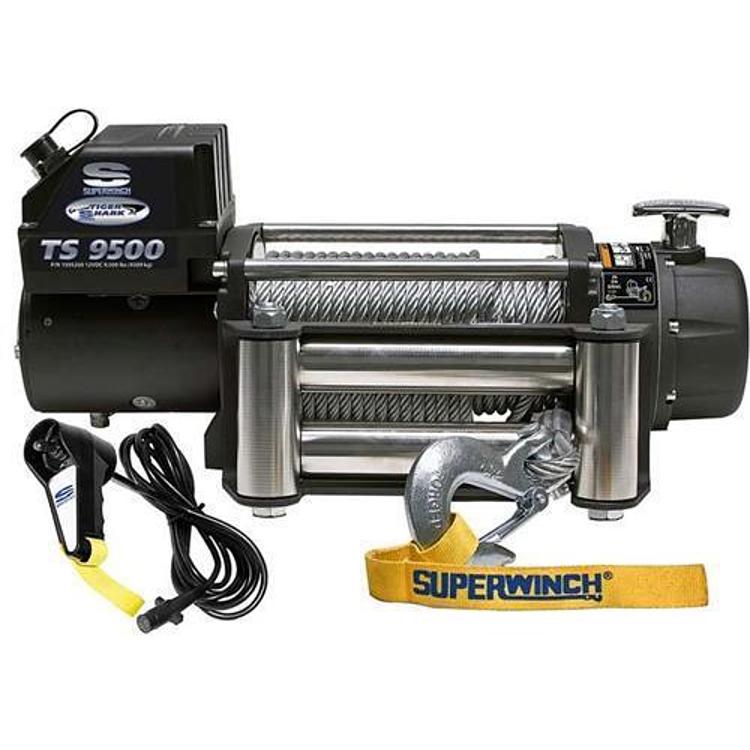

The Superwinch Tiger Shark 9500 is a 9,500 lb rated electric winch, part number 1595200, from Superwinch’s Tiger Shark Series. It uses a 5.2 HP series wound motor, a three-stage planetary gear train and a 218:1 gear reduction, and it carries 95 ft of 21/64 in (8.3 mm) cable on a 2.5 in (63.5 mm) drum. Superwinch presents it as an entry-level winch for enthusiast-level 4×4 owners who want a capable recovery and pulling unit.
The Tiger Shark line is a standard-issue entry-level design that draws on decades of company experience. Its mechanical automatic load holding brake, 4-way roller fairlead and 12 ft hand-held remote make it a straightforward winch for pulling a vehicle out of a bind.
Key features
- 9,500 lb rated line pull

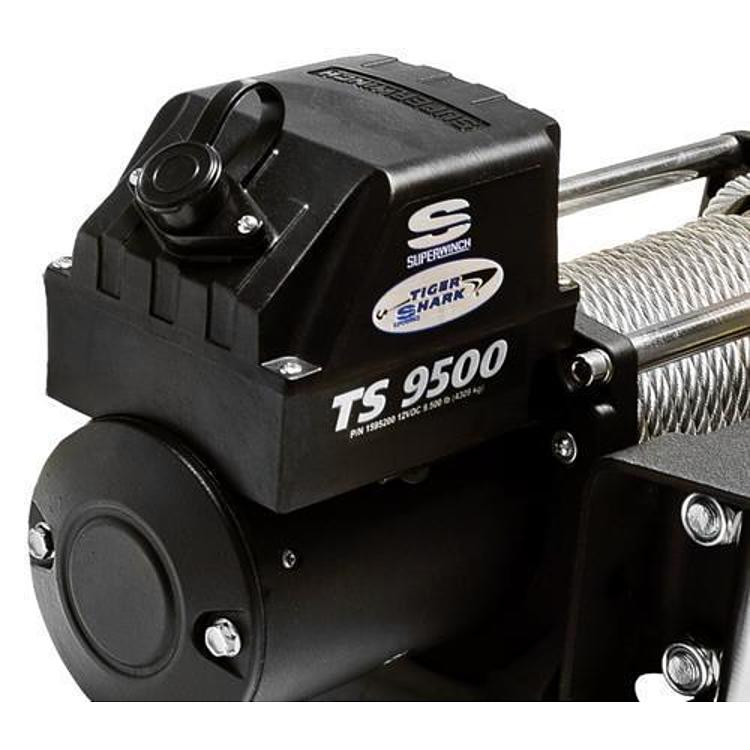

- 5.2 HP series wound motor
- Three-stage planetary gear train with a 218:1 reduction ratio
- Mechanical, automatic load holding brake
- 4-way roller fairlead for the 95 ft cable
- 12 ft hand-held remote control, included
Electrical setup and load
Electric winches draw heavy current, and the cable run between the battery and winch is often the weak point. Use cable sized for the load, keep connections clean and tight, and add a fuse or circuit breaker close to the battery. A battery that is weak or under-charged will sag during a pull and may leave the winch stalling partway through.
The mechanical load holding brake keeps the drum from backdriving when the motor is off, which makes the winch safer on slopes. Test the brake with a light load before a trip, and do not rely on it to hold a heavy vehicle on its own. Keep the remote lead off hot exhaust parts and sharp edges.
- Check the battery and cable connections before each trip
- Keep the fuse or breaker rated for the motor draw
- Test the brake with a light load before recovery work
Specifications
| Brand | Superwinch |
|---|---|
| Part number | 1595200 |
| UPC | 22705003605 |
| Rated line pull | 9,500 lbs |
| Winch motor | 5.2 HP series wound |
| Control | Rubber 12 ft hand-held remote |
| Gear train | 3-stage planetary |
| Gear reduction ratio | 218:1 |
| Braking action | Mechanical, automatic load holding |
| Drum size | 2.5 in (63.5 mm) diameter x 9.0 in (228 mm) length |
| Cable | 21/64 in x 95 ft (8.3 mm x 28 m) |
| Fairlead | 4-way roller |
| Remote control | Included |
| Overall dimensions (L x W x H) | 20.83 in x 6.30 in x 9.23 in |

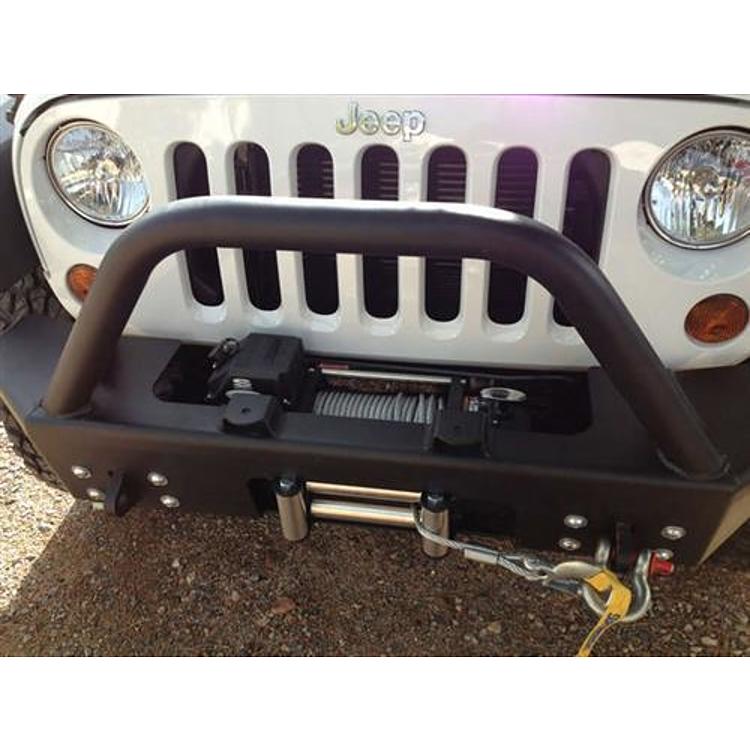

Vehicle fitment
It is not tied to a specific year, make or model, so mounting compatibility depends on the vehicle you plan to use.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Electric winches draw heavy current under load, so wire the motor to the battery with heavy-gauge leads and disconnect the battery when the winch is not in use. Thread the cable through the 4-way roller fairlead and keep the hand-held remote within the operator’s reach while spooling.
What’s included
The 12 ft hand-held remote control comes with the winch. Confirm the rest of the package contents against your installation before starting.
