Overview

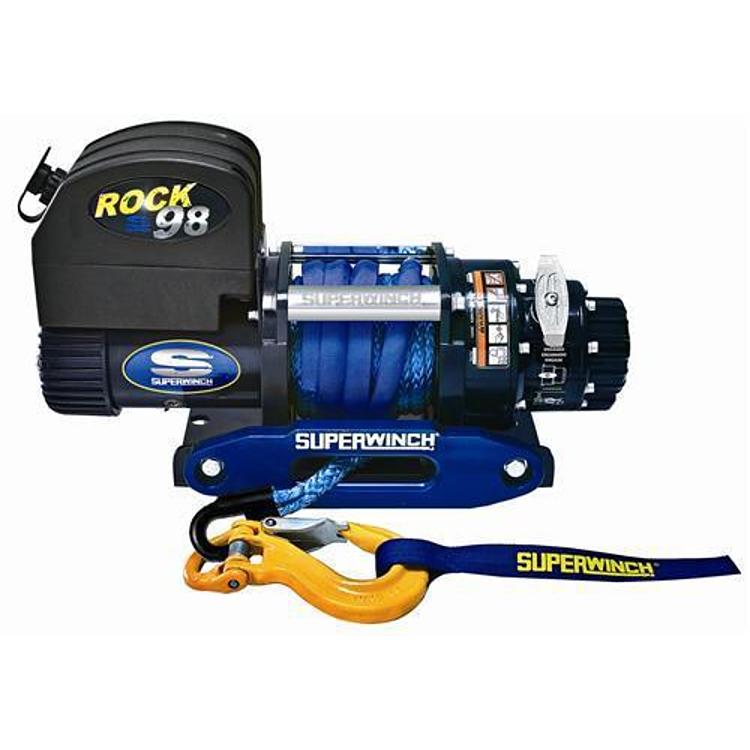

The Superwinch Rock 98, part number 1698201, is a 9800lb competition winch for vehicle recovery. It belongs to the TALON Performance Series and has a sealed assembly with a high-performance motor, a two-stage planetary gearbox and a two-stage spur gearbox.
The seals meet the IP67 standard throughout. It has 5.2 and 6.0 HP motors that deliver 62 FPM line speed under a 75 amp draw. It is universal fit. The 3/8 inch x 80 ft synthetic rope is an optional addition, and the brake holds the load with zero drag on the cable paid in.
Key features
- Seals meet the IP67 standard from the motor end through the solenoid, gearbox and remote
- 5.2 and 6.0 HP sealed motors with a heat sink-styled motor cap
- Two-stage planetary and two-stage spur gearbox
- 62 FPM line speed at a 75 amp draw
- Dual-stop 100% load holding brake located inside the gearbox, away from the drum
- VS4 solenoid with a patented venting feature that releases internal condensation
- Sealed hand-held remote with LED light and a 15 Feet lead
- Chrome plated aluminum spool knob that rotates in 45 degree increments
Sealed winch maintenance
A sealed winch keeps water, mud and grit away from the motor and gearbox, which is useful on wet trails and in snow. Seals still need a look after hard use, so inspect the gaskets and the solenoid cover for damage or debris. Keep the seal surfaces clean when you service the unit.
A high-load competition winch works hardest when it is matched to the vehicle and bumper it is mounted on. Make sure the mounting area can carry the load and that the winch is aligned with the fairlead. Plan for regular checks of the rope and mounting bolts.
Synthetic rope should be inspected for fraying and kinks, and the hawse fairlead should be free of burrs. Replace damaged rope promptly, and store the spool dry.
- Clean the seals after muddy trips
- Check the brake after heavy pulls
- Inspect the remote lead for cuts
Specifications
| Brand | Superwinch |
|---|---|
| Part number | 1698201 |
| UPC | 2270500351 |
| Line pull | 9800lb |
| Motor | 5.2 and 6.0 HP, sealed |
| Line speed | 62 FPM |
| Current draw | 75 amp |
| Gearbox | 2-stage planetary and 2-stage spur |
| Brake | 100% load holding, dual-stop design |
| Line type | Synthetic rope is an optional add-on. |
| Optional rope | 3/8″ x 80′ synthetic rope rated at 17,600 lbs |
| Fairlead | Hawse |
| Remote control | 15 Feet Lead, sealed hand-held with LED light |
| Solenoid | VS4 (Vented, Submersible, and Stabilized with Sealed Socket) |
| Sealing | IP67 standard |
| Spool knob | Chrome plated aluminum, 45 degree increments |
| Fitment | Universal fit |
Vehicle fitment
The Rock 98 is a universal fit winch, built to fit a range of vehicles rather than one model. Confirm the mounting location and bumper can carry a unit rated at 9800lb before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The spool knob turns in 45 degree increments, which Superwinch notes is useful for in bumper applications, so settle the winch’s orientation before final bolting. The fairlead is a hawse type; feed the rope through it carefully and keep hands and clothing clear of the rope while it is under tension.
What’s included
The winch package includes a sealed remote with a 15 Feet lead and LED light. The 3/8 inch x 80 ft synthetic rope is an optional extra.
Not included: Optional synthetic rope, sold as an add-on and not part of the base winch.
