Overview

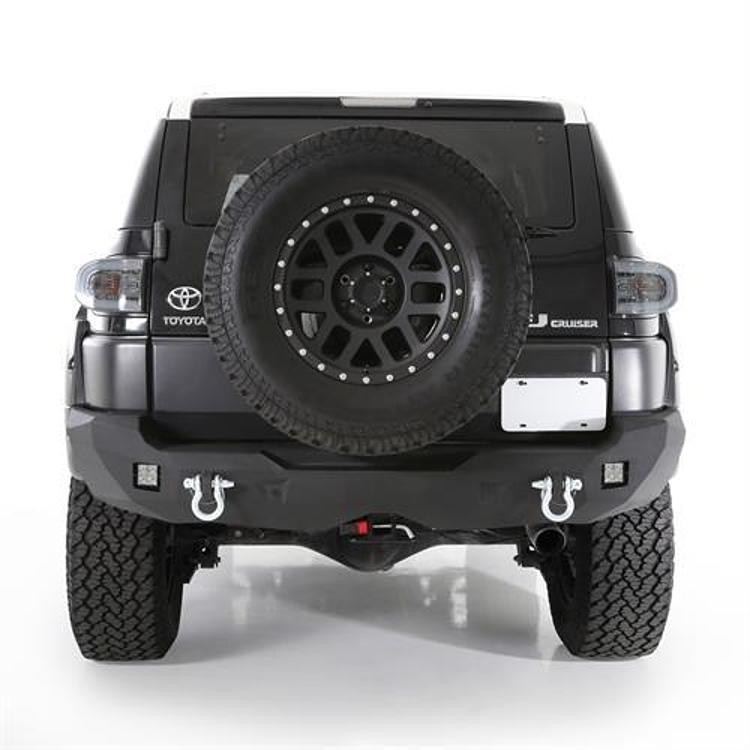

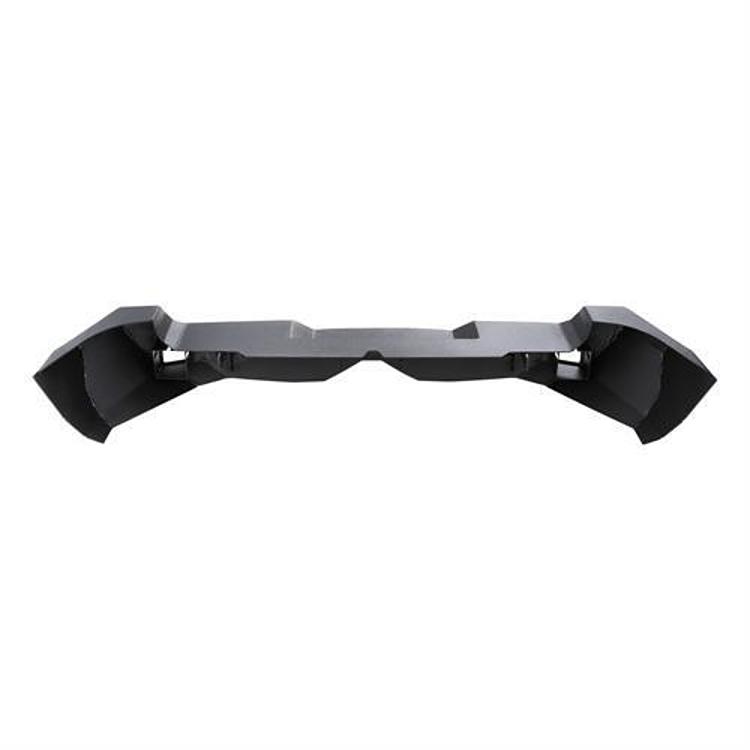

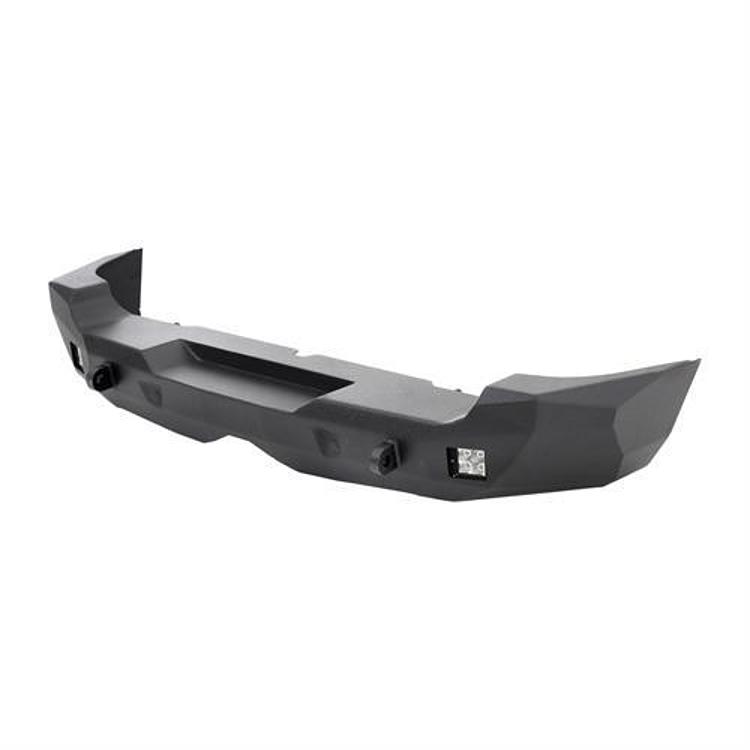

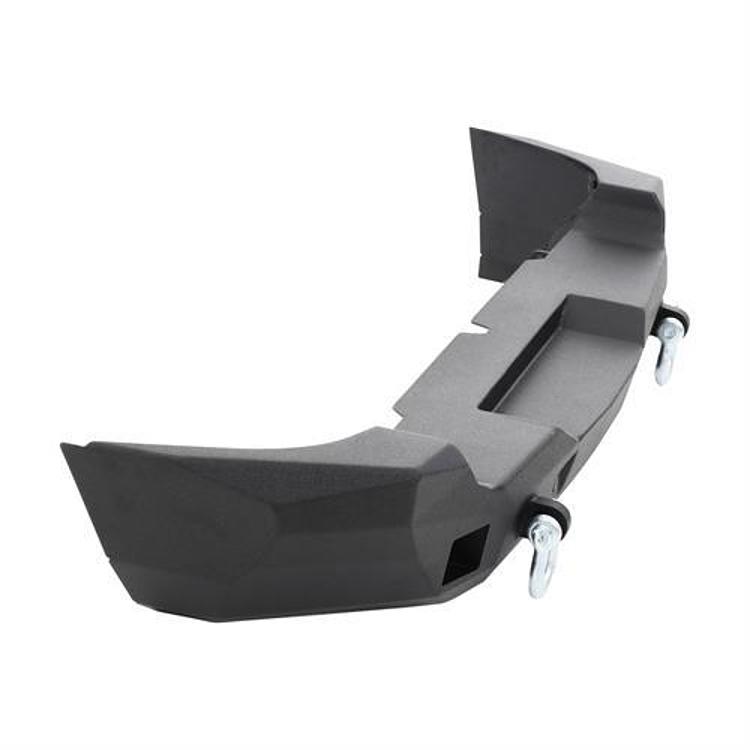

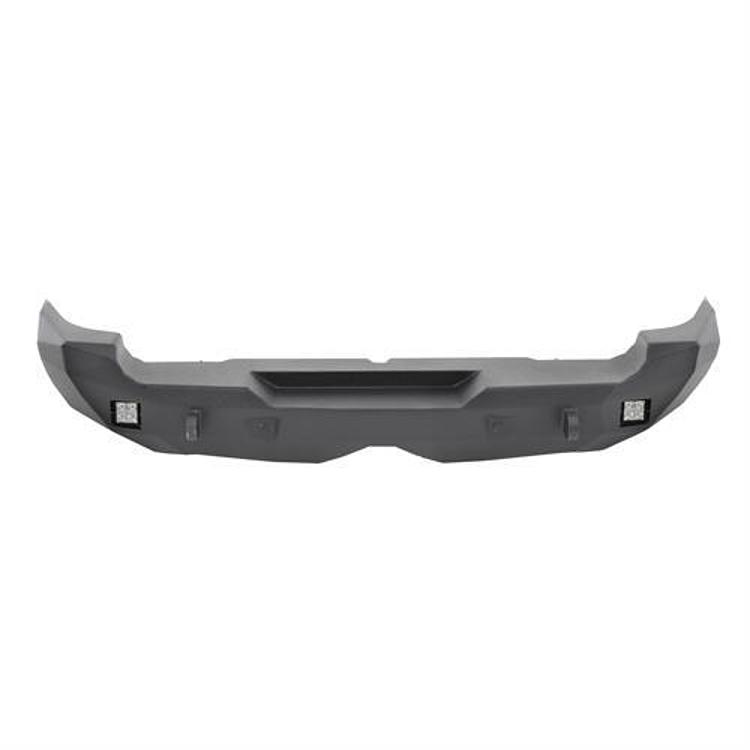

The Smittybilt M1 Toyota Rear Bumper, part number 614850, is a black rear bumper with D-ring mounts and additional rear lights included. It requires the O.E. Toyota hitch for installation. Confirm fit for your Toyota’s year, model and trim before ordering.
Smittybilt says each M1 is made of 3/16″ cold rolled steel with 1/4″ mounting plates and powder coated in its signature series two stage powder coat. The standard 7/8 inch solid D-ring mounts are welded on the inside and out, and the bumper bolts on without drilling.
The bumper has a 5 year limited warranty, and the Smittybilt Advantage Warranty is limited lifetime.
Key features
- Two stage matte black powder coat
- 3/16″ and 1/4″ cold rolled steel
- Solid mount D-rings welded inside and out
- Bolts on without drilling
- Requires the O.E. Toyota hitch for install
- Additional rear lights included
Choosing a rear bumper setup
A rear bumper carries more load than its size suggests, so the hitch and mounting points matter as much as the bumper itself. Before buying, look at how the bumper fastens to the frame and whether the hitch you already have is the one the bumper needs. Mounting hardware and welds deserve a close look at the start of each season, especially after rough trail use or heavy towing.
D-ring mounts are useful for recovery straps, but they only help when they are rated for the job and sit square to the pull. Additional rear lights add wiring that should be routed away from moving parts and checked for chafing. Powder coat protects the steel, yet chips should be touched up before rust forms along the edges.
- Hitch condition and fit
- D-ring mount welds and bolts
- Light wiring and connectors
- Paint chips on the lower edges
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 614850 |
| UPC | 631410102741 |
| Series | M1 |
| Material | 3/16″ cold rolled steel with 1/4″ mounting plates |
| Finish | Two stage matte black powder coat |
| D-ring mounts | 7/8 inch solid |
| Tire carrier | No |
| Rear lights | Additional lights included |
| Hitch | Requires O.E. Toyota hitch |
| Warranty | 5 year limited; Advantage Warranty limited lifetime |
Vehicle fitment
It is a Toyota rear bumper with no specific model or years identified. Confirm fit for your vehicle’s year, model and trim before ordering.
The sibling M1 bumper 614840 is named for the Toyota FJ; the two part numbers are not interchangeable. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bumper installs onto the O.E. Toyota hitch, so keep the factory hitch in place before mounting it. The install is bolt-on with no drilling.
What’s included
- M1 rear bumper
- 7/8 inch solid D-ring mounts
- Additional rear lights
Not included: the O.E. Toyota hitch, which the bumper requires.
