Overview
The Smittybilt M1 Fender Flare, part number 17395, is a set of four paintable front and rear flares that add up to 2 inches of extra tire coverage for trucks and SUVs.
Each flare is built in two layers. The outer acrylic layer is meant for heat and UV resistance, and the inner ABS layer provides structural rigidity, fatigue resistance and impact protection. The surface is lightly textured and takes paint, and the set uses stainless steel rivets with a rubber gasket for a tight fit.
Key features
- Adds up to 2 inches of extra tire coverage to help keep road debris off the side of the truck
- Dual composite construction: acrylic top layer for heat and UV protection, ABS interior layer for rigidity and impact protection
- Lightly textured and paintable

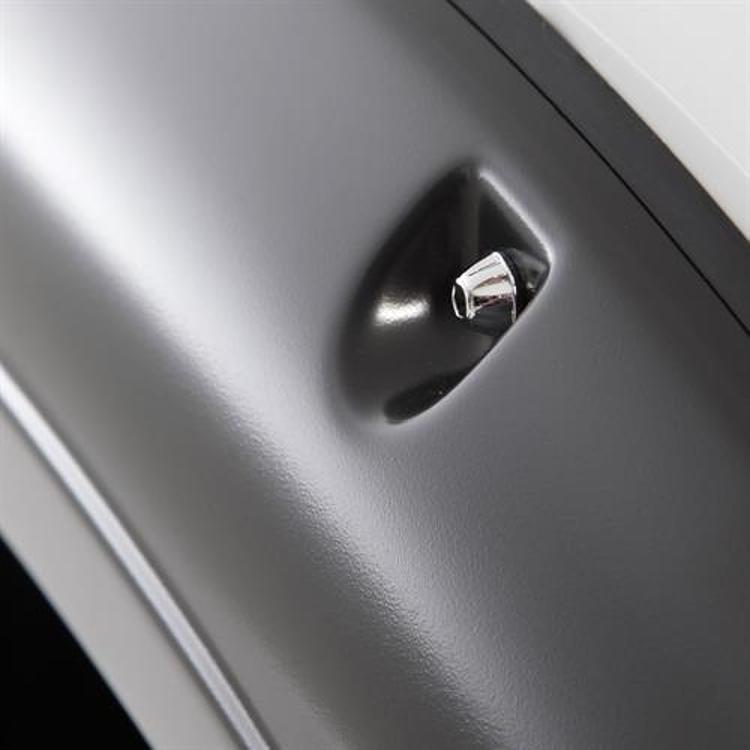

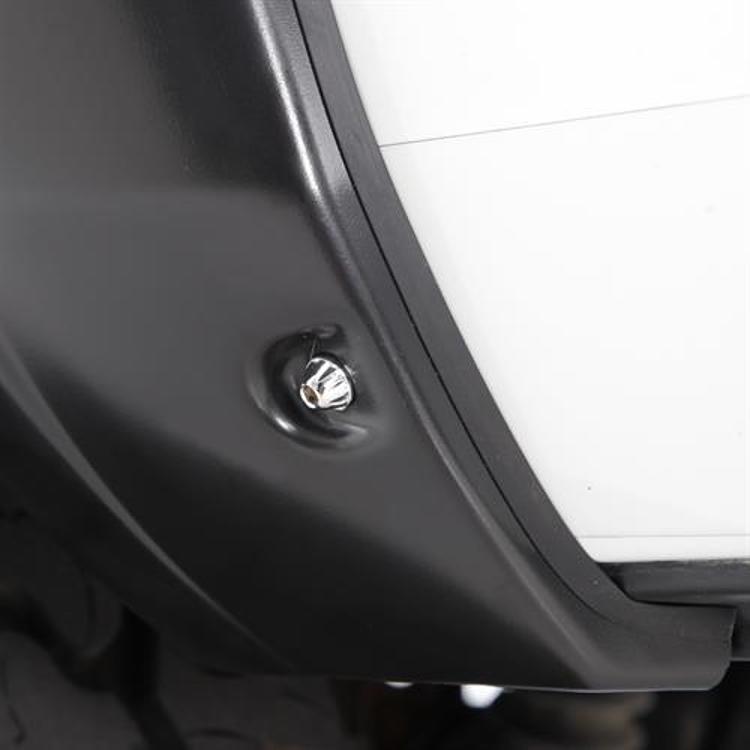

- Stainless steel rivets and rubber gasket for a tight fit
- No drill application, with all hardware included
Layers and paint prep
A composite flare relies on the bond between its outer and inner layers, so impacts and heat cycling are the main threats to long service. Look for hairline cracks at the edges and any separation along the seam. A loose or deformed edge can rattle, and a gap at the rivet points shows the flare has started to move.
Paint prep matters on lightly textured surfaces. Clean the flare with a degreaser, scuff it with a fine abrasive and use a primer made for plastic or composite parts before the color coat. Let each coat cure fully before fitting the flare to the truck. Masking the rivet holes keeps paint from filling them. Wheel offset and tire width can change how close the flare sits to the tire, so check clearance at full steering lock after installing the set.
- Inspect rivets after the first drives
- Clean road grime with mild soap
- Use a plastic-compatible primer
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 17395 |
| UPC | 631410125412 |
| Material | Acrylic top layer over ABS interior layer |
| Width/coverage | Up to 2 inches |
| Quantity | Set of four |
| Finish | Paintable |
| Fitment type | Direct fit |
| Installation | No drill, all hardware included |
Vehicle fitment
Confirm fit for your vehicle’s make, model and year before ordering.
Installation notes
The set installs without drilling, using the stainless steel rivets and rubber gasket in the kit. Paint is optional because the surface is lightly textured and paintable.
What’s included

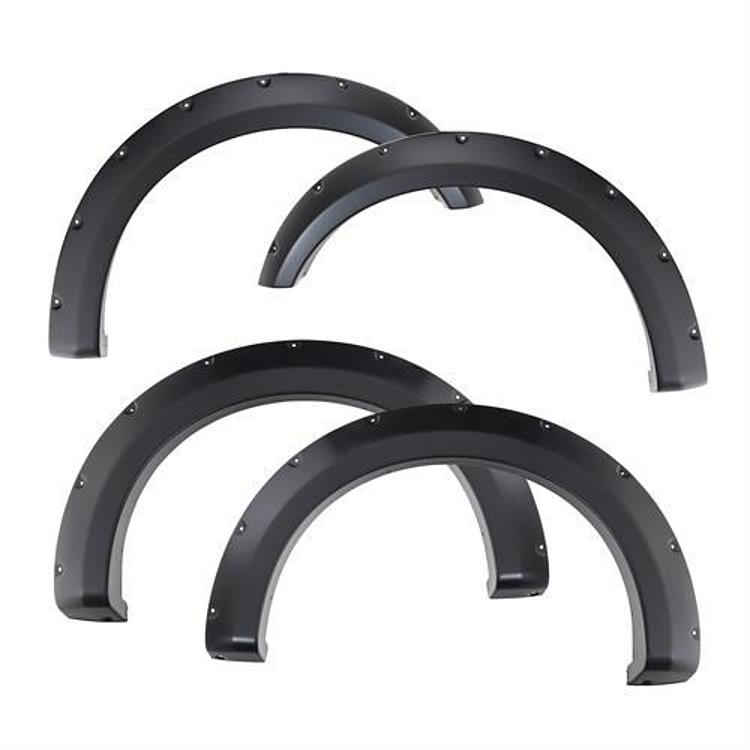

The set includes four flares with all mounting hardware, the stainless steel rivets and the rubber gasket.
