Overview

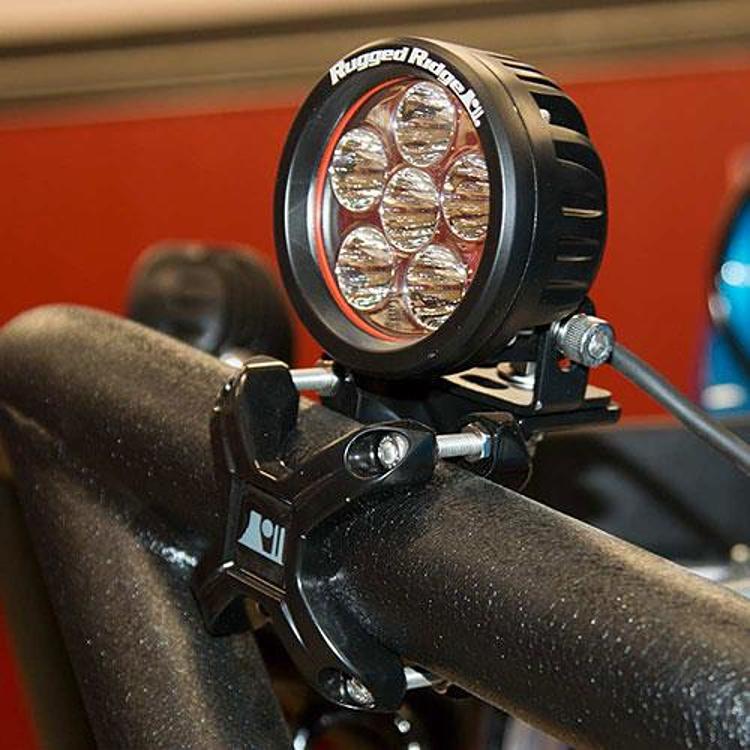

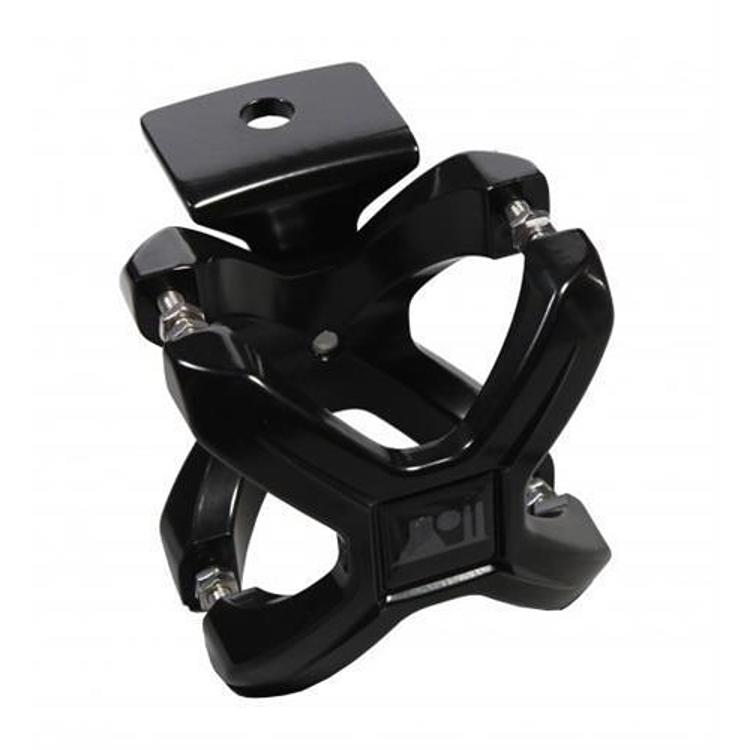

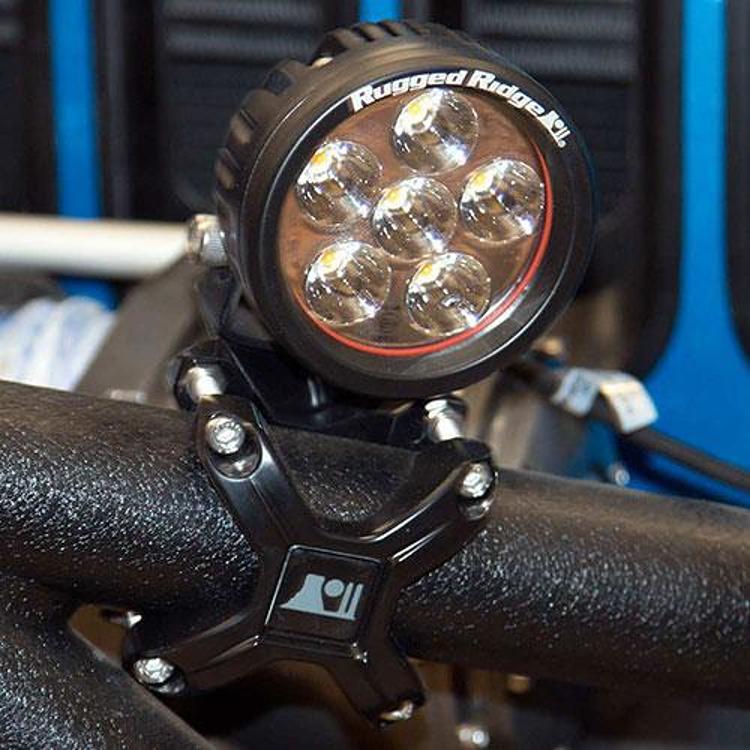

The Rugged Ridge 11030.01 is a patent pending X-Clamp mount in gloss black for lights, cameras, antennas and similar accessories on round tubing. It is not sized for a particular vehicle, since it grips round tubing on whatever it is mounted to.
The gloss black finish is one of three finishes in the X-Clamp line, which also includes textured black and silver. The bar size is 2 to 2.5 inch, and the tube range is 2.25 to 3 inch tubing.
Key features

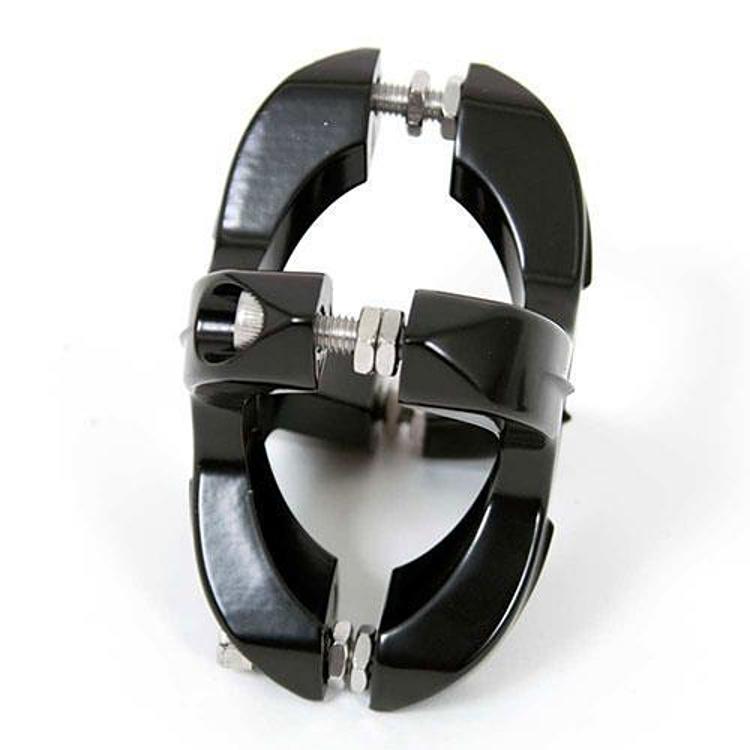

- Pivotal Fit Technology lets the clamp rotate to match the tube diameter
- The mounting bracket pivots to the position you want
- Mounts lights, cameras, antennas and other accessories
- Gloss black finish
- Patent pending design with listed patent numbers
Choosing a mount point
A clamp mount is only as steady as the tube it grips. Round tubing on a roll bar, bull bar or rack gives a solid base for a light or camera, but the tube should be straight, clean and free of loose paint where the jaws sit. Rotate the clamp so the jaws meet the tube squarely before tightening, then pivot the bracket to the angle you need.
Accessories add weight and wind load at highway speed, so choose a spot where the tube does not flex when you push on it. Route the accessory cable away from moving parts and sharp edges, and give the wire enough slack for suspension travel. Recheck the mount each time a new accessory is added.
- Clean the tube where the jaws sit
- Check for dents or rust before mounting
- Retighten fasteners after the first rough trail
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11030.01 |
| UPC | 804314254933 |
| Finish | Gloss black |
| Listed size | 2 to 2.5 inch bars |
| Tube range in description | 2.25 to 3 inch tubing |
| Patent numbers | 9,610,888; 9,145,084; D773,110 |
Vehicle fitment
Fitment is not vehicle-specific, because the clamp is designed for round tubing. Measure the tube diameter before choosing a clamp, since the bar size and tube range differ.
Installation notes
Rotate the clamp to fit the tube diameter, pivot the mounting bracket to the desired position and add the accessory. Measure the tube first, because the bar size and tube range overlap only between 2.25 and 2.5 inches.

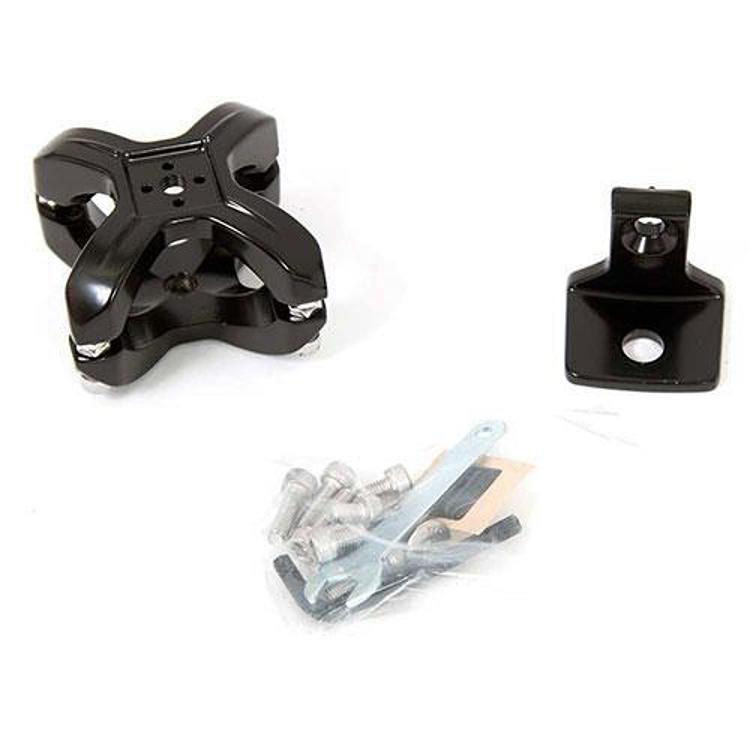

What’s included
The package is the gloss black X-Clamp.
Not included: Lights, cameras, antennas or other accessories you attach to the clamp.
