Rugged Ridge Square LED Light and X Clamp Kit – 15210.12

Rugged Ridge

Shop Rugged Ridge Offroad Racing on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Universal fit square LED light and X clamp kit, part number 15210.12
  • 3 inch square light rated at 16 watts
  • Black powder-coated aluminum housing with stainless steel hardware
  • Clear lens and a 0 to 10 inch size range

Description

Overview

Part number 15210.12 is a square LED light and X clamp kit built around a 3 inch, 16-watt driving light. It is a universal fit kit with universal mounting, so it is not tied to a particular vehicle.

Four CREE diodes provide the light, rated for a 30,000 hour life. The housing is black powder-coated aluminum with stainless steel hardware, and the kit has a clear lens and a 0 to 10 inch size range.

Key features

  • 3 inch square driving light rated at 16 watts
  • Four CREE diodes with a 30,000 hour life
  • Clear lens
  • Black powder-coated aluminum housing
  • Stainless steel hardware

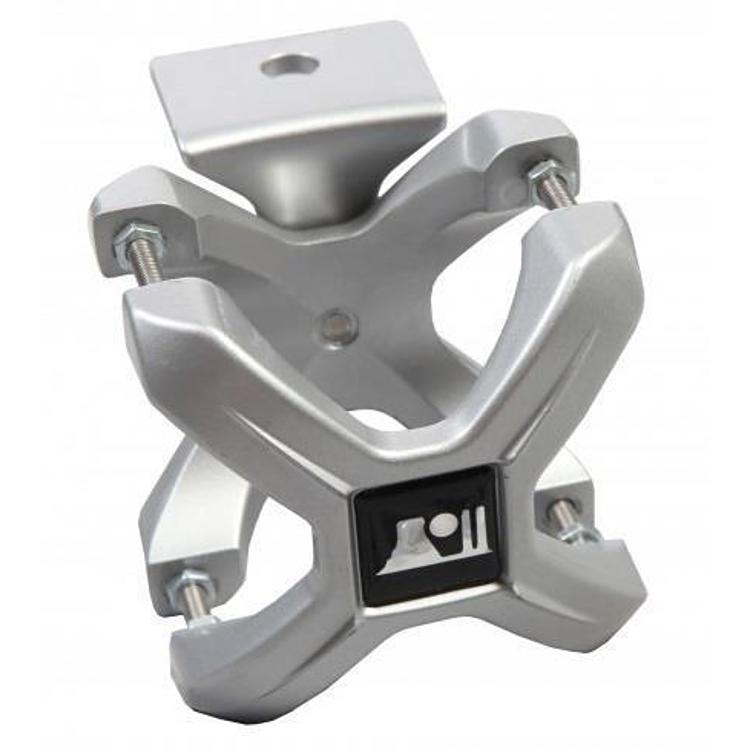

  • Universal mounting type with X clamp

Trail use and durability

A driving light mounted on an X clamp rides on the bar or tube, so every bump travels through the clamp. Powder-coated aluminum resists scratches better than bare metal, but rock strikes still chip the finish. Check the paint at the clamp contact points after each season of hard use.

Power is usually the second decision. A 16 watt LED draws a moderate load that a fused feed and relay handle well, and the wire should run with slack so suspension travel does not pull on the connectors. Keep the stainless fasteners clean and snug so the clamp holds its position.

  • Check the finish at clamp contact points
  • Keep wire slack for suspension travel
  • Use a fuse close to the battery

Specifications

Brand Rugged Ridge
Part number 15210.12
UPC 804314258412
Sold as Kit
Light type Driving light
Light shape Square
Light size 3 inch
Power 16 watts
LED Four CREE diodes
Rated life 30,000 hours
Lens color Clear
Housing Black powder-coated aluminum
Hardware Stainless steel
Mounting type Universal
Size range 0 to 10 inch

Vehicle fitment

This kit is a universal fit design, so no vehicle is tied to it. Use the 0 to 10 inch size range to judge whether the clamp fits the mounting point you have in mind.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

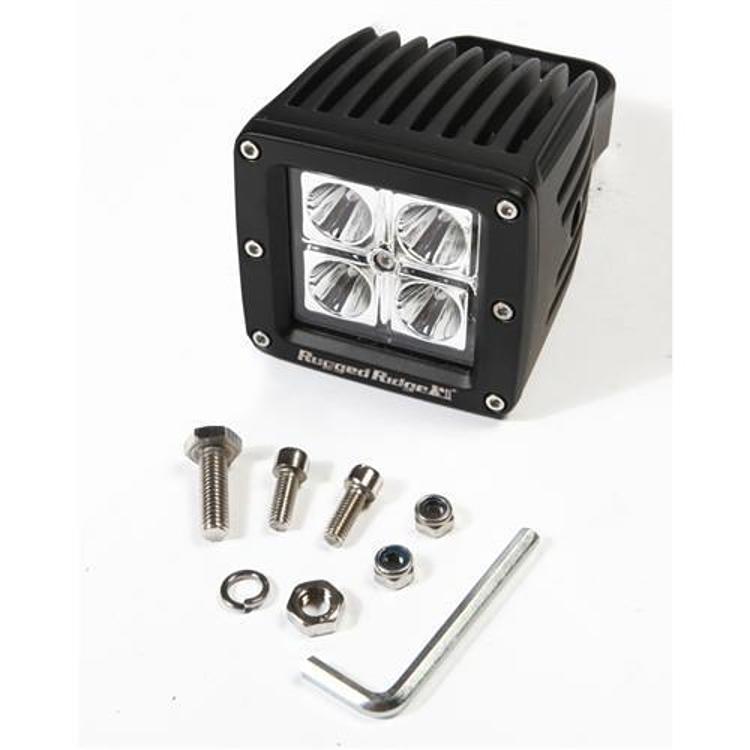

One square LED light with an X clamp, sold as a kit.

SKU: RUG15210.12 Categories: ,

Specification

Shipping weight 12.00 lbs
Package dimensions 16.00 × 5.00 × 5.00 in
brands

Questions & Answers

Will the Rugged Ridge 15210.12 fit my vehicle?

It is a universal fit kit, so no vehicle is tied to it. Confirm your vehicle's year, model and trim before ordering, and make sure the 0 to 10 inch range suits your mounting point.

What is the kit's wattage and housing?

The square light is rated at 16 watts. It has a black powder-coated aluminum housing, stainless steel hardware and a clear lens.

Does the kit have a stated lifespan?

Yes, the four CREE diodes are rated for a 30,000 hour life. For brightness, compare the 16 watt rating and diode count with other lights.

Do X clamps scratch the bar?

They can, especially on bare metal. A thin protective pad between the clamp and the tube, with firm rather than overtight tightening, reduces marking and keeps the mount secure.

What maintenance does an LED driving light need?

Keep the lens clean, check the clamp bolts on a regular schedule, and look at the wiring connectors for corrosion. LEDs have no filament to replace, so routine care centers on the mount and seals.
