Rugged Ridge Spartacus Performance 10

Rugged Ridge

Shop Rugged Ridge Front Bumpers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Universal-fit winch, line pull rating of 10500
  • 6.6 HP series wound motor with 218:1 planetary gears
  • 90 feet of 3/8 inch synthetic rope with hawse fairlead
  • 12-foot cable remote and solenoid box

Description

Overview

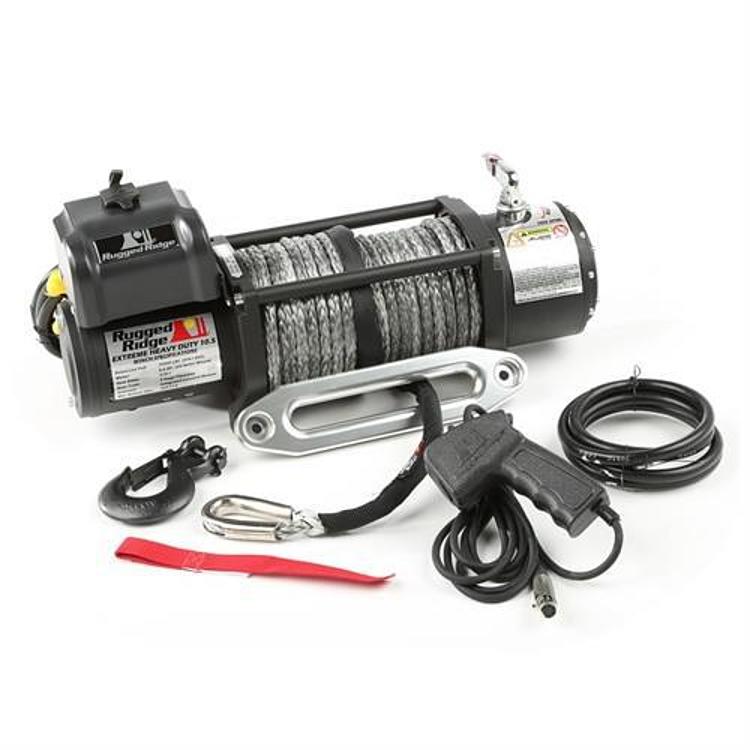

The Rugged Ridge Spartacus Performance 10 with synthetic rope (part number 15100.41) is a universal-fit winch with a 6.6 HP series wound motor, a 218:1 three-stage planetary gear box and a line pull rating of 10500. Instead of steel cable it carries 90 feet of 3/8 inch synthetic rope.

A latched hook ends the line, an aluminum hawse fairlead guides it onto the drum, and an automatic load-holding brake sits inside the drum. Stainless hardware is used on the body, and the 12-foot all-weather cable remote works with a solenoid box that can be mounted in several positions.

Key features

  • 6.6 HP series wound motor
  • 3-stage planetary gear box, 218:1 gear ratio
  • 90 feet of 3/8 inch synthetic rope with a latched hook

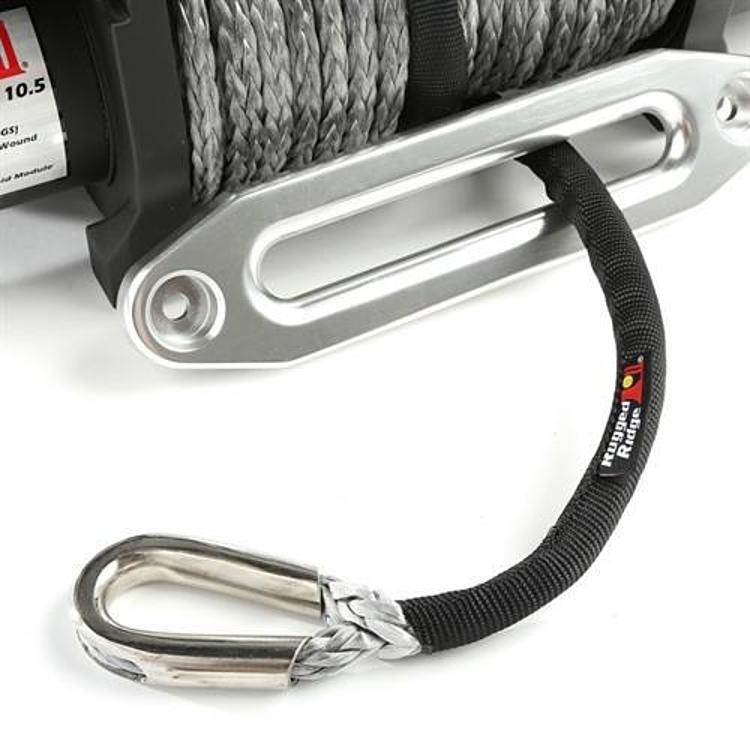

  • Aluminum hawse fairlead included

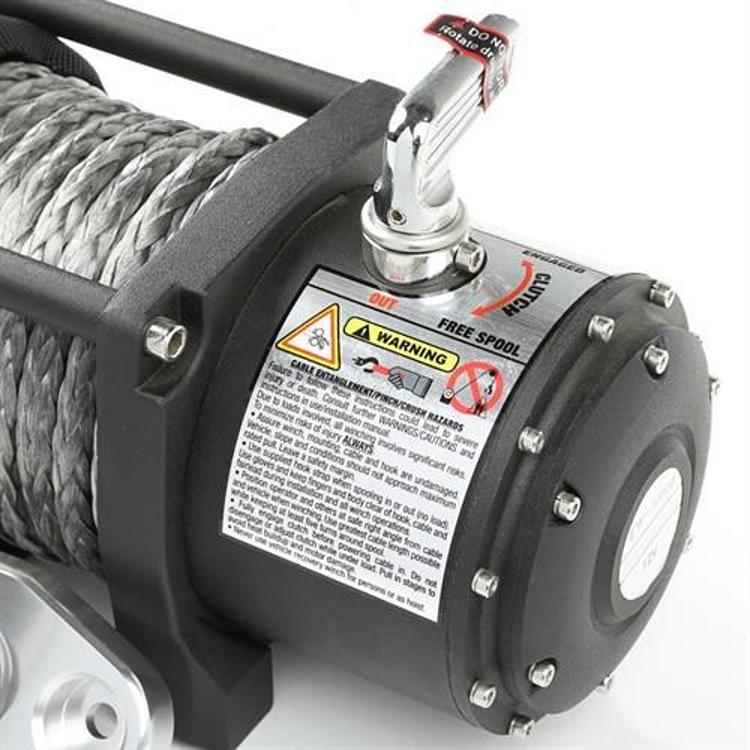

  • Automatic load-holding brake in the drum
  • Stainless hardware on the winch body
  • 12-foot all-weather remote with solenoid box

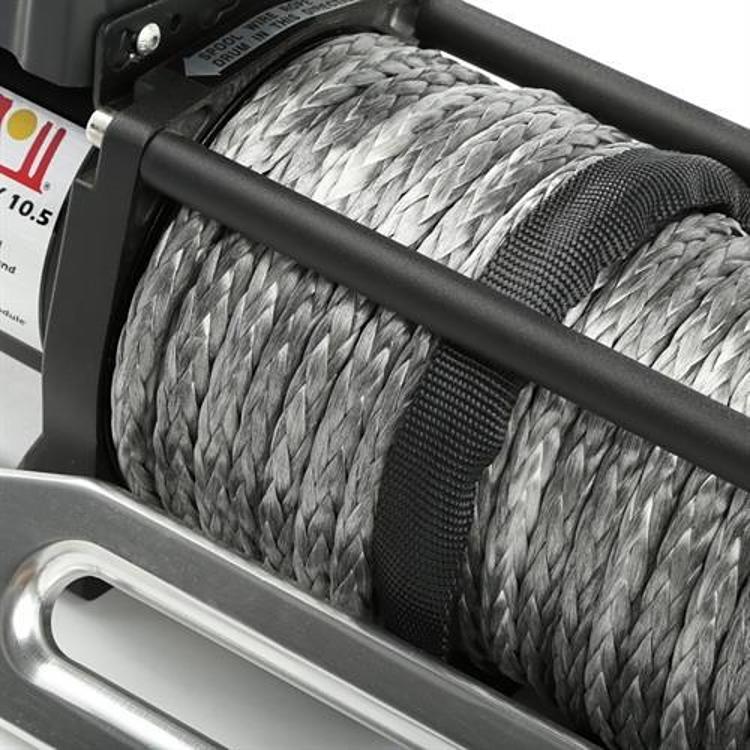

Synthetic rope care

Synthetic rope handles differently from steel cable and needs its own care. Keep it away from sharp edges, and do not let it drag over rocks or stumps, since abrasion is its main weakness. Avoid running over the rope with a vehicle, and keep it clean and dry before spooling it back onto the drum. Gloves help when handling the line, and a loose wrap should be fixed before the next pull.

Check the rope often. Fuzzy fibers, cut sheathing, glazed spots and a soft or flattened section all mean the line is wearing and should be inspected or replaced. Because the hawse fairlead is the guide here, make sure its surface is smooth and free of burrs that could snag the fibers.

  • Rope: inspect for cuts, fuzz and glazing
  • Fairlead: keep the hawse smooth and free of burrs
  • Drum: spool evenly under light tension

Specifications

Brand Rugged Ridge
Part number 15100.41
UPC 804314270452
Product type Winch
Line pull rating 10500

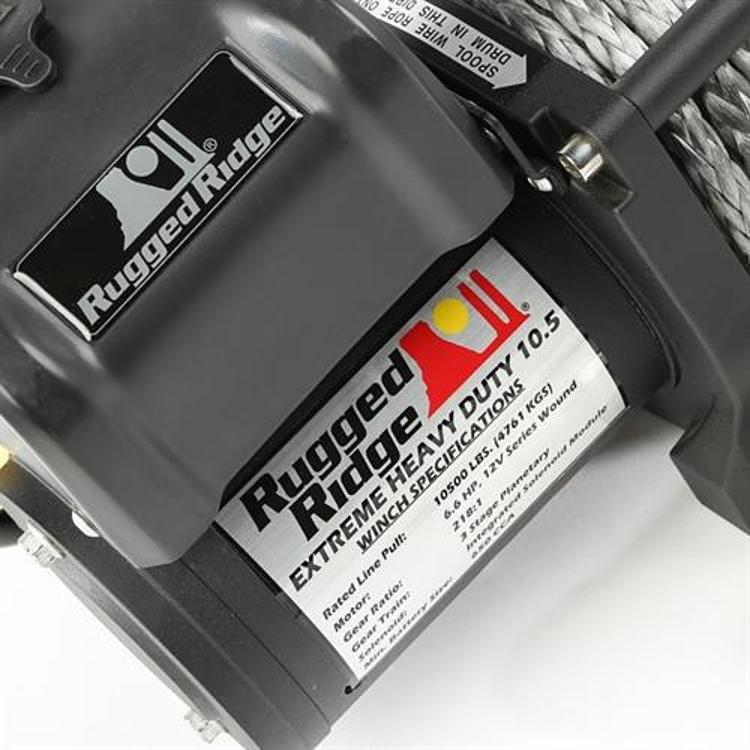

Motor 6.6 HP series wound
Gear box 3-stage planetary
Gear ratio 218:1
Line type Synthetic rope
Line length 90 ft
Line diameter 3/8 inch
Hook Latched hook
Fairlead Aluminum hawse
Brake Automatic load holding, in the drum
Remote control 12-foot lead with solenoid box
Fitment Universal

Vehicle fitment

It is a universal-fit winch, so it is not tied to a particular year, make or model.

The winch is not vehicle-specific, but the bumper or plate it bolts to has to suit it. Because it uses a hawse fairlead rather than a roller, check that your mount accepts that style. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The solenoid box can sit over the cable or over the motor and at several angles, which helps it fit behind or beside a winch bumper such as the Rugged Ridge XHD Bumper System. Synthetic rope is lighter than steel cable but is used with a hawse fairlead, which is the one supplied.

What’s included

  • Winch with 90 feet of 3/8 inch synthetic rope and latched hook
  • Aluminum hawse fairlead
  • 12-foot all-weather cable remote with solenoid box

Not included: a bumper or winch mounting plate.

SKU: RUG15100.41 Category:

Specification

Shipping weight 66.00 lbs
Package dimensions 26.00 × 13.00 × 10.00 in
brands

Questions & Answers

What rope does the Rugged Ridge 15100.41 winch use?

It uses 90 feet of 3/8 inch synthetic rope with a latched hook. The related 15100.4 Spartacus uses steel cable instead, so the two differ in line type.

Does the 15100.41 winch come with a fairlead?

Yes. It includes an aluminum hawse fairlead, which suits synthetic rope. A roller fairlead is not part of this version, so check what your bumper's fairlead opening accepts.

Is the Spartacus 15100.41 a universal winch?

Yes. It is a universal-fit winch, so it is not tied to a vehicle. Compatibility depends on the bumper or plate you plan to mount it on.

What is the line pull rating of the 15100.41?

The listed line pull rating is 10500, produced by a 6.6 HP series wound motor and a 218:1 gear ratio through a three-stage planetary gear box.

Can synthetic rope be swapped onto a steel cable winch?

Usually not without changes. The fairlead must suit the rope type, and the drum and mount should be checked for the new line. Keep synthetic rope and steel cable separate so each is run with the guide it was designed for.
