Overview

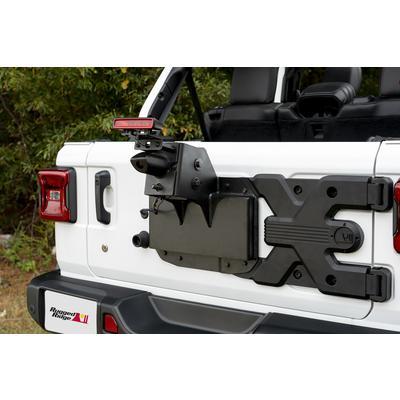

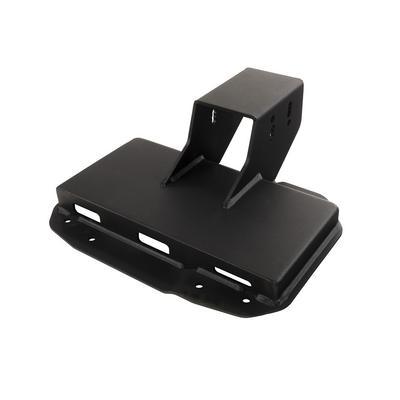

The Rugged Ridge Spartacus HD Tire Carrier Wheel Mount (part RUG11546.57) is a fully welded steel spare tire mount for the Jeep Wrangler JL, covering 2018 to 2026 model years. It works with the Spartacus HD Tire Carrier Hinge Casting to make up a complete rear tire carrier.
Adjustable mounting brackets let you angle the spare, which eases access to the rear lift gate and can gain extra bumper clearance. A black powder coat finish is applied for corrosion resistance and a clean look.
Key features
- Fully welded steel construction that spreads weight across a broad footprint
- Adjustable mounting brackets to angle the spare for lift gate access
- Extra bumper clearance when the spare is angled
- Black powder coat finish for corrosion resistance
- Brackets to reposition back-up cameras and third brake lights
- Bolt-on installation with no drilling required
Spare clearance and lift gate travel
A spare tire carrier changes how the rear of the vehicle moves, so the spare position matters. Angling the tire opens lift gate access and can add bumper clearance, but the exact result depends on the tire size and how far the spare is angled.
After installing, open and close the lift gate slowly with the spare in place to confirm it clears. Check the tire against any bumper or sensor brackets, and make sure the spare cannot strike the gate glass when the lift gate swings. Off-road, a heavy spare adds weight high at the rear, so keep the tire properly inflated and the mount tight.
- Check lift gate travel with the spare mounted
- Confirm clearance around the bumper and sensors
- Re-check the bolts after the first few drives
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | RUG11546.57 |
| Product type | Spare tire carrier wheel mount (Spartacus HD) |
| Construction | Fully welded steel |
| Finish | Black powder coat |
| Mounting | Bolt-on, no drilling required |
| Works with | Spartacus HD Tire Carrier Hinge Casting (11546.56) |
Vehicle fitment
It is made for the Jeep Wrangler JL, 2018 to 2026 model years.
It is made for the Wrangler JL only, not for earlier Wrangler JK or LJ models or other Jeep models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installation is bolt-on with no drilling. Because the brackets angle the spare, check spare clearance, bumper clearance and lift gate travel after installation.
What’s included

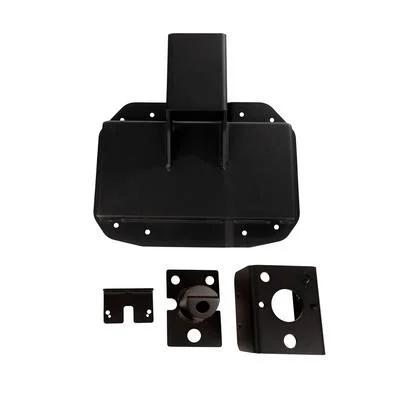

The mount comes with brackets to reposition back-up cameras and third brake lights.
Not included: the Spartacus HD Tire Carrier Hinge Casting (11546.56), a separate item that the mount is meant to pair with.
