Poison Spyder Customs Frame Mounted Tire Carrier – 19-62-030TP1

Poison Spyder Customs

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Frame mounted spare tire carrier for the 2019 Jeep Wrangler JL
  • Single-action opening, tethered to the tailgate
  • Adjustable mount for tires up to 40 inches; five bolt patterns
  • SpyderShell Armor Coat finish with a 5-year warranty

Description

Overview

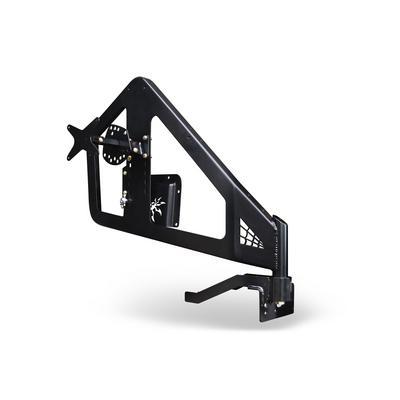

The Poison Spyder Customs Frame Mounted Tire Carrier, part number 19-62-030TP1, is a swing-out spare tire carrier for the Jeep Wrangler JL that bolts directly to the frame. It fits the 2019 Wrangler JL, in 2-door and 4-door Unlimited versions.

Poison Spyder says frame mounting removes the weight and stress of a large, heavy spare from the tailgate, body tub and bumper. A triangulated mounting bracket secures the carrier to the frame rail and rear crossmember in three planes. The carrier is tethered to the tailgate rather than latching to itself, so one hand opens the tailgate and carrier together.

The pivot is concealed below the rear bumper deck and tucks in closer to the body for better trail clearance. It uses a CNC machined spindle and housing with a pair of Timken tapered roller bearings, and spindle seals keep lubrication in and dirt and water out.

Key features

  • Frame mounted with a triangulated bracket on the frame rail and rear crossmember
  • Single-action opening: the carrier is tethered to the tailgate and opens with it
  • Concealed heavy-duty pivot with Timken tapered roller bearings
  • CNC laser cut, brake-formed plate steel, welded in an assembly fixture
  • Adjustable up and down and in and out for tires up to 40 inches
  • Wheel plate for 5×5, 5×4.5, 5×5.5, 6×5.5 and 8×6.5 bolt patterns
  • License plate mount at the center of the spare, and tie-in loops for wiring
  • SpyderShell Armor Coat finish with a 5-year warranty

Keeping the carrier in service

A spare tire on a tailgate pulls down on the hinges and can flex the tailgate over time. Moving the spare to a frame mount takes that load off the body, but the pivot and its bearings then carry the weight of the tire on every swing. Keep the pivot clean and lubricated so the bearings and seals keep working as designed.

Check the frame bracket bolts and the carrier’s mounting points after the first few trail trips, since the tire moves with every bump. Keep the tie-in loops and license plate wiring clear of moving parts, and recheck the tire’s lug nuts after rotation. A spare that is loosely mounted can rattle or shift on rough ground.

  • Lubricate the pivot on a regular schedule
  • Check frame bracket bolts after rough trail use

Specifications

Brand Poison Spyder Customs
Part number 19-62-030TP1
Product type Frame mounted tire carrier, Jeep JL
Mount location Frame
Maximum tire size 40 inches
Wheel bolt patterns 5×5 (JL stock), 5×4.5, 5×5.5, 6×5.5 and 8×6.5
Construction CNC laser cut, brake-formed plate steel
Bearings Timken tapered roller bearings with spindle seals
Finish SpyderShell Armor Coat, semi-gloss black
Warranty 5-year on the finish
Fit type Direct fit

Vehicle fitment

It fits the 2019 Jeep Wrangler (JL), including Sport, Sport S, Rubicon and the Unlimited Sport, Sport S, Sahara and Rubicon 4-door versions. It is designed for the JL and works with Poison Spyder Bruizer and Crawler series rear bumpers for that Wrangler.

Other model years of the JL and earlier Wranglers such as the JK are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The carrier can be added later to a Poison Spyder Bruizer or Crawler rear bumper without replacing or altering the bumper, although the bumper has to be removed during installation. The carrier can also be installed without any bumper at all.

The assembly includes tie-in loops along the cable-way for the wiring of a license plate light, third brake light or backup camera. Poison Spyder’s License Plate Delete Cover and LED License Plate and 3rd Brake Light are available separately.

What’s included

The frame mounted tire carrier with its license plate mount.

Not included: the optional Hi-Lift jack mount, the License Plate Delete Cover and the LED License Plate and 3rd Brake Light, each available separately.

Fitment

VehicleYearsTrims
Jeep Wrangler (JL)2019Rubicon (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Jeep does the Poison Spyder 19-62-030TP1 fit?

It fits the 2019 Jeep Wrangler JL in 2-door and 4-door versions. It is a JL carrier and is not designed for the JK.

What tire sizes does the Poison Spyder JL carrier handle?

The tire mount adjusts up and down and in and out for tires up to 40 inches, and the wheel plate covers 5x5, 5x4.5, 5x5.5, 6x5.5 and 8x6.5 bolt patterns.

Can the 19-62-030TP1 be used with a Poison Spyder bumper?

Yes. It is compatible with the Bruizer and Crawler series rear bumpers for the JL, and it can also be installed without any bumper. The bumper must be removed during installation.

What is single-action opening on this carrier?

The carrier is tethered to the tailgate rather than latching to itself, so one hand opens the tailgate and the carrier together, and a tie-rod assembly keeps them aligned.

How often should the carrier pivot be serviced?

Inspect and lubricate the pivot after each rough trail trip or every few months of regular use. Look for grit, water in the seals and play in the swing arm, and address any of those before they wear the bearings.
