Overview

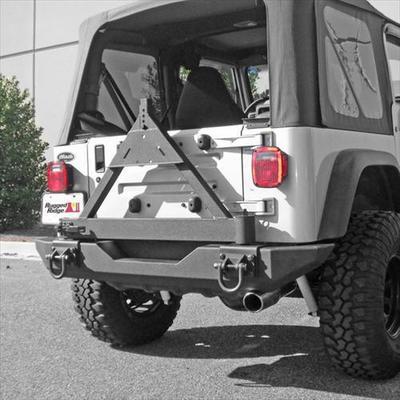

The Rugged Ridge Rear XHD Bumper Tire Carrier, part number 11546.42, is a bumper-mounted spare tire carrier for the Rugged Ridge XHD rear bumper on 1976–2006 Jeeps. It mounts up to a 35 inch tire on that bumper.
Carrying a spare safely
A bumper-mounted spare puts the tire’s weight on the rear bumper and its mounting bolts, so the connection needs regular checks. Before each trip, confirm that the carrier bolts are snug and that the spare is secured with its lock or retaining hardware. Off-road, a heavy tire swings with the body on rough ground, which can work fasteners loose over time.
Tire size matters for both clearance and handling. A larger spare changes the rolling diameter and may rub on the fender or body when turning, so test clearance at full lock after mounting. Check tire pressure on the spare as well, since a flat spare is no help on the trail. Inspect the sidewalls for cuts or cracking before storing it on the carrier.
- Re-torque carrier bolts after the first few trail runs
- Check lock or retaining hardware before each trip
- Test turning clearance after any tire change
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11546.42 |
| Product type | Tire carrier for XHD rear bumper |
| Mount location | Bumper mount |
| Maximum tire size | 35 inches |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1976–1983 Jeep CJ5, 1976–1986 CJ7, 1981–1985 Scrambler, 1997–2006 Wrangler (TJ) and 1987–1995 Wrangler (YJ). It mounts to the Rugged Ridge XHD Rear Bumper.
The 2004–2006 Wrangler Unlimited (LJ), the JK and JL Wranglers are not on this list. Confirm your vehicle’s year, model and trim before ordering.
