  • Rugged Ridge receiver hitch kit, part number 11580.62, for the rear of 2- and 4-door Jeep models
  • Includes 2-inch receiver hitch, plug-in wiring harness, hitch pin and D-ring shackle
  • D-shackle has a 9,500lbs pulling capacity
  • Bolts directly to factory mounting points with a one-piece welded, black powder-coat build

Description

Overview

The Rugged Ridge 11580.62 is a rear receiver hitch kit with a D-shackle for 2- and 4-door Jeep models. The kit combines a durable powder-coated 2-inch receiver hitch with a plug-in wiring harness, a hitch pin and a heavy-duty D-ring shackle, giving the rear of the vehicle a sturdy attachment point for towing and recovery.

The hitch bolts directly to the factory mounting points on the rear of the vehicle. It is a one-piece welded assembly with a cutout for the factory wiring harness mounting, and the kit suits owners who want a rear receiver and a recovery point in one package.

Key features

  • Bolts directly to the factory mounting points on the rear of the vehicle
  • Cutout for factory wiring harness mounting
  • Durable black powder coat finish

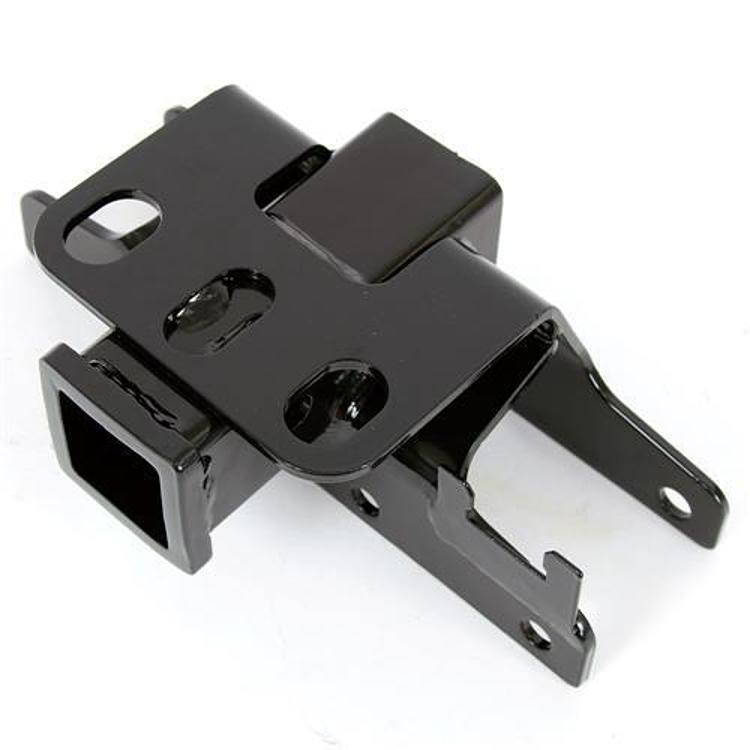

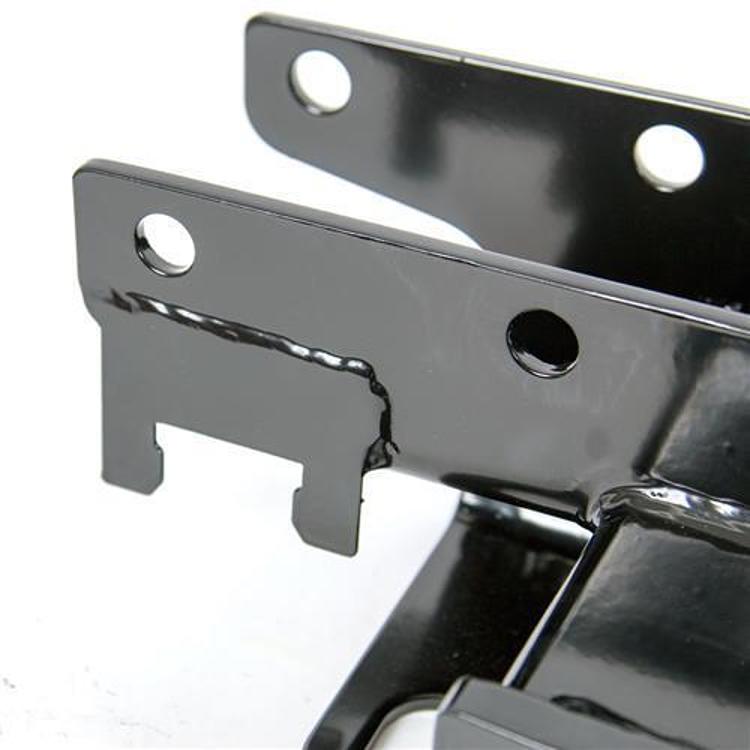

  • One-piece welded assembly for added strength

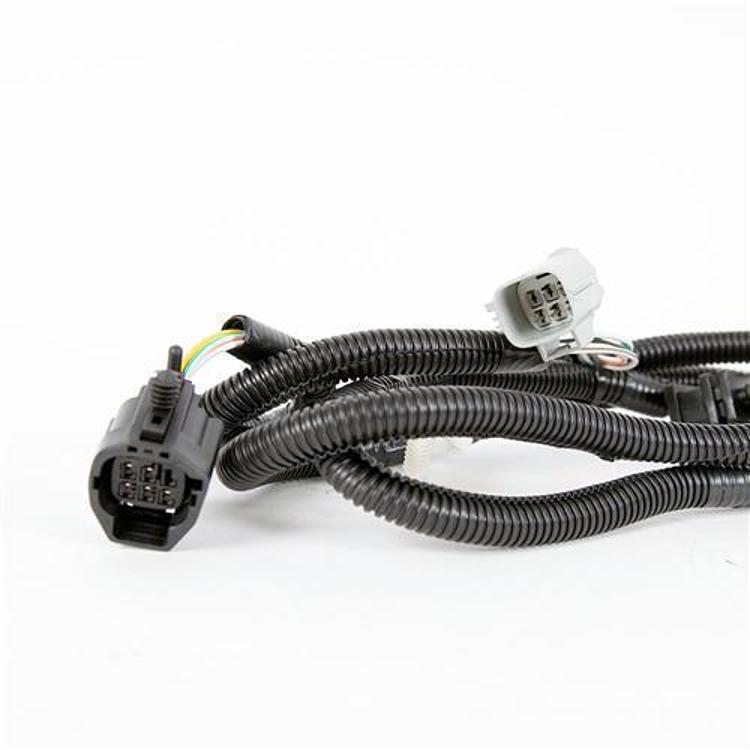

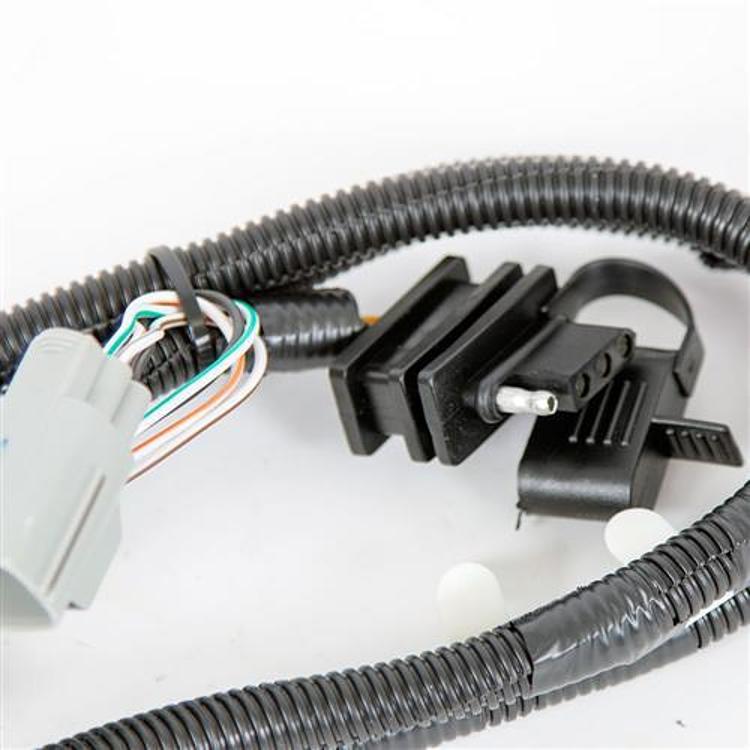

  • Plug-in wiring harness included
  • D-shackle with a 9,500lbs pulling capacity

Using a D-ring for recovery

A D-ring shackle is a rated attachment point for recovery straps and tow lines, and it is designed to be used in line with the strap rather than at an angle that loads the pin. Connect with a shackle or strap rated for the load, and keep the pull straight to avoid side loading. Before a recovery, check the pin, the bolt and the mounting points for cracks or looseness, and avoid using a damaged point.

Recovery points are often paired with a winch, a snatch block or a tow strap with a recovery-rated loop. Match each piece to the lowest rating in the chain, since a shackle is only as strong as its weakest link. Store the shackle clean and dry, and lubricate the pin threads a couple of times a year so the hardware turns freely.

  • Inspect the D-ring pin for bends or wear before use
  • Use a strap or line with a matching rating
  • Keep recovery gear stored where it stays dry

Specifications

Brand Rugged Ridge
Part number 11580.62
UPC 804314269852
Receiver size 2 inches x 2 inches
Position Rear
Weight class Class II
Roll pan Does not fit with roll pan
Finish Durable black powder coat
D-shackle pulling capacity 9,500lbs
Warranty 5 year limited

Vehicle fitment

The kit fits 2- and 4-door Jeep models and bolts to the factory mounting points at the rear. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering. The kit does not fit with a roll pan.

Installation notes

Because the hitch uses factory mounting points and a cutout for the factory wiring harness, check that both match your vehicle before starting. Disconnect the battery before working on the trailer wiring.

What’s included

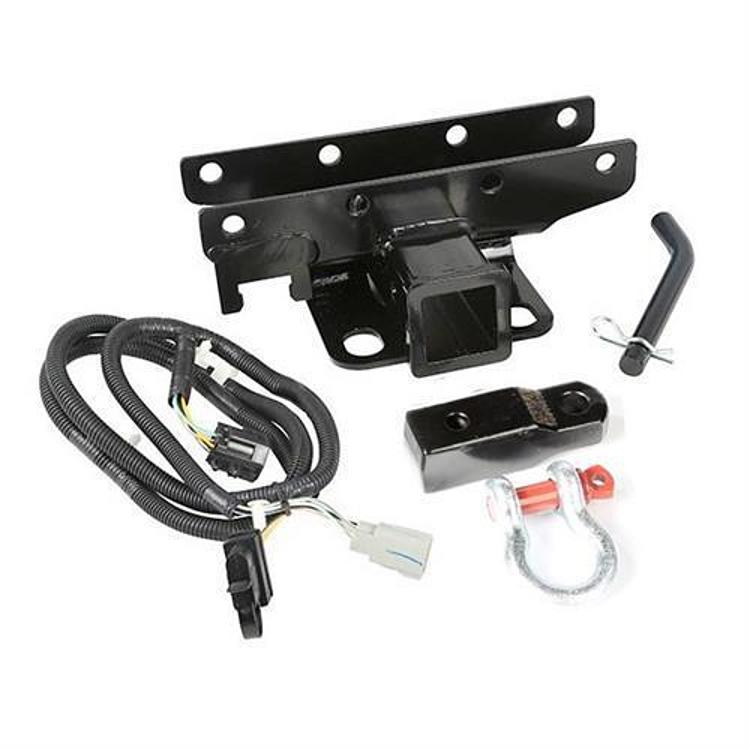

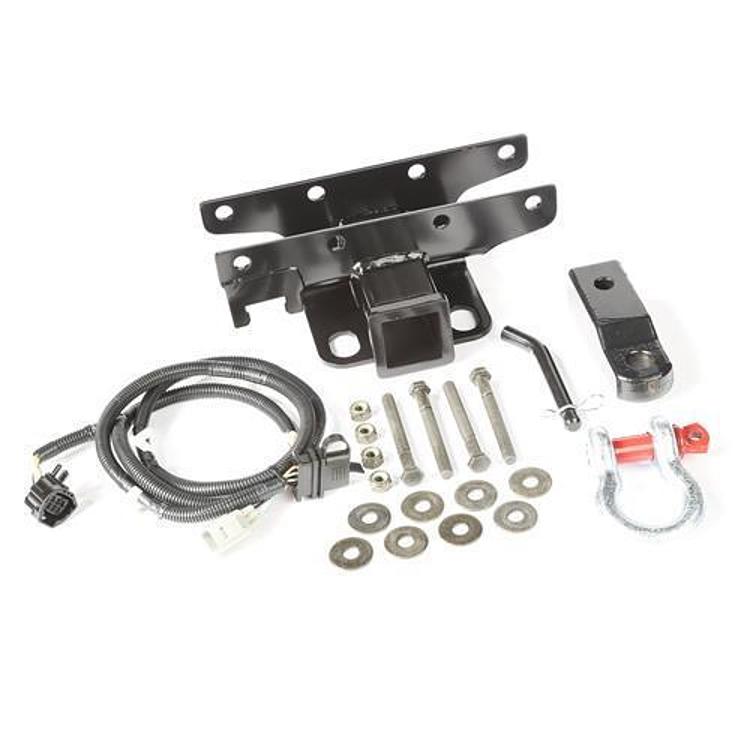

The kit includes a durable powder-coated 2-inch receiver hitch, wiring harness, hitch pin and heavy-duty D-shackle assembly.

SKU: RUG11580.62 Category:

Specification

Shipping weight 14.00 lbs
Package dimensions 14.00 × 9.00 × 6.00 in
brands

Questions & Answers

Does the Rugged Ridge 11580.62 fit a 4-door Jeep?

Yes, the kit fits 2- and 4-door Jeep models that have factory mounting points at the rear. Confirm the year, model and trim against your vehicle before installing.

What does the D-shackle do on this hitch kit?

The D-ring shackle assembly gives the rear of the vehicle a sturdy attachment point for recovery, such as helping another vehicle get unstuck. Rugged Ridge gives it a 9,500lbs pulling capacity, and it comes with the receiver hitch kit.

Does the kit include the wiring harness and hitch pin?

Yes. The kit includes a plug-in wiring harness and a hitch pin along with the 2-inch receiver hitch and D-ring shackle. The kit does not fit with a roll pan, so check your bumper setup first.

How do I tell if the receiver hitch needs replacing?

Replace the hitch if the welds crack, the tube bends, or the mounting points show movement or rust-through. Look for play when the hitch is pushed by hand and for gaps where bolts meet the frame. A damaged hitch should be replaced rather than repaired, since repairs rarely restore the original rating.
