Overview

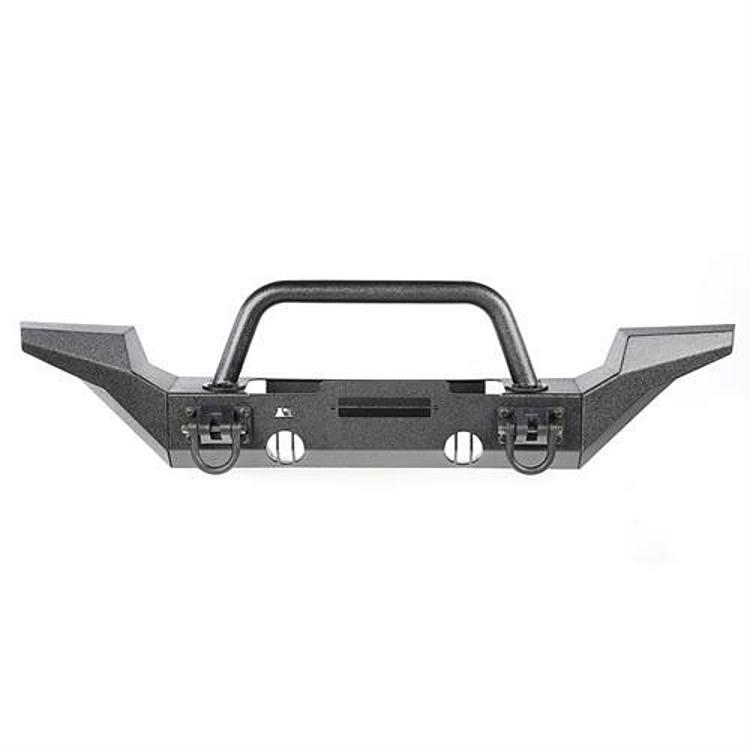

The Rugged Ridge 11540.52 is an XHD front bumper kit for the 2007-2018 Jeep Wrangler JK. It includes the XHD front winch mount bumper, a hoop over-rider, D-rings and high clearance bumper ends.
The kit is built of 4mm thick steel with factory fog light cut outs and a powder-coated finish. The combination suits a custom bumper look, and the high clearance ends give the corners a different shape from the standard ends used in kit 11540.5.
The powder-coated finish is built for heavy-duty use. High clearance ends change the shape of the bumper corners compared with the standard ends in kit 11540.5, while the hoop, D-rings and winch mount bumper are the same XHD parts.
Key features
- XHD front winch mount bumper
- Hoop over-rider

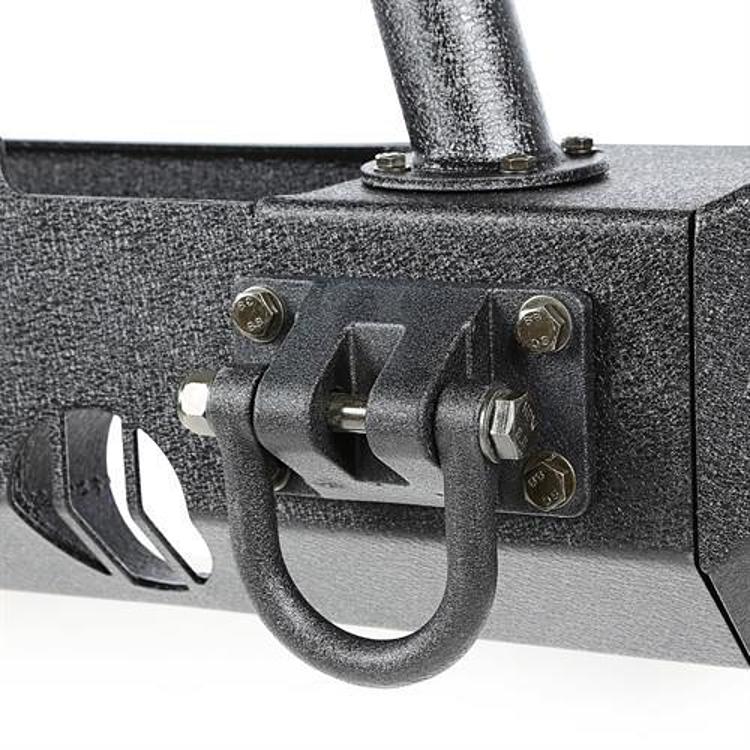

- D-rings included

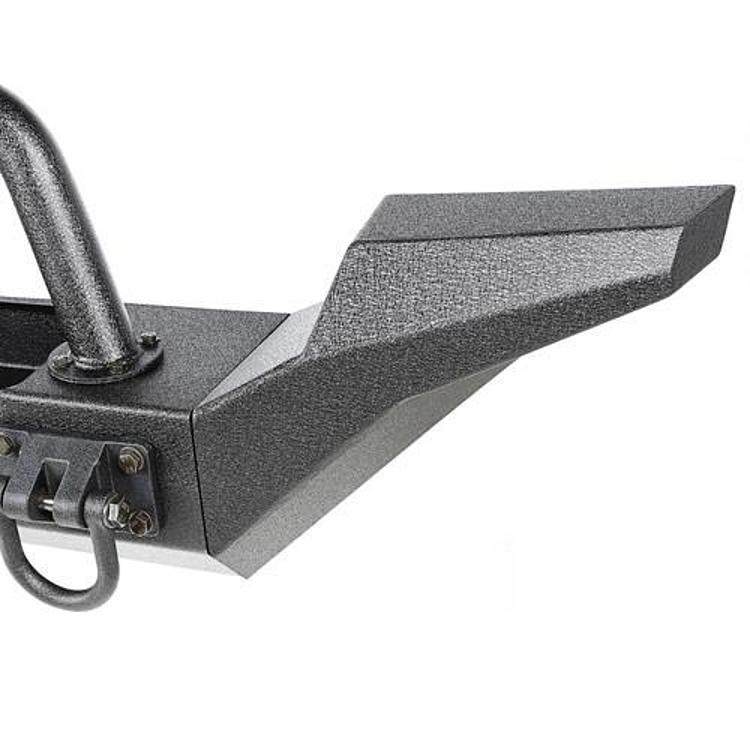

- High clearance bumper ends
- 4mm thick steel
- Factory fog light cut outs
- Powder-coated construction
Choosing high clearance ends
High clearance ends change how the bumper sits at the corners, which can matter when the Jeep has larger tires or a lift. Before ordering, measure the space between the bumper corners and the fenders, and check that the ends will clear the tire at full steering lock. Standard ends sit closer to the body, so the choice comes down to what the vehicle needs.
Bumper ends often come off during repairs or are swapped when the look changes. Inspect the mounting brackets and welds on any used end, and confirm the bolt pattern matches the frame before bolting it up. Light mounts and winch brackets carry added weight, so tighten them and recheck after the first drives. Fog lamp wiring should also be routed clear of the ends.
- Measure tire clearance at full steering lock
- Recheck bracket bolts after the first drives
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11540.52 |
| UPC | 700007577211 |
| Product type | XHD front bumper kit with high clearance ends |
| Position | Front |
| Finish | Powder coat |
| Material | Steel, 4mm thick |
| Width | Full |

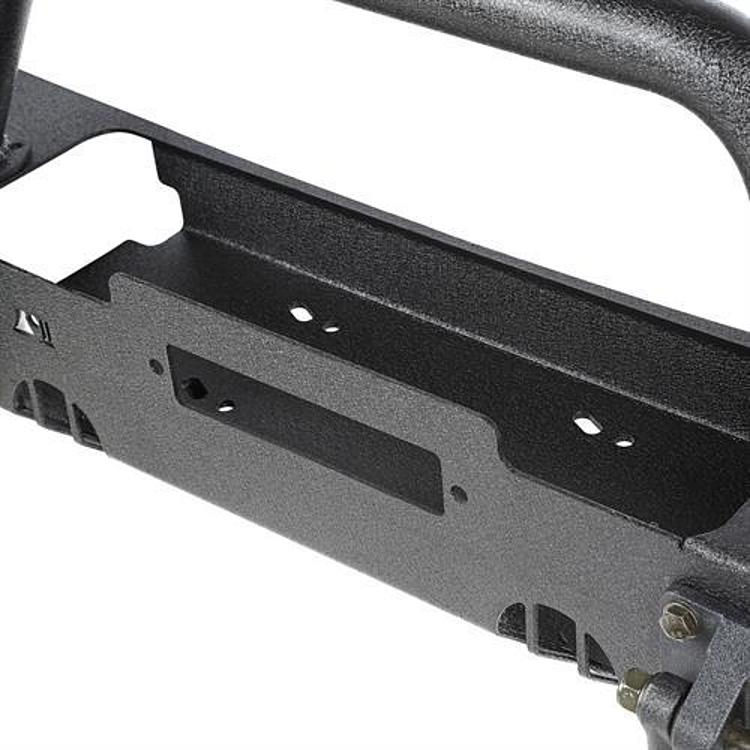

| Winch mount | Included |
| Light mounts | Included |
| D-ring mount | Included |
| Fit type | Direct fit |
Vehicle fitment
The 11540.52 fits 2007-2018 Jeep Wrangler JK models, in both 2-door and 4-door versions.
Other Wrangler generations are not in the list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
XHD front winch mount bumper, hoop over-rider, D-rings and high clearance bumper ends.
Not included: Winch and lights.
