Overview

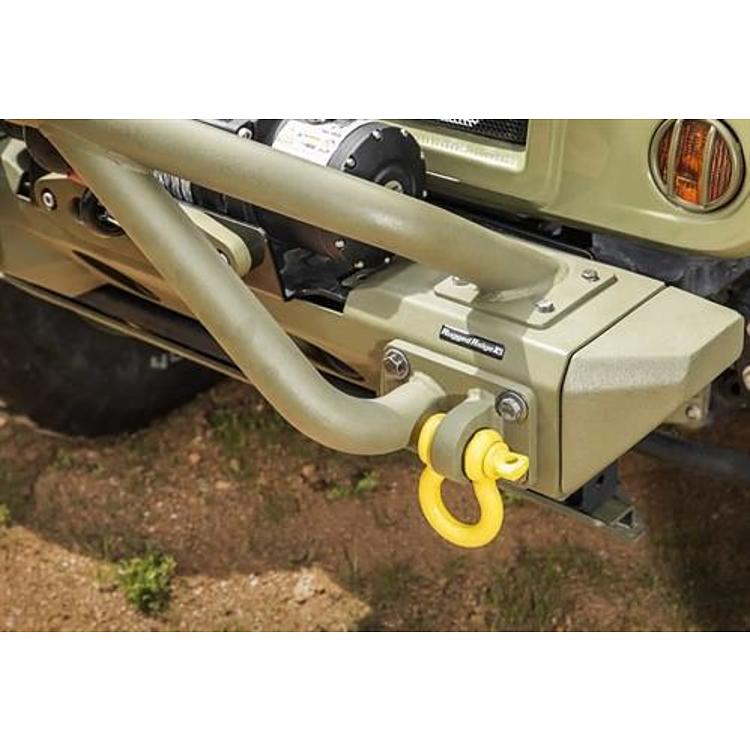

Rugged Ridge’s yellow powder-coat D-Ring Set, part number 11235.15, is a set of two 7/8-inch D-ring shackles rated at 13,500 lbs working load limit. The natural steel is coated yellow for a colorful look, and the shackles are presented for connecting chains, cables, ropes and straps.
The shackles fit many recovery and towing tasks on the trail, connecting chains, cables, ropes and straps. They are universal fit, so match the 13,500 lbs rating and 7/8-inch size to your load.
Key features
- Set of two shackles
- 7/8-inch D-ring shackles
- 13,500 lbs working load limit (WLL)
- Yellow powder coat over natural steel
- Suited to chains, cables, ropes and straps
- Universal fit
Choosing shackle size and rating
Pin diameter and bow size work together to set how a shackle handles a pull. A larger shackle can make a stronger connection, but it also has to fit the eye of the strap, chain or hitch it joins. Before buying, check that the bow opening clears the hardware on both ends and that the working load limit suits the heaviest pull you expect, including the shock load from a snatch recovery.
Keep the shackle in line with the pull whenever possible. Side loading reduces capacity, and a shackle loaded across its pin is not the same as one loaded straight through the bow. Tighten the pin fully before each pull, then recheck it after the first few trail runs because vibration can back it out.
- Match the bow size to the strap or chain end
- Keep the pin fully threaded and seated
- Use a rated shackle at every link in the rig
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11235.15 |
| UPC | 804314288785 |
| Quantity | Set of two |
| Size | 7/8-inch |
| Working load limit | 13,500 lbs |
| Finish | Yellow powder coat |
| Fitment | Universal fit |
Vehicle fitment
The set is universal fit and not vehicle-specific. Size and rating are the main points to check against the job.
No year, make or model is named. Confirm your vehicle’s year, model and trim before ordering.
What’s included
A set of two D-ring shackles. No pins or extra hardware are mentioned.
