Overview

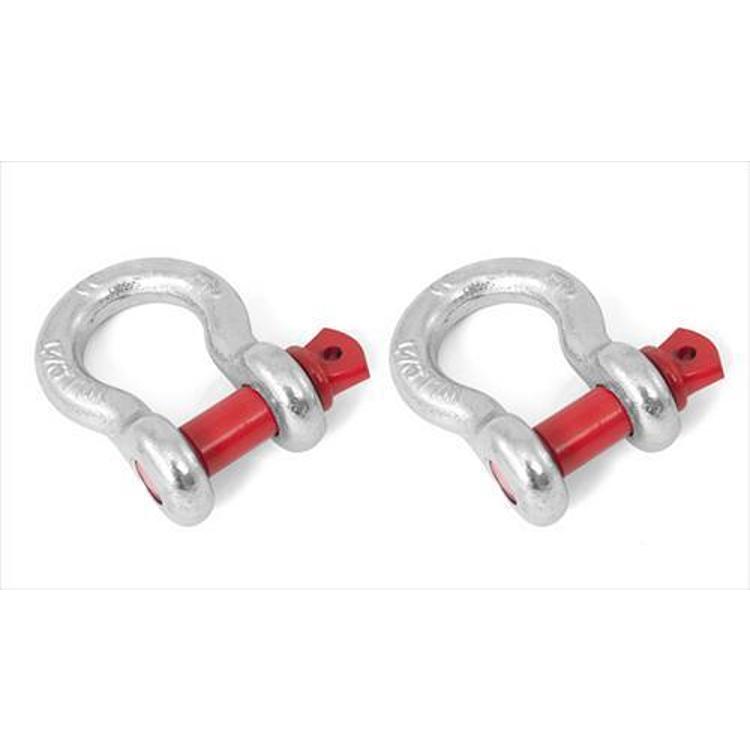

The Rugged Ridge D-Rings, part number 11235.03, are heavy-duty zinc-plated D-rings made from rigid cast steel. They have a 1-inch center pin and a 13,500 lb working load limit.
They are universal fit and suited to most recovery operations. Confirm the quantity you receive before ordering.
Key features
- Heavy-duty zinc-plated finish
- Rigid cast steel construction
- 1-inch center pin
- 13,500 lb working load limit
- Universal fit, not tied to one vehicle
Rigging and recovery use
A D-ring is only as useful as the connection behind it. Attach the ring to a rated recovery point, and use a strap or shackle that matches the load path. Pulling at a sharp angle loads the ring sideways, so keep lines as straight as the setup allows. Mount the ring so the pin seats fully and the ring can turn freely.
Rigid cast steel resists bending better than thin stamped metal, but it can still crack under shock loads. Inspect the ring and pin before each trip, and look for cracks, bends or heavy pitting. Zinc plating helps against rust, though scratches expose bare metal, so touch them up before corrosion spreads. Store the rings dry and away from road salt.
- Use rated recovery points only
- Keep pulls as straight as possible
- Replace any ring that shows deformation
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11235.03 |
| UPC | 804314227159 |
| Material | Rigid cast steel |
| Finish | Zinc coated (zinc plated) |
| Center pin | 1-inch |
| Working load limit | 13,500 lbs |
| Fitment | Universal Fit |
Vehicle fitment
They are universal fit, so they are not tied to one vehicle. Confirm the 1-inch center pin suits your bracket or mount before recovery use.
What’s included
The D-rings, with the quantity not stated.
