Rugged Ridge Braided Brake Hose

Rugged Ridge

Shop Jeep CJ5 Brake Hoses on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1974 to 1975 Jeep CJ5 and CJ6 with 11 inch rear drum brakes
  • Braided stainless rear hose pair
  • 4 inches longer than OE
  • Front hoses are part 16734.03

Description

Overview

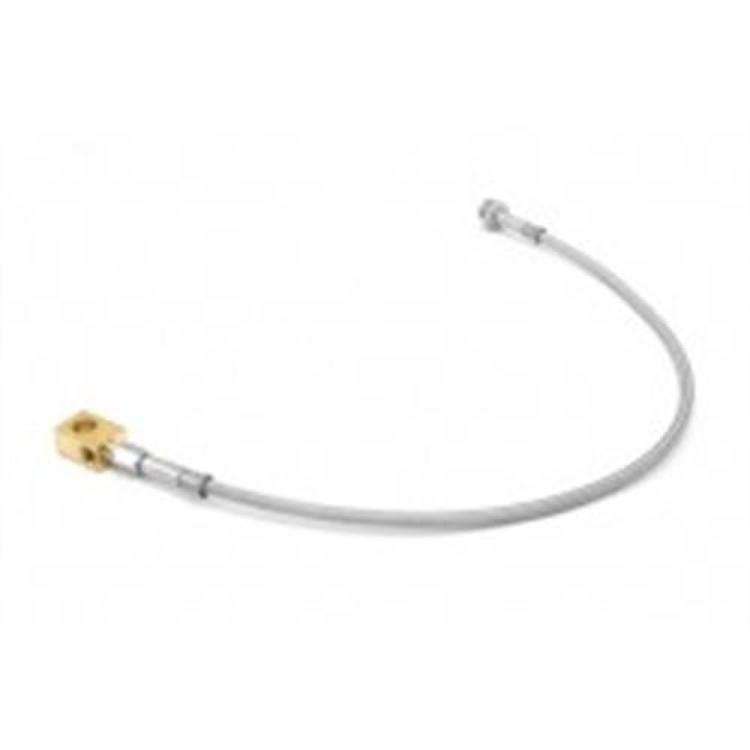

The Rugged Ridge 16735.03 is a pair of braided stainless steel rear brake hoses for 1974 to 1975 Jeep CJ5 and CJ6 models with 11 inch rear drum brakes. The hoses are 4 inches longer than the OE lines.

The front stainless hoses for these years are part 16734.03. The hoses have a Teflon inner hose and come with a 5 year limited warranty.

Key features

  • Braided stainless steel rear hoses
  • Teflon inner hose
  • 4 inches longer than OE
  • Comes as a pair
  • For 11 inch rear drum brakes
  • Front hoses are a separate part, 16734.03

Rear drum brake hoses

On drum-brake Jeeps, the rear hoses connect the rigid lines at the axle to the wheel cylinders, and they move with the axle as the springs compress and rebound. That movement is why a rear hose can rub on the frame, spring or axle over time. A longer hose gives more slack, which reduces the strain on the fittings when the axle droops on uneven ground.

Older Jeeps often still have original rubber hoses that have hardened with age. When the rear hoses are changed, check the drum brake hardware, the wheel cylinders and the shoes as well, because a leaking cylinder can make a new hose appear to fail. Keep the hose routed away from sharp edges and confirm the wheels turn freely before driving.

  • Check both ends of each hose for seepage
  • Look for rubbing against the spring or axle
  • Inspect the wheel cylinders when hoses are replaced

Specifications

Brand Rugged Ridge
Part number 16735.03
UPC 804314079758
Product type Rear brake hose
Material Braided stainless steel with Teflon inner hose
Position Rear
Quantity One pair
Brake type 11 inch rear drum brakes
Extra length 4 inches over OE
Matching front hoses 16734.03
Warranty 5 year limited
Fitment type Direct fit

Vehicle fitment

The 16735.03 fits 1974 to 1975 Jeep CJ5 and CJ6 models with 11 inch rear drum brakes.

The two year ranges differ, so check your CJ’s year and rear brake size. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One pair of rear braided stainless brake hoses.

Not included: Front brake hoses (Rugged Ridge part 16734.03).

SKU: RUG16735.03 Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 15.00 × 11.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51972–1975Base, Renegade
Jeep CJ61972–1975Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the Rugged Ridge 16735.03 a front or rear hose?

It is a rear brake hose pair. Rugged Ridge says to use part 16734.03 for the front stainless hoses on 1974 to 1975 models.

What brakes is the 16735.03 for?

It is for CJ5 and CJ6 models equipped with 11 inch rear drum brakes, not disc brakes. Confirm fit for your vehicle's year, model and trim before ordering.

How much longer is the 16735.03 than the OE hose?

The hoses add 4 inches of length over the original equipment lines and use a braided stainless exterior over a Teflon inner hose. Check the package contents against your installation before starting.

Do rear brake hoses need checking during a drum brake service?

Yes. Check each rear hose for cracks, swelling and seepage at both ends whenever the drums are removed. A hose that rubs against the axle or spring should be rerouted or replaced before it fails.
