Overview

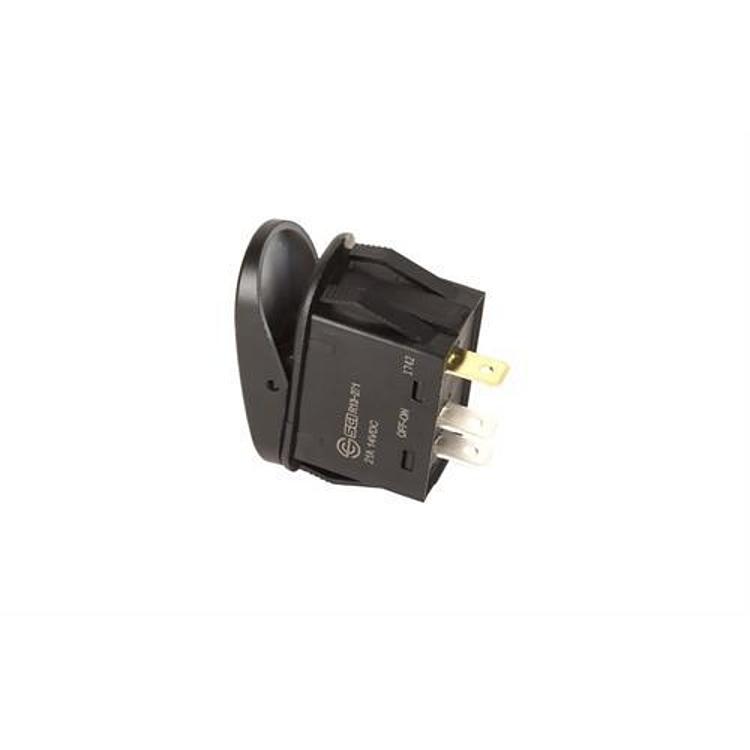

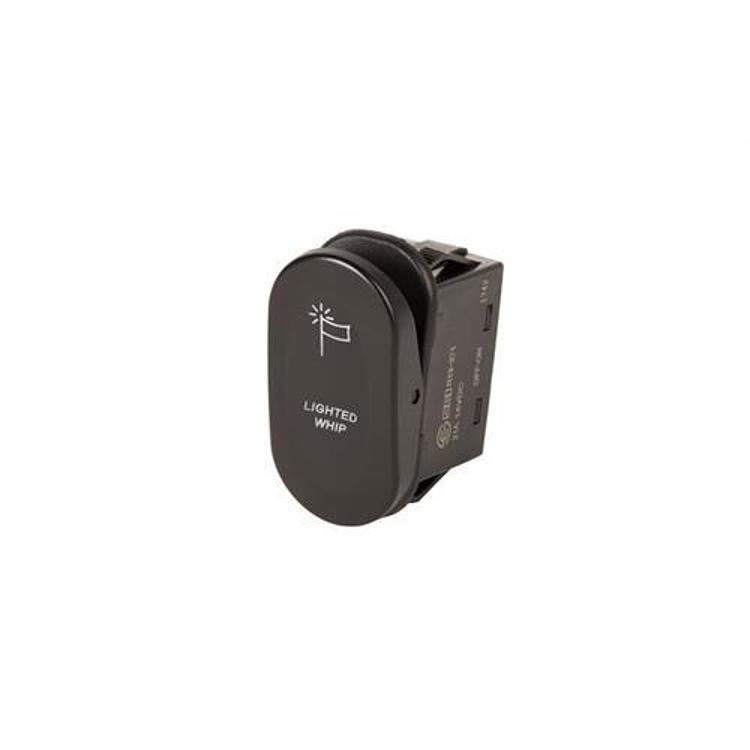

The Rugged Ridge 17235.14 is a 2-position rocker switch with a laser-etched Lighted Whip logo and amber LED illumination. The switches are rated for 20 amps and installation uses a 3 terminal hook-up.
The laser-etched rocker switches control electrical lights and accessories, with logos that identify the function, including Rock Lights, Off-Road Lights, Light Bar, Lighted Whip, Apocalypse Lights, Sasquatch Lights and Zombie Lights. It works in Jeeps, trucks, SUVs and cars, provided the panel cutout and wiring suit the accessory.
Key features
- 2-position rocker switch
- Laser-etched Lighted Whip logo
- Rated for 20 amps
- Amber LED illumination when ON
- 3 terminal hook-up
- Usable in virtually any Jeep, truck, SUV or car
Wiring a lighted switch
A lighted rocker switch is a control point, not the load path for heavy lights. Switch contacts are built for the rated current, so a high-draw light bar or several lights are often run through a relay. The switch then only energizes the relay coil, which keeps the main current away from the contacts. The amber LED on the switch shows when the circuit is on, which helps confirm the wiring after installation.
Good wiring habits protect both the switch and the accessory. Keep grounds clean and tight, and route leads away from heat and moving parts. Check the terminals for corrosion at regular intervals, especially in vehicles driven off road where water and mud reach the cab wiring. A loose connection can heat up and cause the LED to flicker or the switch to feel warm.
- Use a relay for high-draw light bars
- Keep grounds clean and tight
- Check terminals for corrosion regularly
- Route leads away from heat and moving parts
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 17235.14 |
| UPC | 804314299170 |
| Product type | Rocker switch, 2-position |
| Label | Lighted Whip |
| Rating | 20 amps |
| Illumination | Amber LED when the switch is ON |
| Terminals | 3 terminal hook-up |
| Marking | Laser-etched logo |
| Listed fitment type | Universal fit |
| Manufacturer part code | RUG17235.14 |
Vehicle fitment
It is a universal fit. Check that the switch cutout and wiring suit your panel and accessory before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This switch is rated for 20 amps, so size the wire and fuse for the connected load and do not exceed the rating. Since the switch handles current for an accessory, fuse the circuit close to the power source and use wire heavy enough for the load. Route the leads away from heat and moving parts.
