Overview

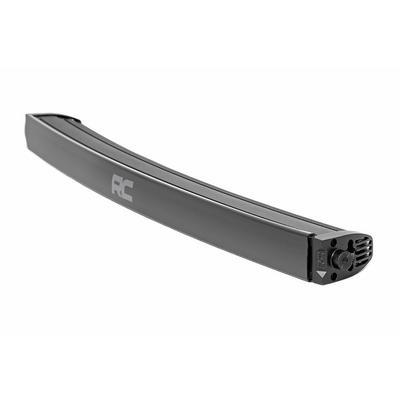

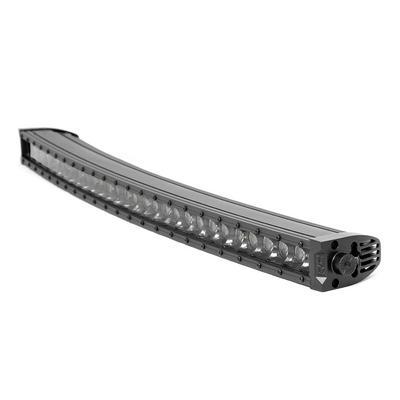

The Rough Country Black Series 30 Inch Curved Cree LED Light Bar with Cool White DRL (part 72730BLDRL) is a curved single row bar rated at 12000 lumens and 150 watts. It is a sleek, modern bar with strong output in a stylish frame, which suits a curved look at the front of the vehicle.
The bar includes a cool white DRL section that Rough Country says illuminates in a way similar to the daytime running light option of modern headlights, and that this line of LED backlighting adds visibility and interest. The black panel design fits vehicles with black accents such as grilles, wheels, bull bars and steps. The housing is durable die-cast aluminum, and the braided, flat-wound, waterproof harness has a three-position switch and an in-line fuse.
Key features
- Curved single row Cree LED layout
- 12000 lumens at 150 watts
- Cool white DRL section
- Black panel design
- Die-cast aluminum housing
- Braided, flat-wound waterproof harness
- Three-position switch and in-line fuse
- Snap-on cover included
Choosing a curved mount
A curved bar follows the front of the vehicle more closely than a straight bar, so mount positions need to be checked with the bar held in place. Mark the holes with the bar at its final angle, then drill only after confirming the bar sits square. A gap between the bar and the surface can cause rattles and fatigue in the mounts.
Single row layouts give a focused light pattern with a clean profile, and the cool white DRL section adds a separate light for daytime visibility. Keep the braided harness clear of hot parts and moving components. Snap-on covers protect the lens when the bar is off the vehicle, and should be checked for a tight seal after cleaning. Re-check the fasteners after the first few drives.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 72730BLDRL |
| Light series | Black Series |
| Length | 30 inch |
| Shape | Curved |
| Output | 12000 lumens; 150 watts |
| DRL | Cool white section of LEDs |
| Housing | Die-cast aluminum |
| Harness | Braided, flat-wound, waterproof, three-position switch, in-line fuse |
| Warranty | 3 year |
Vehicle fitment
This curved bar is universal fit and is not built for one vehicle. The curve and the 30 inch length mean the mounting span and clearance matter most. Confirm the mounting surface before drilling.
Installation notes
Size the fuse and wire for the 150 watt load, and keep the braided harness away from moving parts. Check local rules for DRL and auxiliary lighting on public roads before use.
What’s included

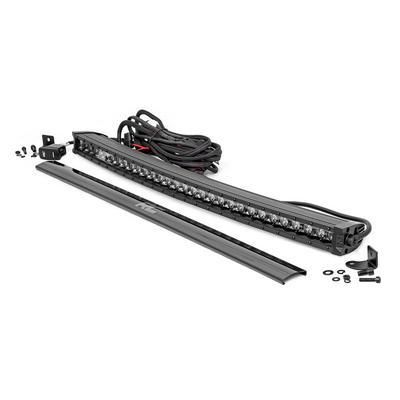

One 30 inch curved Black Series bar with cool white DRL, a braided harness with a three-position switch and in-line fuse, and a snap-on cover.
