Overview
The Rough Country Black Series 12 Inch Cree LED Light Bar (part 70712BL) is a single row light bar rated at 4800 lumens and 60 watts. Rough Country describes its Black Series bars as sleek, single row units that give large lighting power in a modern frame. The bar has a black panel design meant to match black accents such as grilles, wheels, bull bars and steps.
The kit includes a set of end mounts and adjustable base mounts, so the bar can be aimed and placed in several positions. The housing is durable die-cast aluminum, and the wiring is a premium waterproof flat-wound braided harness with a toggle switch and an in-line fuse. Rough Country also includes its light bar noise silencers, which snap over the cooling fins to reduce wind noise, plus a snap-on cover and a 3-year warranty.
Key features
- Single row layout
- 4800 lumens at 60 watts
- Black panel design
- End mounts and adjustable base mounts
- Die-cast aluminum housing
- Waterproof braided harness with toggle switch and in-line fuse
- Noise silencers that snap over the cooling fins
Aiming and adjustment
Aim matters more than output on a single row bar, because a well aimed beam lights the trail ahead without pushing glare into oncoming traffic. Start with the bar level and set the base mounts so the beam falls on the road a short distance in front of the vehicle.
The end mounts allow sideways movement, which helps when the bar is set off center or pointed toward a particular surface. Tighten each adjustment point fully after aiming, and recheck the setting after any trail session with heavy bumps.
Bars with a black panel design often sit in visible spots such as the grille or bumper, so consider how the finish sits against nearby accents when choosing a position. Keep the braided harness routed clear of the bar’s moving adjustments.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 70712BL |
| Light series | Black Series |
| Length | 12 inch |
| LED row configuration | Single row |
| Output | 4800 lumens; 60 watts |
| Mounts | End mounts and adjustable base mounts |
| Wiring | Braided harness, toggle switch, in-line fuse |
| Accessories | Light bar noise silencers, snap-on cover |
| Warranty | 3 year |
Vehicle fitment
This bar is universal fit and is not built for one vehicle. The end and base mounts allow placement in a range of positions, which helps with fitting it to many vehicles. Confirm the mounting space for a 12 inch bar before drilling.
Installation notes
The end mounts and adjustable base mounts allow full adjustment of the aim. The harness is waterproof and includes an in-line fuse, so connect the toggle switch and fuse as shipped, and check local rules for auxiliary lighting on public roads.

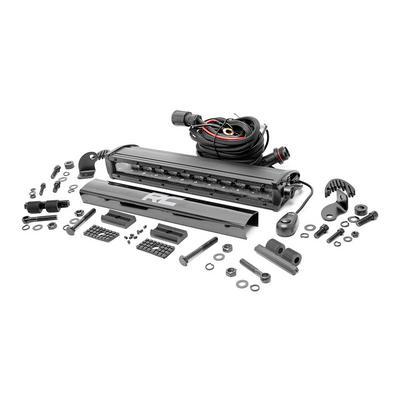

What’s included
One 12 inch Black Series LED light bar, a set of end mounts and adjustable base mounts, a braided harness with a toggle switch and in-line fuse, light bar noise silencers and a snap-on cover.
