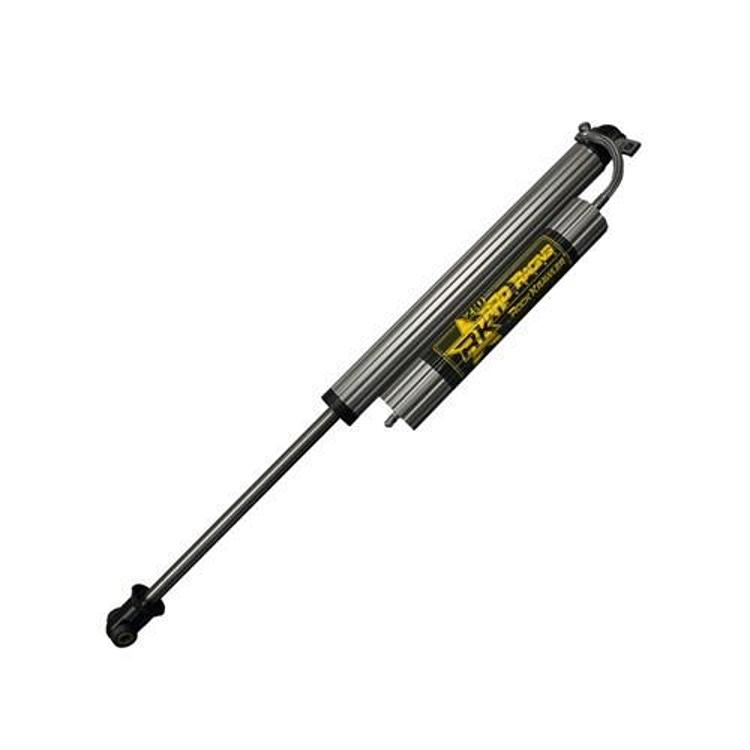

Rock Krawler Remote Reservoir Shock – RRD02057RRD

Rock Krawler

Shop Jeep Wrangler JK Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rock Krawler RRD02057RRD remote reservoir shock, rear driver’s side
  • Fits 2007–2016 Jeep Wrangler (JK) Unlimited models
  • Built for vehicles with a 3.5 inch lift and 10 inch travel
  • 2.0 inch fluted aluminum body with a 3/4 inch Nitrotec steel shaft
  • Made in U.S.A.

Description

Overview

The Rock Krawler RRD02057RRD is a 2.0 inch remote reservoir shock for the rear driver’s side of 2007–2016 Jeep Wrangler (JK) Unlimited models. It is built for vehicles with a 3.5 inch lift and offers 10 inch of travel, with a fluted aluminum body designed to cut weight without giving up strength.

The fluting gives the aluminum cylinders enough structure to match steel 2.0 inch shocks, and the body has more surface area than most 2 inch bodied shocks. Shock oil is formulated for fade-free damping and smooth rebounds, and a custom moly piston wear band reduces shock body wear. This shock is designed for a 3.5 inch lift, so check that your setup matches before ordering.

Because the shaft is bare steel, Rock Krawler notes there is no chrome that can pit or flake and damage the seals, which is the reason given for leaving it uncoated.

It suits owners of lifted JK Unlimited models who want a remote reservoir shock with a lighter aluminum body.

Key features

  • Fluted aluminum shock body that Rock Krawler says is lighter than steel 2.0 inch shocks
  • Hard anodized military grade coating on the shock body.
  • 3/4 inch Nitrotec steel shaft left bare rather than chrome plated
  • DU bearing supporting the shaft
  • Billet aluminum valve circuit with digressive valving controls damping
  • Redundant sealing technology keeps shock oil inside the body
  • Oil formulated for fade-free damping, with a high viscosity index and shear stability

Remote reservoir considerations

A remote reservoir shock separates the gas and oil volume from the main body, which gives the damper room to work and cool. This layout suits lifted vehicles that see long descents or rough trails, but the reservoir and hose need a dedicated mounting spot away from tires and moving parts. Plan the route before mounting, and check that the hose stays clear through full suspension travel.

On an Unlimited body, the rear suspension sees more weight and longer wheelbase loads, so the shock should be checked under those conditions. Keep the seals and shaft clean, and inspect the reservoir fittings for oil seepage. Bump stops and bushings are often inspected during the same job.

  • Plan the reservoir location before mounting
  • Check hose clearance through full travel
  • Inspect fittings for seepage periodically

Specifications

Brand Rock Krawler
Part number RRD02057RRD
UPC 70000616338
Body 2.0 inch fluted aluminum
Shaft 3/4 inch Nitrotec steel, bare
Bearing DU
Valving Billet aluminum valve circuit, digressive
Travel 10 inch
Lift height 3.5 inch
Reservoir Remote
Position Rear driver’s side
Made in U.S.A.

Vehicle fitment

Listed fitment covers the 2007–2016 Jeep Wrangler (JK) Unlimited, including the 70th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.

Only Unlimited bodies appear in the list, so two-door JK models and other generations are not covered by it. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Included hardware and quantity should be checked against your installation before ordering.

SKU: RKSRRD02057RRD Category:

Specification

Shipping weight 8.00 lbs
Package dimensions 10.00 × 4.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–2016Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Rock Krawler RRD02057RRD fit a 2007–2016 Jeep Wrangler JK Unlimited?

Yes, the listed fitment covers the 2007–2016 Jeep Wrangler (JK) Unlimited with trims including Rubicon, Sahara, Sport and X. Two-door models are not in the list, so check your model before ordering.

What lift height is this shock made for?

It is designed for vehicles with a 3.5 inch lift and offers 10 inch of travel. Match the shock to your lift height before ordering.

What is the shock body made from and how is it finished?

The shock has a 2.0 inch fluted aluminum body with a hard anodized coating, which Rock Krawler describes as military grade. The 3/4 inch shaft is Nitrotec steel and is left bare rather than chrome plated.

Is the RRD02057RRD made in the United States?

Yes. It is made in the U.S.A. Use part number RRD02057RRD or UPC 70000616338 when comparing this shock against other options.

What should be checked on a remote reservoir shock after a trail trip?

Check the body, shaft, hose and reservoir fittings for oil, dirt or chafing. Clean the shaft and seals, and recheck the mounting hardware so the shock stays aligned and secure.
