Overview

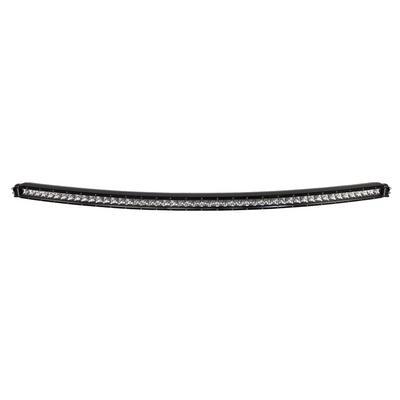

The Rigid RDS SR-Series Pro 50 Inch Spot LED Light Bar (part 88531) is a 50 inch curved spot light bar in black. The SR-Series PRO brings the curved RDS styling and its functional advantages into a more streamlined package. The bar is sold as a single unit.
The SR-Series design has a gentle arc, which suits modern bumpers, windshields, grille inserts and other places where a curve fits better than a straight bar. The arc spreads light across the bar, and the PRO LEDs add more raw lumens than earlier units. The housing is extruded aluminum with an unbreakable polycarbonate lens, and the branding and circuit boards are blacked out for a subtle look. The bar is built with the same quality components as the other lighting products in the range.
Key features
- Curved 50 inch spot light bar
- Gentle arc for a wider spread
- Single row LED layout
- PRO LEDs with more raw lumens
- Extruded aluminum housing
- Unbreakable polycarbonate lens
- Blacked-out circuit boards
Long curved bars and mounting span
A 50 inch bar puts a lot of length onto a mounting surface, so the spacing between the brackets matters. Place the outer mounts close to the ends to reduce flex, and use a center support if the surface is wide enough. The bar should follow the curve of the panel, and any gap at the middle will show up as stress on the housing.
Long bars are often the first to show vibration damage, so inspect the bracket bolts and the housing seal after the first few drives. Keep the harness secured along its length, because loose wiring can rub against the mount and wear through insulation over time.
- Keep outer mounts close to the ends
- Add a center support on wide surfaces
- Inspect the seal and bolts after early drives
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 88531 |
| Light series | RDS SR-Series PRO |
| Size | 50 inch |
| Shape | Curved |
| LED row configuration | Single row |
| Beam pattern | Spot |
| Housing color | Black |
| Mounting | Surface |
| Lens | Unbreakable polycarbonate |
| Sold as | Single |
Vehicle fitment
This 50 inch curved bar is universal fit and is not built for one vehicle. The arc suits modern bumpers, windshields and grille inserts. Because the bar is 50 inches long, measure the curve and the mounting span before drilling.
Installation notes
Check the mounting surface against the bar’s curve and length before drilling. Fuse the feed and check local rules for auxiliary light bars on public roads.
What’s included
One 50 inch RDS SR-Series PRO curved spot light bar in black. Check the package contents against your installation before starting.
