Overview
The Rhino-Rack RLKVAH is a leg kit for the Rhino-Rack Vortex 2500 half roof rack system. The kit contains 2 legs and keys and carries a 5 year warranty. It fits a wide range of 2004-2016 trucks and SUVs from Chevrolet, Ford, GMC, Isuzu, Nissan, Ram, Suzuki and Toyota.
The RLKVAH is a vehicle-specific leg kit rather than a complete rack, used with the Vortex 2500 half roof rack system. The kit contains two legs, sold as a pair (X2), along with keys. The part number is RLKVAH, also known as RHORLKVAH, and it is a direct fit for the vehicles it covers.
Key features
- Leg kit for the Rhino-Rack Vortex 2500 half roof rack system
- Kit includes 2 legs and keys
- 5 year warranty
- Direct-fit application for the listed vehicles
- Fits 2004-2016 Chevrolet, Ford, GMC, Isuzu, Nissan, Ram, Suzuki and Toyota models
Before you install
A leg is the upright that connects a roof rack bar to the vehicle, so its condition affects how much load the whole rack can carry. Legs are exposed to road grit, salt and UV, which can wear finishes and loosen joints over time. Regular inspection is the simplest way to catch a problem early.
When fitting replacement legs, match the leg kit to the rack system and the vehicle roof before starting. Legs must line up with the roof fixing points and the rack bars, so a mismatch can leave the rack unstable. Set the height evenly on each side and recheck alignment after the first short drive.
- Inspect legs for cracks, bends and corrosion
- Check that both sides sit at the same height
- Keep the keys with the kit for future removal
- Replace worn fasteners along with the legs
Specifications
| Brand | Rhino-Rack |
|---|---|
| Part number | RLKVAH (also known as RHORLKVAH) |
| Product type | Roof rack leg kit |
| Compatible system | Vortex 2500 half roof rack system |
| Quantity | 2 legs (X2) and keys |
| Warranty | 5 year |
| Fitment type | Direct fit |
Vehicle fitment
The stored manufacturer fitment list for the RLKVAH includes the 2004-2012 Chevrolet Colorado, the 2007-2016 Chevrolet Silverado 1500, 2500 HD and 3500 HD, the 1998-2011 Ford Ranger, the 2007-2012 GMC Canyon, the 2007-2016 GMC Sierra 1500 and 3500 HD, the 2007-2014 GMC Sierra 2500 HD, the 2006 Isuzu i-350, the 2007-2008 Isuzu i-370, the 2000-2016 Nissan Frontier, the 2005-2012 Nissan Pathfinder, the 2011-2016 Ram 1500 and 3500, the 2009-2012 Suzuki Equator, the 2012-2015 Toyota Tacoma and the 2007-2016 Toyota Tundra, in the trims listed in the manufacturer data. Classic-body 2007 Silverado and Sierra models are also listed.
Only the years and models in the manufacturer list are covered. Other years and models, and cab styles not in the list, are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Torque all fasteners to the specified values and use professional installation if any step is unclear. Roof racks add height and load to the vehicle, so respect the load limits for the vehicle and rack, and check the fit and tightness of the legs before every trip.
- Support the vehicle safely and work on level ground.
- Check clearance and operation through the full range of motion before driving.
- Re-check fasteners after the first miles of driving and at regular service intervals.
What’s included

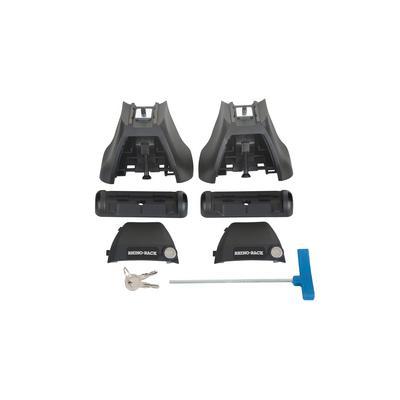

Two legs and keys.
Not included: The Vortex 2500 half roof rack system itself, including the bars and any other parts of the rack, which the leg kit is designed to be used with.
