Overview

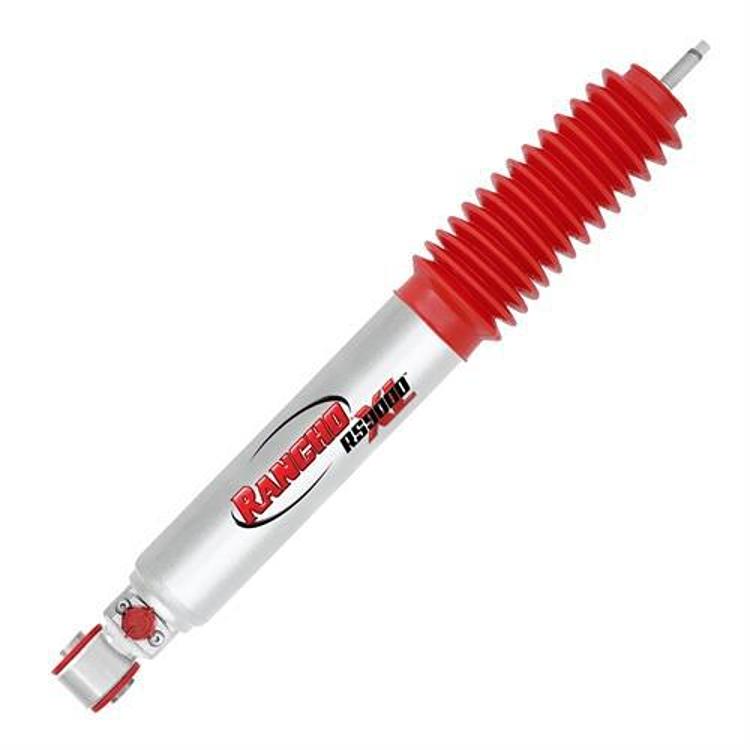

The Rancho RS999324 is a rear RS9000XL Series shock absorber with nine manual or remote damping settings. It is a Direct Fit shock with gas-charged construction and 0 in. lift/drop.
The shock is built with a 2.75 in. (70mm) body, an 18mm chrome rod and red urethane bushings. Its nine-position tuning works with the myRide system that Rancho describes as a manual or remote control.
Key features
- Rear mounting position
- Nine damping positions, adjustable manually or by remote
- Nitrogen gas charged body
- Liquid metallic finish
- Protective boot included
Rear shock wear and tuning
Rear shocks carry a large share of the load when a vehicle is loaded with gear or towing, so they often wear faster than front units on work trucks. Damping that feels right on an empty vehicle may feel harsh or floaty once weight is added, which makes a multi-position setting useful. Many drivers start in the middle position and adjust one step at a time after a few drives on the roads they use most.
Rear shocks are usually replaced in pairs so both sides keep matching damping. Before swapping, check the upper and lower mounts for cracked rubber, look for leaking fluid, and make sure the boot is seated. A worn shock often shows as bounce after a speed bump or a rear end that dips too far under braking. Retighten mounting fasteners after the first few trips and recheck them periodically.
- Check both sides for matching wear
- Inspect the upper and lower mounts
- Note each tuning change you make
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999324 |
| UPC | 10039703093245 |
| Shock series | RS9000XL Series |
| Position | Rear |
| Lift/drop | 0 in. |
| Body diameter | 2.75 in. (70mm) |
| Rod diameter | 18mm chrome |
| Tuning | 9-position manual/remote (myRide) |
| Gas charge | Nitrogen |
| Bushings | Red urethane |
| Finish | Liquid metallic |
| Warranty | Limited Lifetime Warranty |
| Fitment type | Direct Fit |
Vehicle fitment
It is marked Direct Fit for the RS9000XL Series. Compare your application with your vehicle’s year, model and trim before ordering.
The position is Rear, so this part does not cover front shocks. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear shock absorber with a protective boot is included. Verify the hardware you need before starting the installation.
