Rancho RS5000 Series Shock Absorber – RS5304

Rancho

Shop Nissan Titan Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear-position RS5000 Series shock for 2004–2015 Nissan Titan
  • Part number RS5304 with gas-charged body
  • Rated for a w/4 in. Lift
  • Ten-stage velocity sensitive valving and red protective boot

Description

Overview

The Rancho RS5304 is a rear-position RS5000 Series gas-charged shock absorber for the Nissan Titan. Rancho lists fitment for the 2004–2015 Titan in LE, PRO-4X, S, SE, SL, SV and XE trim.

It is rated for a w/4 in. Lift, which suits Titans running a lift. It uses ten-stage velocity sensitive valving, a 5/8-in. (16mm) piston rod and a 1 3/8-in. (35mm) piston, and it is built for both on-road and off-road driving.

Key features

  • Rear-position mounting for the Titan
  • Rated for a w/4 in. Lift.
  • Ten-stage velocity sensitive valving
  • 5/8-in. (16mm) diameter piston rod
  • 1 3/8-in. (35mm) diameter piston
  • Gas-charged body
  • Red protective boot included

Choosing a lift-matched shock

A shock absorber controls how quickly the spring compresses and rebounds, which keeps the tires in contact with the ground over washboard, ruts and jumps. On a Titan, the rear shocks carry load that changes with the bed contents and any hitch or cargo, so the damping has to handle both light and heavy conditions. Velocity sensitive valving adjusts resistance based on how fast the shaft moves, letting slow body motion stay soft while sharp impacts are controlled.

When a truck is raised, shock length and travel change, and a shock built for the original height may bottom out or wear unevenly. Matching the shock to the lift height and the rest of the suspension, including springs, track bar and control arms, helps keep the geometry consistent. Replacing shocks in pairs on the same axle keeps damping balanced from side to side.

  • Inspect for oil seepage down the body
  • Check bushings and mounting hardware for wear
  • Re-torque mounting bolts after the first few trail runs
  • Replace shocks in pairs on the same axle

Specifications

Brand Rancho
Part number RS5304
UPC 10039703530405
Series RS5000 Series
Position Rear
Fitment type Direct fit
Lift height rating w/4 in. Lift
Valving Ten-stage velocity sensitive
Piston rod diameter 5/8-in. (16mm)
Piston diameter 1 3/8-in. (35mm)
Body Gas charged

Vehicle fitment

It fits the 2004–2015 Nissan Titan in LE, PRO-4X, S, SE, SL, SV and XE trims.

The list shows Titan models only and does not cover other Nissan trucks. Confirm your vehicle’s year, model and trim before ordering.

What’s included

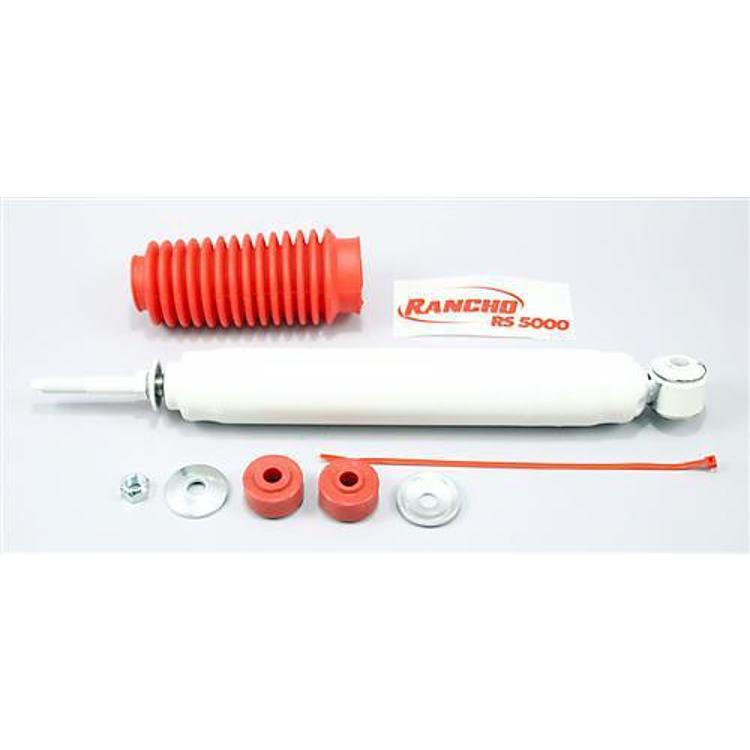

One rear-position RS5000 Series shock absorber with a red protective boot included.

SKU: RANRS5304 Category:

Specification

Shipping weight 6.40 lbs
Package dimensions 24.10 × 3.30 × 3.30 in
brands

Fitment

VehicleYearsTrims
Nissan Titan2004–2015LE, PRO-4X, S, SE, SL, SV, XE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RS5304 fit a Nissan Titan?

Yes. It fits the 2004–2015 Nissan Titan in LE, PRO-4X, S, SE, SL, SV and XE trims. Other Nissan models are not covered.

Is the RS5304 a front or rear shock?

It is a rear-position shock, so it fits the rear axle only and should not be installed on the front of a Titan.

Which lift rating does the RS5304 carry?

It carries a w/4 in. Lift rating. Its piston rod is 5/8-in. (16mm) in diameter and its piston is 1 3/8-in. (35mm) in diameter.

How can I tell if a rear shock needs replacing?

Look for oil leaking down the shock body, a bouncy ride after bumps, worn or cracked bushings, and uneven rear tire wear. A shock that lets the rear end rebound several times after a dip is usually due for replacement. Check the mounting hardware at the same time.
