Rancho RS5000 Series Shock Absorber – RS5151

Rancho

Shop Rancho Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS5151, an RS5000 Series shock absorber
  • Ten-stage velocity sensitive valving for light trucks and SUVs
  • 5/8-in. (16mm) diameter piston rod
  • 1 3/8-in. (35mm) diameter piston
  • Red protective boot included with the shock
  • Fitment not listed by vehicle name

Description

Overview

The Rancho RS5151 is a RS5000 Series shock absorber intended for light trucks and sport utility vehicles, with a 5/8-in. (16mm) diameter piston rod and a 1 3/8-in. (35mm) diameter piston. Rancho has promoted the RS5000 Series as its go-to light truck shock since 1985.

The RS5151 suits both stock and lifted light trucks and sport utility vehicles, for on-road and off-road use. It uses hydraulic, gas-charged construction and ten-stage velocity sensitive valving, with a red protective boot.

Key features

  • Ten-stage velocity sensitive valving
  • Red protective boot included
  • Piston rod measures 5/8-in. (16mm) in diameter
  • Piston measures 1 3/8-in. (35mm) in diameter
  • Suited to stock and lifted applications

Shock tuning and ride height

Velocity sensitive valving changes damping force depending on how fast the shock moves. Slow body movements, such as leaning in a turn, are handled differently from quick impacts like washboard or a sharp hit on a rock. That split is why a shock can feel controlled on the highway and still absorb trail impacts without harsh rebound.

Ride height matters too. When a truck is lifted, the shock’s mounting angles and extension range change, so the rod and travel need to suit the new geometry. Worn bushings or sagging springs can make even a good shock feel out of balance, so check those parts at the same time.

  • Check the upper and lower mounts for wear
  • Inspect the boot for tears that let grit reach the rod
  • Compare rebound feel between the left and right sides
  • Replace bushings when the shock is replaced

Specifications

Brand Rancho
Part number RS5151
UPC 10039703515105
Series RS5000 Series
Shock type Hydraulic, gas charged
Valving Ten-stage velocity sensitive
Piston rod diameter 5/8-in. (16mm)
Piston diameter 1 3/8-in. (35mm)
Protective boot Red
Warranty Limited lifetime
Unit Each

Vehicle fitment

Before ordering, match your truck’s year, model and trim to this shock. The RS5000 Series is made for light trucks and sport utility vehicles in general, so a series match alone is not enough.

Confirm your vehicle’s year, model and trim before ordering.

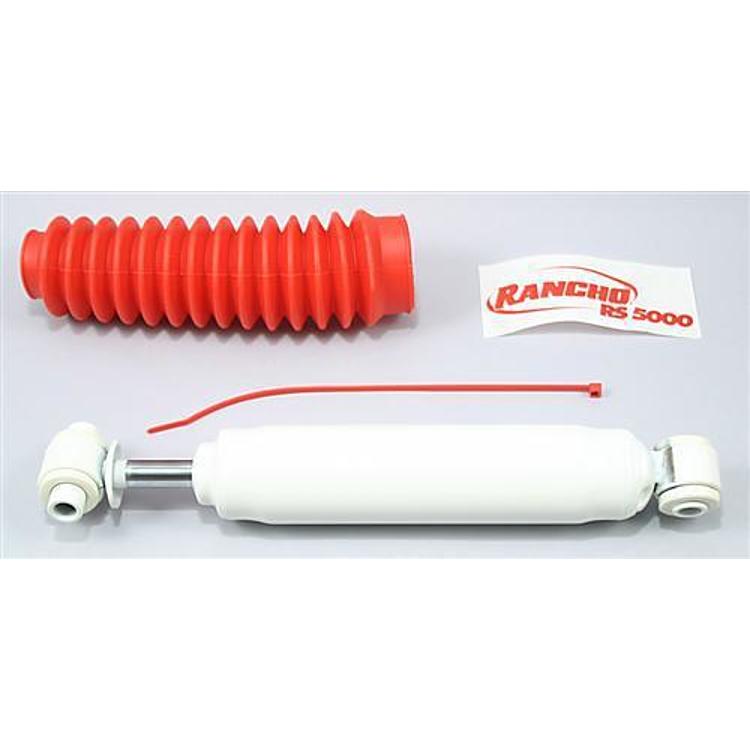

What’s included

One shock absorber with a red protective boot. Check the mounting hardware your installation needs before starting.

SKU: RANRS5151 Category:

Specification

Shipping weight 4.90 lbs
Package dimensions 24.10 × 3.30 × 3.30 in
brands

Questions & Answers

What is the Rancho RS5151 shock absorber used for?

The RS5151 is an RS5000 Series shock for light trucks and sport utility vehicles, suited to both stock and lifted applications. It is built for on-road and off-road use and carries a limited lifetime warranty.

Does the Rancho RS5151 include a boot?

Yes. A red protective boot is included with the RS5151, and the shock arrives as a single unit. Check the rest of your installation needs, such as mounting hardware, before ordering.

What is the RS5151 part number and brand?

The RS5151 is made for light trucks and sport utility vehicles, in both stock and lifted form. Confirm fit for your vehicle's year, model and trim before ordering, using part number RS5151.

How do I know the shock is worn?

Common signs include a bouncy ride after bumps, nose-diving when braking, fluid on the shock body, and uneven tire wear. A worn shock can also make the truck sway more in turns, so inspect it if the handling feels loose.

Is the red boot worth keeping on the shock?

Yes. The boot covers the piston rod and keeps dirt, sand and water off the seal. A torn or missing boot lets grit score the rod, which can cause leaks. Keep the boot intact and clean it after mud or river crossings.
