Overview
The Rancho RS5143 is a rear gas-charged shock absorber from the RS5000 Series, with a lift rating of w/4 in. Lift. It is a direct fit for the 1961–1971 Dodge W100 and W200 pickups and the 1984–1985 Toyota 4Runner and Toyota Pickup.
The RS5000 Series is suited to stock and lifted vehicles. This rear unit includes ten-stage velocity sensitive valving, a 5/8-in. (16mm) piston rod and a 1 3/8-in. (35mm) piston.
Key features
- Rear position, gas-charged
- Lift rating w/4 in. Lift
- Ten-stage velocity sensitive valving
- 5/8-in. (16mm) diameter piston rod
- 1 3/8-in. (35mm) diameter piston
- Red protective boot included
Lift height and older rear shocks
Rear shocks on older pickups and compact SUVs are often asked to work with a raised suspension, and the rating of the shock should be compared with the height of the rear axle. A shock that is too short for a lifted rear can run near the end of its travel and wear its mounts, while one that is too long may reduce control at the bottom of its stroke.
On trucks of this age, rear springs, leaf packs and axle mounts are often worn. Inspecting them when a shock is replaced helps the new unit work the way it was designed to, and prevents the rear from sagging or moving unevenly over rough ground.
- Measure rear ride height before ordering
- Inspect leaf springs and spring hangers
- Check shock eye bushings for wear
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS5143 |
| UPC | 39703514309 |
| Series | RS5000 Series |
| Position | Rear |
| Charge | Gas charged |
| Valving | Ten-stage, velocity sensitive |
| Piston rod diameter | 5/8 in. (16 mm) |
| Piston diameter | 1 3/8 in. (35 mm) |
| Lift rating | w/4 in. Lift |
| Fitment type | Direct fit |
| Warranty | Limited lifetime (Rancho) |
| Quantity | Each |
Vehicle fitment
The RS5143 fits these vehicles: 1961–1971 Dodge W100 (Pickup Base, Series Base) and W200 (Pickup Base, Series Base) pickups, 1984–1985 Toyota 4Runner (DLX, SR5), and 1984–1985 Toyota Pickup (Base, DLX, DLX Turbo, SR5). Other Dodge W-series years and other 4Runner and Toyota Pickup years are not included. Confirm your vehicle’s year, model and trim before ordering.
Other Dodge W-series years and other 4Runner and Toyota Pickup years are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The rating is w/4 in. Lift, and the listed vehicles are older models, so measure your current ride height and confirm the mounting points match before installing the shock.

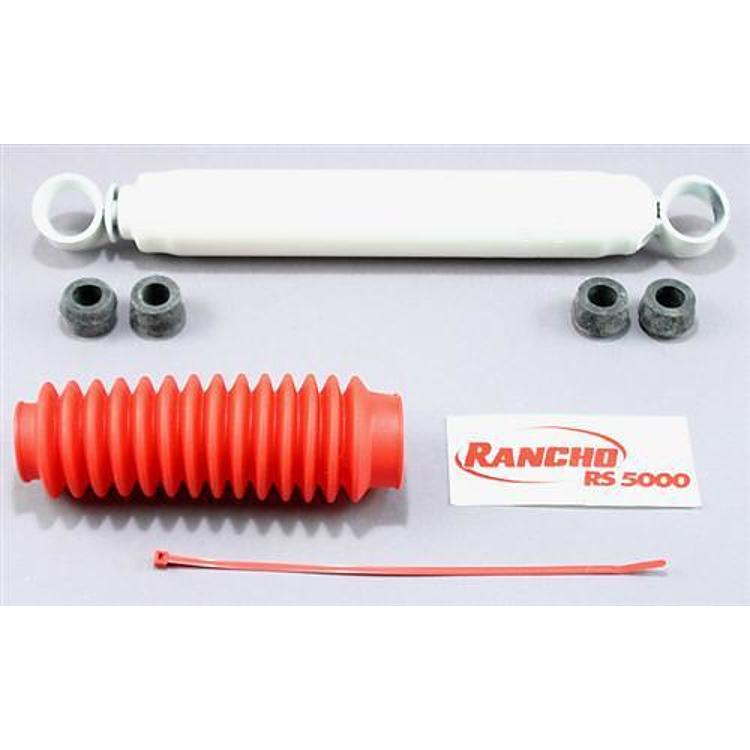

What’s included
Supplied: one RS5143 rear shock with a red protective boot.
