Overview

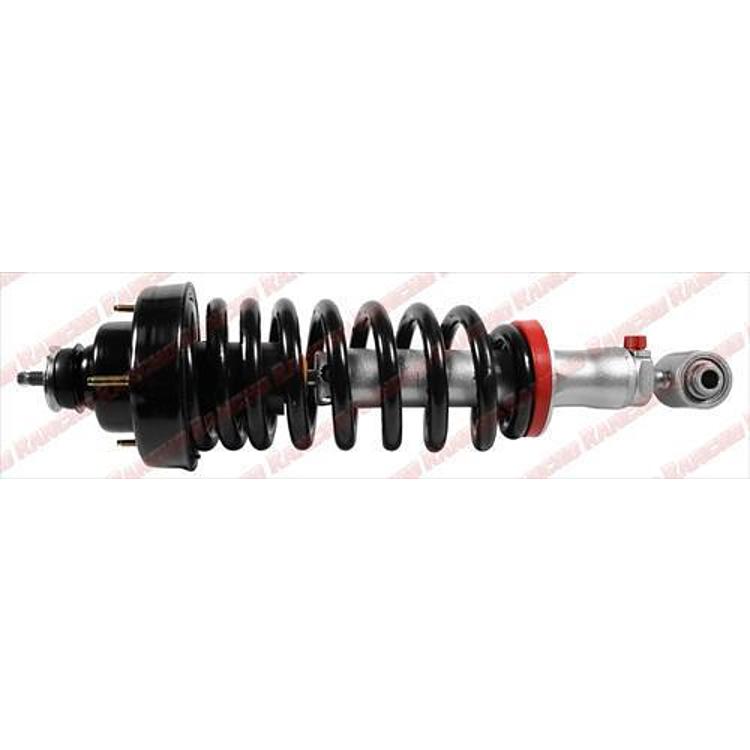

The Rancho RS999905 is a 1.25 inch Loaded QuickLIFT rear passenger side unit for 2002-2005 Ford Explorer and Mercury Mountaineer models without air suspension. It combines the strut, an application-specific coil spring and an upper mounting plate in one gas charged assembly, meant to lift the rear and add stance without a full suspension replacement.
The nine-position adjustability lets you tune ride quality by hand for terrain and driver preference. The unit carries a Limited Lifetime Warranty and a 90-Day Free-Ride Offer.
Key features
- Gas charged strut with an installed, application-specific coil spring
- Upper mounting plate included to simplify installation
- Nine manual adjustment positions for ride tuning
- Rear passenger side position
- Covers 2WD and 4WD models without air suspension
- Limited Lifetime Warranty and 90-Day Free-Ride Offer.
Rear corner leveling
A single rear corner is a different job from a full axle set. Rear springs and shocks carry load and control axle movement, so the new assembly works against the axle and the other rear corner. Because it is one side, the two sides can end up with different heights or damping if the other unit is worn. Matching the unit to the opposite side, and checking both sides together, keeps the rear ride even and predictable.
Rear loads change how a lift feels. Cargo, towing and passengers all push the rear down, and a stiffer or taller setup handles that load differently than the factory setup. Adjust damping in small steps and check the ride after a few typical trips. Inspect the upper mount, the bump stop and the boot regularly, and look for leaks on the strut body, since a damaged rear unit can cause a bounce that is hard to trace.
- Check both rear corners for matching height
- Inspect upper mounts for cracks or play
- Look at rear bump stops for wear
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999905 |
| Lift height | 1.25 inch |
| Shock series | QuickLIFT Series |
| Position | Rear Right (rear passenger side) |
| Gas charged | Yes |
| Adjustment | 9 positions |
| Drive | 2WD and 4WD |
| Air suspension | Not equipped |
| Warranty | Limited Lifetime Warranty |
Vehicle fitment
This unit is for the 2002-2005 Ford Explorer and 2002-2005 Mercury Mountaineer in 2WD and 4WD models without air suspension.
Model years outside 2002-2005 and vehicles equipped with air suspension are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a single corner unit for the rear passenger side, so match the position before you start. Re-check rear ride height and alignment once the new assembly is in. Support the vehicle on jack stands before working on the rear suspension.
What’s included
The strut, coil spring and upper mount arrive together as one assembled unit.
Not included: air suspension components are not part of this kit.
