PSC Steering Big Bore XD Cylinder Assist Steering Gearbox – SG400R

PSC Steering

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Saginaw-style cylinder assist gearbox for the 2003-2006 Jeep Wrangler TJ and LJ
  • Requires PSC HK2000 pressure and return hoses
  • Intermediate shaft must be shortened about 2 inches or replaced

Description

Overview

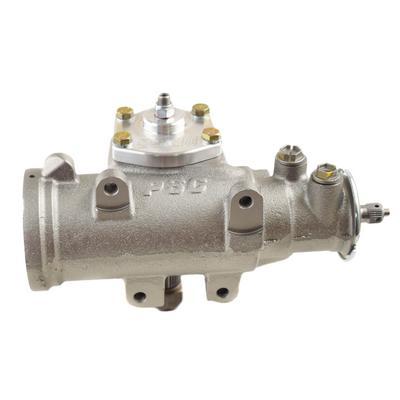

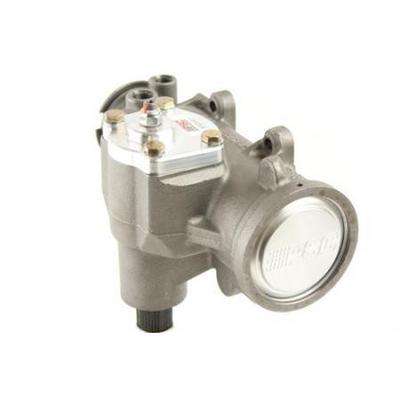

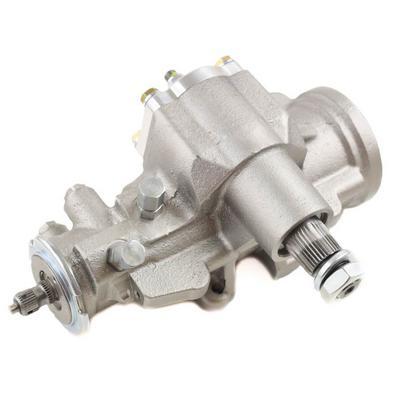

The PSC Steering Big Bore XD cylinder assist steering gearbox SG400R (PSMSG400R) is a Saginaw-style power steering gearbox for the 2003-2006 Jeep Wrangler TJ and LJ. Performance Steering Components designed it for use with a cylinder assist setup.

The Saginaw-style gearbox is larger overall than the stock unit. The existing intermediate shaft must be shortened by about 2 inches, or Jeep/MOPAR intermediate shaft 52078705 installed instead. PSC pressure and return hose assemblies, part HK2000, are required, and some applications need a 1-inch body lift to clear the lines.

The Big Bore XD range also includes matching steering parts for the same Jeeps.

PSC groups this unit with its Big Bore XD cylinder assist gearboxes. The Saginaw-style gearbox is bigger than the original one, which is the reason for the extra installation requirements above.

Key features

  • Big Bore XD cylinder assist gearbox
  • Saginaw-style design
  • Made for 2003-2006 Wrangler TJ and LJ
  • Direct-fit

Steering box upgrade tips

Cylinder assist steering uses hydraulic pressure to help the driver turn the wheels, so the gearbox, hoses and pump work as one system. When a gearbox is swapped, the new unit’s inlet and outlet positions can change how the lines route, so dry-fit the hoses before final tightening. Check that the hoses have room to move through full steering lock without touching the frame, exhaust or driveline.

Steering fluid should be topped up with the type your system calls for, and the system should be bled after any hose or gearbox work. Look for weeping at each fitting in the first few drives, and inspect the intermediate shaft joints for play. Worn steering components often show up as slop at the wheel or a tendency to wander, so address those before the upgrade rather than after.

  • Dry-fit hoses before final tightening
  • Check clearance at full steering lock
  • Inspect intermediate shaft joints for play

Specifications

Brand PSC Steering
Part number PSMSG400R
Type Cylinder assist power steering gearbox
Style Saginaw
Required hoses PSC HK2000 pressure and return hose assemblies
Fit type Direct fit

Vehicle fitment

It fits the 2003-2006 Jeep Wrangler TJ and the 2004-2006 Wrangler Unlimited LJ.

The 1997-2002 TJ and the JK are not covered by the PSC application note. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation needs PSC hose assemblies HK2000 (pressure and return). Some vehicles need a 1-inch body lift to clear the lines. The intermediate shaft must be shortened by about 2 inches, or Jeep/MOPAR part 52078705 used instead.

What’s included

Not included: the HK2000 hose assemblies.

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)2003–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What Jeeps does the PSC SG400R fit?

It fits the 2003-2006 Jeep Wrangler TJ and the 2004-2006 Wrangler Unlimited LJ. The 1997-2002 TJ and the JK are outside this fit. Confirm fit for your vehicle's year, model and trim before ordering.

Does the SG400R need other parts?

Yes. PSC pressure and return hose assemblies, part HK2000, are required, and the intermediate shaft must be shortened by about 2 inches or replaced with MOPAR 52078705.

Will a body lift be needed with the SG400R?

Some applications need a 1-inch body lift so the pressure and return lines clear the body. The gearbox is larger than the original, which is why the lines can need the extra room. Confirm whether your vehicle needs the lift before installing.

Does the gearbox change how the steering feels?

Yes, a larger cylinder assist gearbox can change steering effort and feel, depending on the hydraulic setup and the rest of the steering system. Check the system for leaks and bleed it after installation, then test the steering at low speed before driving on trails or highways.
