Overview

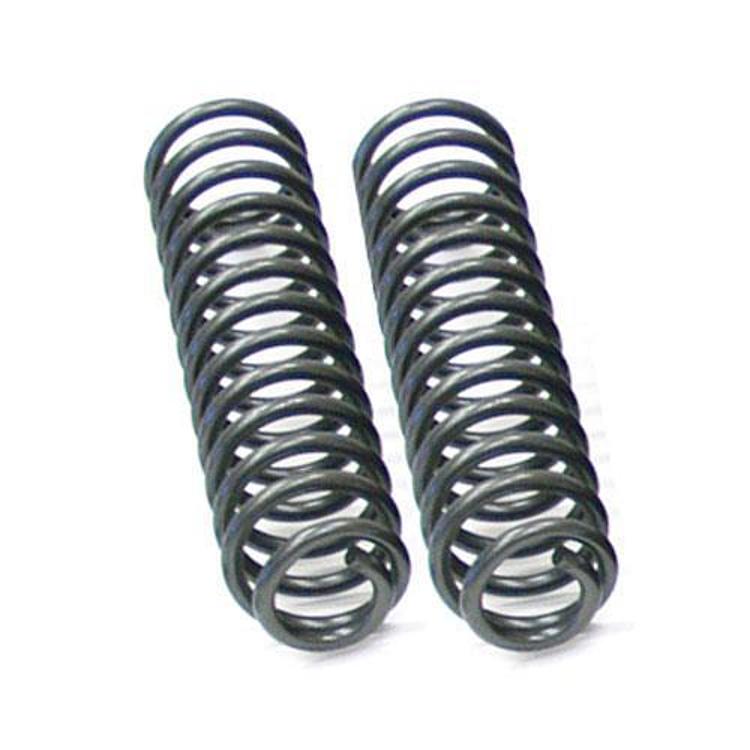

The 24514 is a set of two front coil springs for a 6-inch lift on Ford F-250 and F-350 Super Duty trucks from 2005 and 2010 through 2017. The springs are designed to stabilize the suspension and improve handling while keeping a smooth ride.
The springs are for the front position and are a direct fit. The set is for gas-engine trucks. Check spring rate, wire diameter and load rating before choosing a set for a heavier setup.
Key features
- Set of two front coil springs
- Built for a 6-inch lift.
- Fits 2005 and 2010-2017 F-250 and F-350 Super Duty trucks
- Front position, direct fit
Heavier loads and front springs
Front coil springs carry part of the truck’s weight, along with the engine and front bumper. A heavier front bumper, winch or accessories puts more load on the springs, so check the spring rate against the setup before choosing a set. Tire size and loaded weight also affect how the front rides.
Shocks need to be matched to a taller front end, since a lift changes their angle and travel. Check shock length, upper mounts and bump stops when fitting coils. Sway bar links and brake lines may also need a look at the new ride height.
After installation, have the front alignment checked and recheck hardware torque after the first few drives. Inspect the coils for cracks, rust and sag over time, and keep the setup balanced by checking the rear load as well.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 24514 |
| UPC | 614901108316 |
| Product type | Coil spring |
| Quantity | Set of 2 |
| Position | Front |
| Lift | 6 inches |
| Motor | Gas (spec sheet) |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2005 and 2010-2017 Ford F-250 Super Duty and F-350 Super Duty trucks. Confirm the trim against your truck.
Confirm your vehicle’s year, model and trim before ordering, especially for 2006 through 2009 and 2018 and later Super Duty trucks.
Installation notes
Front coil springs change ride height, so have the front alignment checked after the springs are installed.
What’s included
Two front coil springs, as a set of 2.
