Overview

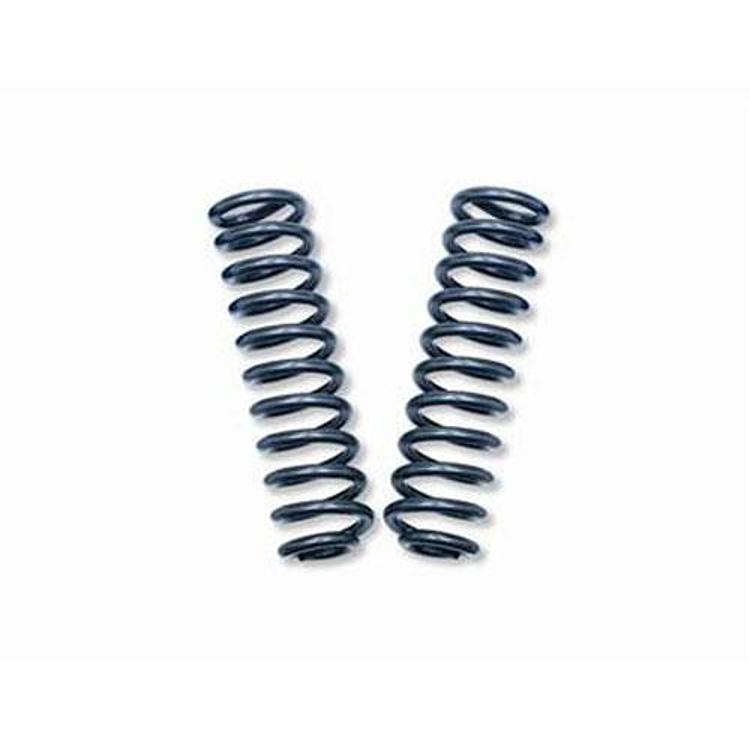

The Pro Comp 55404 is a set of two rear coil springs with 4 inches of rear lift for the 2004–2006 Jeep Wrangler Unlimited (LJ), including the Unlimited Rubicon. The springs are for the rear of the Jeep, one for each side.
Each spring is a preset coil with a specific spring rate, which provides the lift and improves ride characteristics.
A rear lift of this size changes the driveline angle, so the driveline angle should be measured after the springs go in, and the rear geometry should be checked.
Key features
- 4-inch rear lift on the LJ
- Set of 2 for the rear
- Preset coil with a specific spring rate
- Designed for Unlimited and Unlimited Rubicon models
Measuring after a 4-inch rear lift
A 4-inch rear lift is a large change for the LJ rear, and it moves the axle farther from the body than a smaller lift does. That affects the driveshaft angle and shock geometry, so the vehicle should be checked after the springs are fitted. Plan time for the check before the first long drive.
Start by measuring the driveline angles at each end of the shaft and comparing them with the readings taken before the change. Look for vibration at highway speed, which often points to an angle that is too steep. Inspect the U-joints and slip yoke for play, since an existing wear point can become a failure once the angle increases.
Rear springs sag over time, so inspect them at regular intervals. Check the coil ends for cracks, look at the rubber isolators and confirm that both sides sit at the same height. Replace springs that show sag, cracks or uneven sitting.
- Driveline angles at both ends of the shaft
- U-joints and slip yoke for play
- Rear height side to side
- Shock and brake line length at the new height
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 55404 |
| UPC | 614901100259 |
| Position | Rear |
| Lift | 4 inches |
| Quantity | Set of 2 |
| Fitment type | Direct fit |
Vehicle fitment
Pro Comp lists these rear coil springs as a direct fit for the 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon.
The list does not include the TJ, JK or JL. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the driveline angle once the rear springs are installed. A 4-inch rear lift changes the rear geometry, so recheck it after installation.
What’s included
A set of 2 rear coil springs with a 4-inch lift.
