Overview

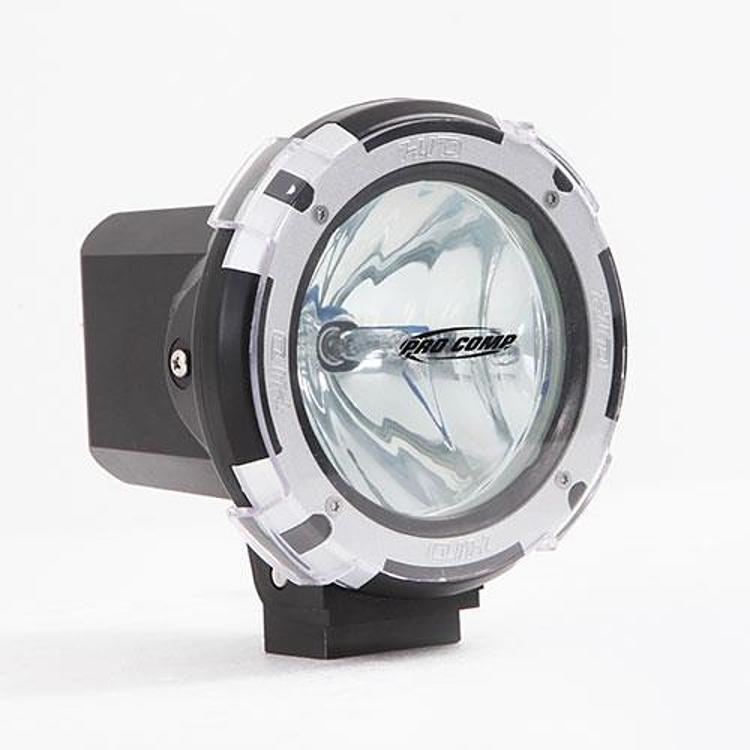

The Pro Comp 9641 is a 4-inch HID spot light with a 35W bulb, an internal ballast and a multi-directional mounting base. The spot beam concentrates light on a narrow area, which suits trail lighting that needs distance.
The light is fully self-contained, with waterproof connections and a pre-terminated wiring harness. The relay and impact-resistant stone guards come with it, and an illuminated dash switch is part of the kit.
Key features
- 35W HID spot beam
- Internal ballast
- Waterproof connections and multi-directional mounting base
- Clear and amber stone guards
- Pre-terminated wiring harness and relay
- Illuminated dash switch
Wiring and switch layout
The relay carries the current to the light, so the dash switch is only a control and does not handle the full load. Running the wire through a fuse close to the battery protects the harness and the ballast. Route the harness away from belts, exhaust heat and sharp edges, and secure it with clips so vibration does not wear the insulation.
An illuminated dash switch shows when the light is on, which helps avoid leaving it running at camp. Mount the switch where it is easy to reach without looking away from the trail. Test the circuit with the light off the mount first, then reconnect the stem and check the beam aim.
- Fuse the feed near the battery
- Secure the harness with clips
- Test the circuit before final mounting
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 9641 |
| UPC | 614901090543 |
| Bulb type | HID |
| Power | 35W |
| Diameter | 4 inch |
| Beam | Spot |
| Lens | Clear |
| Light shape | Round |
| Mounting | Stem |
| Finish | Black |
| Sold as | Single |
Vehicle fitment
The light is not matched to one vehicle, since it is universal fit. The stem mount fits a bar or bracket that gives the light a clear forward view.
Off-road use only. Check local rules before using auxiliary lights on public roads, and confirm the mounting location clears your truck’s body and cabling.
Installation notes
The light runs on its internal ballast, and the included harness, relay and illuminated switch connect it to a fused power source. Wire the relay before mounting the light.

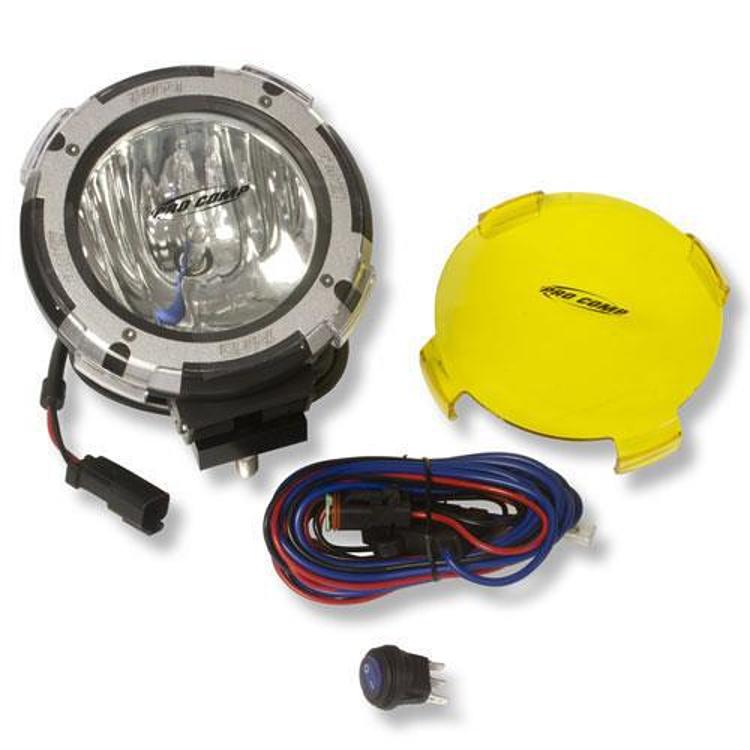

What’s included
One 4-inch HID spot light, clear and amber stone guards, a wiring harness, a relay and an illuminated dash switch.
