Rigid Industries Q Series Pro Combo LED Light (Black) – 544613

Rigid Industries

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rigid Industries Q Series Pro Combo LED light, part number 544613
  • Driving Pattern optic with spot and flood beams, plus a diffusion lens for scene and area lighting
  • Housing measures 6.79 in high, 6.75 in wide and 3.42 in deep
  • Vibration isolator and 304 stainless bracket included
  • Universal fit, suited to many mounting locations

Description

Overview

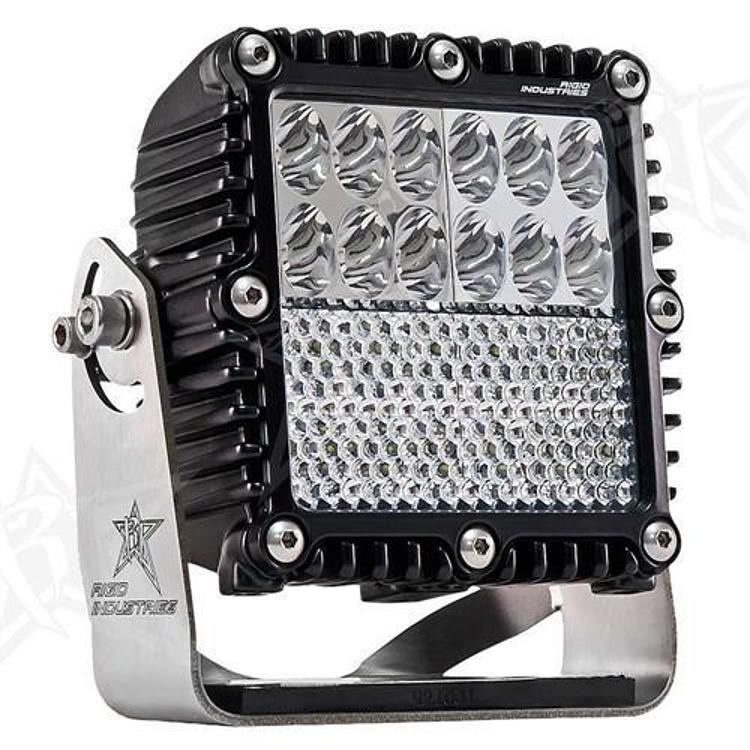

The Rigid Industries Q Series Pro Combo LED Light, part number 544613, is a square LED driving and scene light with a heavy-duty polycarbonate housing. It is built for commercial, agricultural and off-road use. It is universal fit, so mount it to suit your vehicle’s bumper, roof rack or light bar.

The Driving Pattern uses a narrow, oval-shaped reflector. Instead of a round beam, it projects an oblong beam with a bright center hot spot and wide horizontal dispersion, while still giving spot and flood coverage. The combo adds a diffusion lens for scene and area lighting. The Q-Series covers offer a 50% forward projecting and 50% area light option, so you can aim the light where you need it. Rigid recommends the light for agriculture, fire and rescue, commercial truck, marine, off-road and power sports work.

Key features

  • Driving Pattern optic with an oval reflector, giving spot and flood beams with a bright center hot spot
  • Diffusion lens for scene or area lighting
  • Optically clear, unbreakable polycarbonate lens
  • Combines 4 Dually / D2 optics into one large housing
  • Vibration isolator and 304 stainless bracket included
  • Q-Series covers offer a 50% forward projecting and 50% area light option
  • Built for heavy-duty commercial and off-road environments

Mounting a scene light

A square driving and scene light sits best where it can aim without glare reaching the cab. Mount it on a bar or bracket that holds the light rigid, since a flexing mount shifts the beam over rough ground. The vibration isolator reduces shock transfer from the bracket, but it does not replace a solid mounting point. Check the clearance behind the light before drilling, and keep the wiring away from hot surfaces.

Heavy duty commercial and off-road use means the lens and housing take a lot of abuse, so clean the polycarbonate with mild soap and inspect for chips after hard use. Re-torque the bracket bolts after the first few runs, since vibration can loosen them. Keep the switch and relay in a dry spot, and label the circuit so it is easy to trace later.

Specifications

Brand Rigid Industries
Part number 544613
Bulb type LED
Lens color Clear
Lens material Optically clear, unbreakable polycarbonate
Light shape Square
Height 6.79 in
Width 6.75 in
Depth 3.42 in
Size 6.7 inch
Bracket 304 stainless steel
Sold as Single
Fitment Universal Fit

Vehicle fitment

The light is universal fit and is not sized for one vehicle. Measure the mounting spot against the 6.79 in height and 6.75 in width before buying.

Because the light is not vehicle-specific, match the bracket and mounting point to your bumper, roof rack or light bar.

Installation notes

The vibration isolator and 304 stainless bracket come with the light, so plan the mount around them. Wire the light through a fused relay, and check local road-use rules before fitting it to a vehicle driven on public roads.

What’s included

The light is sold as a single unit with the vibration isolator and 304 stainless bracket.

Not included: Wiring, switch and relay are not part of the kit, so plan for them before mounting.

SKU: RIG544613 Category:

Specification

Shipping weight 5.00 lbs
Package dimensions 13.00 × 8.00 × 4.00 in
brands

Questions & Answers

Is the Rigid Industries 544613 a universal fit light?

Yes. It is universal fit, so it is not built for a particular vehicle. Check that its 6.79 in by 6.75 in face and the bracket suit your mounting location before buying.

What beam patterns does the Q Series Pro Combo produce?

The Driving Pattern optic uses an oval reflector to combine spot and flood beams with a bright center hot spot. The combo also includes a diffusion lens for scene and area lighting, which covers wide work areas as well as distance.

What are the housing dimensions?

The housing measures 6.79 in high, 6.75 in wide and 3.42 in deep, with a size of 6.7 inch. These are the light's own measurements.

Is a bracket included?

Yes. A 304 stainless bracket and a vibration isolator come with the light, which is sold as a single unit.

How should a driving and scene light be aimed on a vehicle?

Aim it on level ground with the vehicle at normal load. A combo pattern with a hot spot throws the strongest beam forward, so set the height so the spot lands well ahead while the diffused area lights the work zone.
