Overview
The Pro Comp 9670 is a 7-inch HID flood light with a 35W bulb, an internal ballast and a multi-directional mounting base. It is part of the Explorer HID off-road range, built to light the trail ahead with a wide flood beam.
The lights are fully self-contained, with waterproof connections, a pre-terminated wiring harness and a relay. Impact-resistant clear and amber stone guards protect the lens, and an illuminated dash switch is included. The light is made for off-road use only.
Key features
- 35W HID flood beam
- Internal ballast, so no separate ballast is needed
- Waterproof connections and multi-directional mounting base
- Clear and amber stone guards
- Pre-terminated wiring harness and relay
- Illuminated dash switch
Wiring and mounting tips
Auxiliary HID lights work well with a clean, fused power feed and a solid mount. Route the harness away from moving suspension parts and hot exhaust, and keep the relay in a dry spot. A loose connection or a poor ground can cause flicker, so tighten every connector before the trim goes back on.
Aim matters as much as wiring. Set the beam low enough to light the trail without throwing glare into oncoming traffic or the cab. Stone guards get dirty quickly, so clean the lens regularly and inspect the guard for cracks after rough runs. HID lamps also need a short warm-up after switching on, so expect a brief delay before full brightness.
- Aim the beam low to limit glare
- Use a fused circuit matched to the relay
- Check mounting bolts after rough trails
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 9670 |
| UPC | 614901090536 |
| Bulb type | HID |
| Power | 35W |
| Diameter | 7 inch |
| Beam | Flood |
| Lens | Clear |
| Light shape | Round |
| Mounting | Stem |
| Finish | Black |
| Sold as | Single |
Vehicle fitment
The light is a universal fit and is not built for one vehicle. Mount it with the stem and base to a bar or bracket that clears the stone guard and the lens.
Off-road use only. Check local rules before using auxiliary lights on public roads, and confirm the mounting location clears your truck’s body and cabling.
Installation notes
The light uses its internal ballast and comes with a pre-terminated harness, relay and illuminated switch, so it is wired through the relay to a fused power source. Wiring the relay and the dash switch is the main installation step.
What’s included

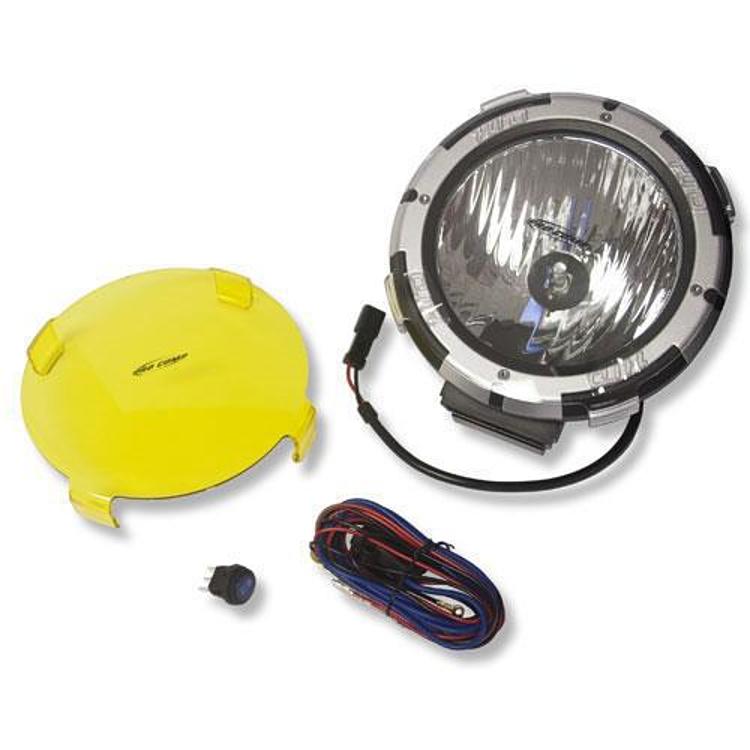

One 7-inch HID flood light, clear and amber stone guards, a wiring harness, a relay and an illuminated dash switch.
