Overview
The Pro Comp 2.5 inch Leveling Lift Kit (part number 62665) raises the front of the vehicle to match the rear. It uses front coil spring spacers and front shock relocation brackets, so the lift happens at the front only and the rear stays at its factory height.
The kit gives clearance for wheels and tires up to 35 inches in diameter. It does not affect factory ride quality or comfort, and a track bar drop keeps the front geometry in order.
Key features
- 2.5 inch front-only lift with the rear unchanged
- Steel coil spring spacers in black
- Front shock relocation brackets
- Track bar drop
- Maximum tire size 35×12.50, with wheels 16 inches or larger
Front-only lift considerations
A front-only leveling kit trades a small change in front geometry for matched height, so the rest of the chassis stays as the factory built it. Coil spring spacers add height at the spring seat, and the rest of the suspension keeps working through its original range. Handling should be checked after the first drives, especially on uneven pavement.
The track bar is the part most affected when the front rises. Its angle changes with height, which can shift the axle’s side-to-side position. A track bar drop is used to bring that angle back toward level, and the bar should be checked after installation. Steering centering and tire wear are good indicators.
Coil spacer kits need periodic checks of hardware and bushings. Loose bolts, shifting spacers or worn bushings show up as clunks or uneven tire wear.
- Check the track bar angle after installation
- Inspect spacers and brackets for loose hardware
- Watch for uneven front tire wear
- Recheck alignment after the first drives
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 62665 |
| UPC | 614901022643 |
| Lift height | 2.5 inches |
| Position | Front |
| Front lift method | Coil spring spacers |
| Rear lift method | Front lift only |
| Spacer material | Steel |
| Finish color | Black |
| Maximum tire size | 35×12.50 |
| Wheel size | 16 inches or larger |
| Wheel backspace | 4 to 5.75 inches |
| Warranty | Lifetime warranty against defects, for as long as you own the vehicle |
| Fit type | Direct fit |
Vehicle fitment
It is a direct fit kit. Confirm the front coil spring and shock setup on your vehicle before ordering.
Installation notes
This is a front-only lift, so check alignment and driveline angles after installation. The track bar drop changes track bar geometry, so confirm the track bar is set correctly once the front is raised.

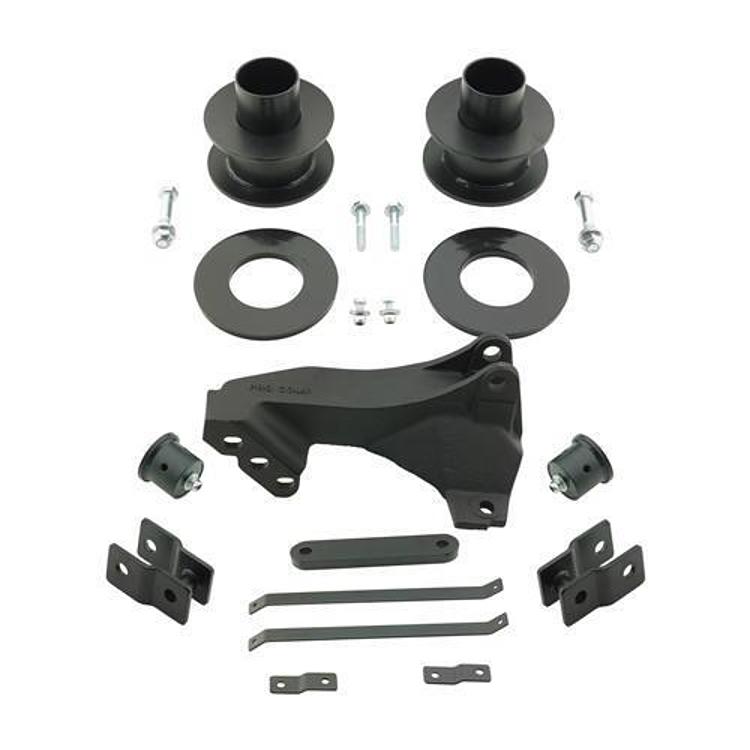

What’s included
Front coil spring spacers, front shock relocation brackets and the track bar drop.
