Overview

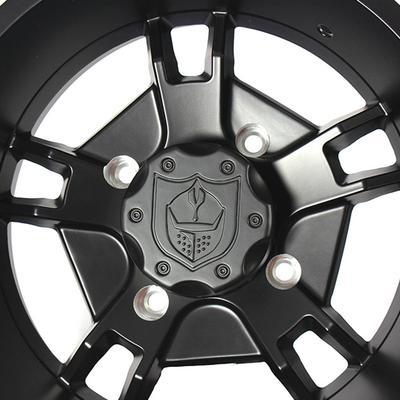

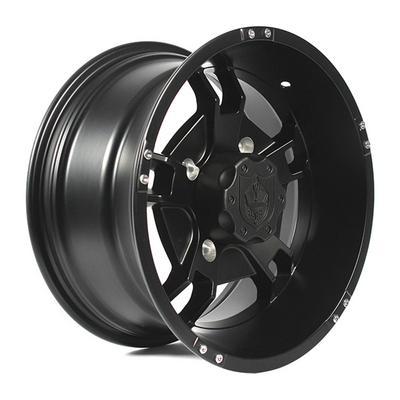

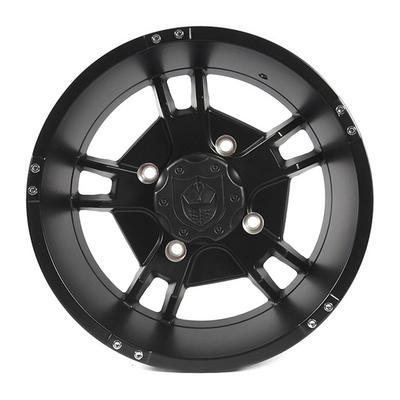

The Pro Armor Ryder 14×8 UTV wheel, part number P/ACA1408RYBL, is a matte black wheel with a 4 on 137 bolt pattern and 4+4 backspace.
The matte black finish is easy to wash and pairs well with Pro Armor tires. The wheel fits most Can-Am machines, including the X3 and X3 MAX.
Key features
- 14×8 wheel size
- 4 on 137 bolt pattern
- 4+4 backspace
- Matte black finish, easy to wash, per Pro Armor
- Ryder style, non-beadlock
Wheel care and tire pairing
Non-beadlock wheels depend on a firm seal between the tire bead and the rim, so keep tire pressure within the range printed on the tire sidewall and check it before each ride. Low pressure can let the tire come off the bead during hard cornering or a bump. After an impact, look over the rim edge for bends, since a bent edge can cause slow leaks.
Backspace sets how far the wheel sits in the hub, which changes tire position and clearance to suspension and steering parts. Changing tire width or diameter can alter that clearance, so check the fit before riding on new sizes. Matte finishes show scratches and scuffs more clearly than gloss, so a gentle wash after mud runs keeps the wheel looking uniform.
- Set pressure before every trail session
- Inspect the rim edge after hard hits
- Recheck clearance after changing tires
Specifications
| Brand | Pro Armor |
|---|---|
| Part number | P/ACA1408RYBL |
| Wheel size | 14×8 |
| Bolt pattern | 4 on 137 |
| Backspace | 4+4 |
| Beadlock | No |
| Wheel type | UTV |
| Style | Ryder |
| Finish | Matte black |
Vehicle fitment
Confirm the fit for your machine’s year, model and trim before mounting, and match the bolt pattern and backspace to the hubs.
Pro Armor names the Can-Am X3 and X3 MAX as examples of machines that work with most Can-Am models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Match the 4 on 137 bolt pattern and 4+4 backspace to your machine’s hubs before mounting the wheel.
