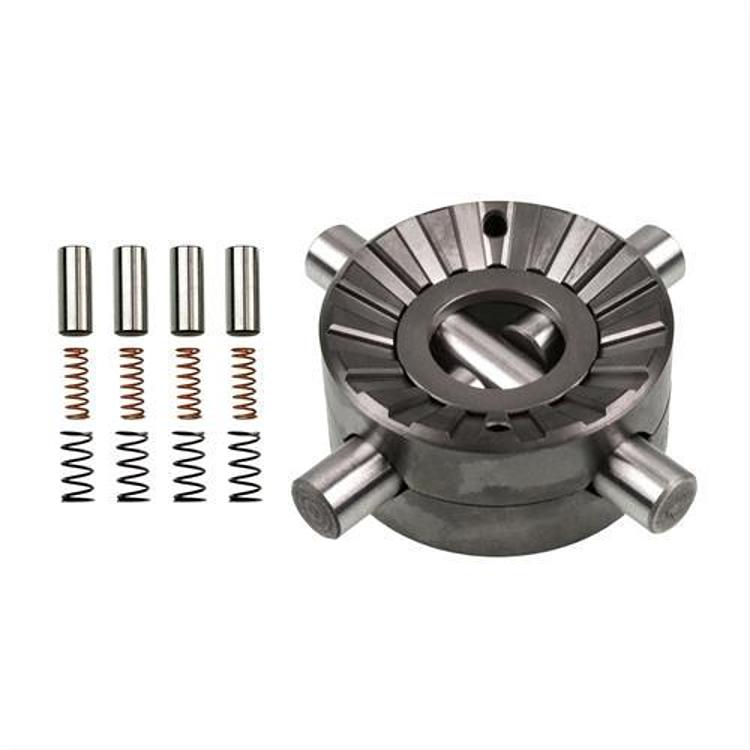

Power Trax Suzuki 6.9in. 26 Spline Lock Right Locker – 1512-LR

Power Trax

$275.90In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 9:10 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Power Trax 1512-LR, 6.9-inch right lock automatic locker
  • Built for the rear axle of 1989-1995 Suzuki Sidekick models
  • For 26 spline axles and open differentials only
  • Reuses the existing carrier, so no ring and pinion setup is needed

Description

Overview

The Power Trax 1512-LR is a 6.9-inch, 26 spline right lock automatic locker for the rear axle of a 1989-1995 Suzuki Sidekick. It turns an open differential into a locking one, so both rear wheels can drive when one loses grip.

Built for rugged off-road use, it delivers strong traction. The locker reuses the factory side gears when it runs without couplers, and the full differential case does not need replacing.

Key features

  • Automatic locker for open differentials only
  • Built for 26 spline axles
  • Reuses the existing carrier, leaving the ring and pinion unaltered
  • Works with factory side gears when used without couplers
  • Complete differential case replacement is not required

Off-road traction basics

An open differential sends most torque to the wheel with the least grip, so a single slipping tire can stop the vehicle. A right lock automatic locker changes that behavior, letting the other wheel drive when one side loses traction. This matters most on loose dirt, rock ledges and mud, where wheel lift is common.

Lockers put more stress on axle shafts, u-joints and gears, so many owners check those parts when adding one. Tire size and gearing affect how the locker feels, and a larger tire adds load on the driveline. Keep the carrier fluid fresh and inspect the locker after the first few trail runs. Expect a noticeable change on tight pavement turns, and plan your driving around it.

Specifications

Brand Power Trax
Part number 1512-LR
UPC 698231806739
Locker type Automatic locker
Lock side Right
Axle spline count 26 splines
Axle type Suzuki 6.875 inches
Axle location Rear
Popular axle manufacturer Other
Fitment field Universal Fit

Vehicle fitment

It is made for the rear axle of the 1989-1995 Suzuki Sidekick.

Confirm fit for your vehicle’s year, model and trim before ordering, and make sure the axle is a rear unit.

Installation notes

Because the locker reuses the existing carrier, no ring and pinion setup is needed. Have a qualified differential shop fit and test it, since the locker changes how torque reaches each wheel.

What’s included

The package is the Power Trax 1512-LR right lock automatic locker. Check the package contents against your installation before starting.

Not included: Couplers, which the locker does not need when it runs with factory side gears.

SKU: PTX1512-LR Category:

Specification

Shipping weight 1.85 lbs
Package dimensions 10.80 × 4.80 × 2.80 in
brands

Fitment

VehicleYearsTrims
Suzuki Sidekick likely fits1989–1995All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Power Trax 1512-LR fit a 1989-1995 Suzuki Sidekick?

Yes. It is made for the rear axle of the 1989-1995 Suzuki Sidekick, with 26 spline axles. Check that your housing is the 6.875-inch Suzuki type with 26 splines before ordering.

Does the 1512-LR require a ring and pinion gear setup?

No. The locker reuses the existing carrier and the ring and pinion setup is unchanged, so a new gear setup is not needed for this unit itself.

What are the part number and UPC for the 1512-LR?

The part number is 1512-LR and the UPC is 698231806739, both from Power Trax. It is a right lock automatic locker for open differentials with 26 splines.

Can this locker go into a differential that already has a locking unit?

This unit is for open differentials only, so it does not suit a differential that already has a locking or limited-slip unit. Check your current setup before installing the 1512-LR.

How do I know if the locker is working correctly?

Lift one rear wheel off the ground in a safe spot and look for drive on the other wheel. Listen for clicking or grinding in turns, and check for fluid leaks after trail use. A healthy unit engages without binding when you drive straight.
