Overview

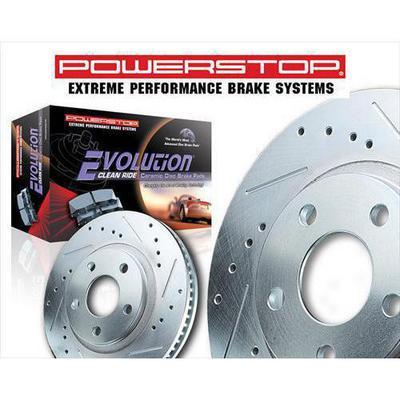

The Power Stop K2578 is a front Z23 Evolution Sport brake kit for the 1986 Ford E-150, the 1973–1983 Ford F-100 and the 1975–1986 Ford F-150, with five-lug slotted and cross-drilled rotors and ceramic pads.
The K2578 is a matched front brake set of cross-drilled and slotted cast iron rotors and Z23 Evolution Sport carbon fiber and ceramic pads, supplied as a 2-wheel set for the front axle. The design aims for firm stopping with low dust and noise.
Key features
- Front brake kit for classic Ford trucks and vans
- Slotted and cross-drilled cast iron rotors
- Coated rotors
- Ceramic pads
- Five-lug rotor pattern
- Direct-fit design
- Matched rotor and pad set
Care for classic truck brakes
Older trucks often sit for long periods, which lets brake surfaces rust and seals dry out. Before installing new front parts, inspect the brake lines, hoses and wheel cylinders on the hydraulic side. Clean the hub mounting face and check the wheel bearings, since a loose bearing can make a new rotor wobble and wear the pads unevenly.
Matched pads and rotors need a short bedding routine. Use moderate stops at lower speed to transfer an even layer of pad material to the rotor faces. Re-check the lug nuts after the first drive, and inspect the rotor surface and pad thickness at the next service interval, especially if the truck is used for towing.
- Inspect hydraulic lines and hoses first
- Check wheel bearing play before installation
- Re-torque lug nuts after the first drive
Specifications
| Brand | Power Stop |
|---|---|
| Part number | K2578 |
| Series | Z23 Evolution Sport |
| Axle position | Front |
| Rotor type | Slotted and cross-drilled |
| Rotor material | Cast iron |
| Rotor coating | Coated |
| Pad material | Ceramic |
| Number of lugs | 5 |
| Fit type | Direct fit |
| Quantity | 2-wheel set |
Vehicle fitment
It fits the 1973–1983 Ford F-100, the 1975–1986 Ford F-150 and the 1986 Ford E-150. For the E-150, only the 1986 model year applies.
Other E-150 years, the F-250 and newer F-150 trucks are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit covers the front axle only, with five-lug rotors, so it is a front-brake job and the rear brakes are not part of it. The pads and rotors are matched and should be installed together as the 2-wheel set. Before starting work on the larger truck and van applications, confirm the wheel lug count matches the five-lug rotors.

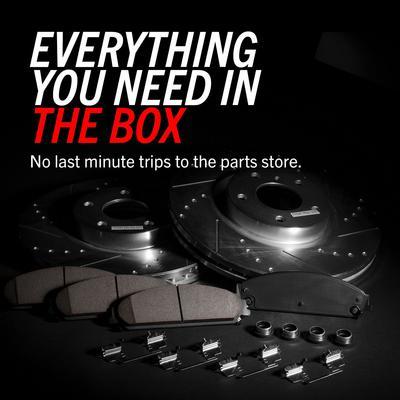

What’s included
- Two slotted and cross-drilled coated cast iron rotors (front)
- Z23 Evolution Sport ceramic brake pads (front)
Not included: Rear brake parts, calipers and wheel bearings.
