Poison Spyder 4″ LED Taillight and Wiring Kit – 41-08-020

Poison Spyder Customs

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Complete wiring kit for installing 4-inch LED taillights on the 2007–2018 Jeep Wrangler JK
  • Driver and passenger side plug-and-play harnesses with built-in load resistors
  • Connectors for 2-1/2-inch LED back-up lamps and a 6-foot lead for a license plate light
  • Part number 41-08-020; red lens color listed

Description

Overview

The Poison Spyder 41-08-020 is a complete kit for wiring 4-inch LED taillights into the Jeep Wrangler JK, for two-door and four-door models in the listed trims. Poison Spyder describes its JK LED taillight harness system as a plug-and-play way to get the rear LED lighting working on the JK.

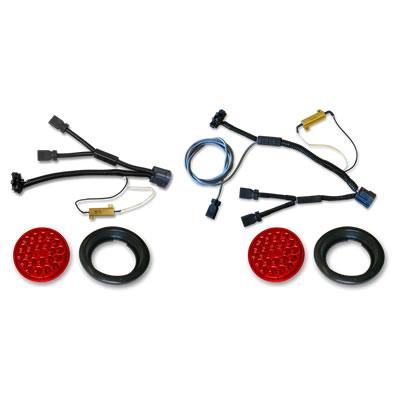

The kit is built around two main harnesses, one for the driver side and one for the passenger side. The driver side harness is used on the driver’s side and does not include a license plate light provision. The passenger side harness is used on the passenger side and includes a 6-foot lead with a weatherproof connector for the Poison Spyder LED license plate and third brake light. Most configurations use one of each. Each harness plugs into the Jeep’s factory wiring, so the stock taillight pigtail is unplugged and the Poison Spyder harness is connected in its place.

The wire is automotive quality with split-loom sheathing, and the connections are weatherproof where exposed. Several LED lights plug directly into the harness, or connect through jumper harnesses.

Each taillight harness includes a load resistor, so the turn signals flash at the correct speed and the vehicle’s computer does not show an error code. That removes the need for separate load resistors with taps and butt connectors. The 4-inch round LED stop, turn and tail lights use a 3-prong connector that plugs directly into the harness and is made for those lights only.

Each side has two connectors for 2-1/2-inch round LED back-up lamps, so up to four lamps can be wired in total. The back-up lamp connectors are wired into the back-up circuit. Using them as manually switched work lights would require changing the harness and the vehicle’s wiring.

Key features

  • Driver and passenger side plug-and-play taillight harnesses
  • Built-in load resistors for correct turn signal flash
  • Supports 4-inch round LED taillights
  • Two back-up lamp connectors per side, for up to four 2-1/2-inch lamps
  • Passenger side 6-foot lead for an LED license plate and third brake light
  • Extension harnesses for lamps under the taillight or in the recessed bumper mounts

Wiring and testing

Taillight wiring kits replace the factory plug connection, so the work is mostly about routing the harness neatly and keeping the connections dry. Route the harness away from moving parts and sharp body edges, and secure it with loom and clips. Keep the lamp connectors clean before pushing them together, and apply dielectric grease to the terminals where the instructions call for it.

LED lights draw less current than incandescent bulbs, so turn signal behavior depends on the load resistors built into the harness. If a flasher behaves oddly after installation, check the harness connections before adding separate components. A clean, secure ground point also prevents flicker and dim lamps.

  • Route wiring away from heat and moving parts
  • Keep connectors dry and seated fully
  • Test each lamp before reinstalling the trim
  • Use a clean, bare-metal ground point

Specifications

Brand Poison Spyder Customs
Part number 41-08-020
Lens color Red
Taillight size 4-inch round LED taillight connectors
Back-up lamp size 2-1/2-inch round LED back-up lamps
License plate lead 6-foot lead, passenger side
Connectors 3-prong taillight connector; weatherproof lamp connectors
Fitment type Direct fit

Vehicle fitment

This kit is a direct fit for the 2007–2018 Jeep Wrangler (JK) in two-door and four-door models, including the 70th and 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, and the Unlimited versions of those trims.

The list does not include the TJ, LJ, YJ or JL. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Each harness plugs into the stock taillight connector, so the factory pigtail is unplugged first. The license plate lead can be routed through the tailgate or along the tire carrier, or coiled and secured inside the body corner if no plate light is used.

What’s included

Driver and passenger side JK LED taillight harnesses, the 6-foot license plate lead, and the back-up lamp extension harnesses with their connectors.

Not included: the 4-inch round LED taillights, the 2-1/2-inch round LED back-up lamps and the LED license plate and third brake light, which Poison Spyder sells separately.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited 70th Anniversary (4-Door), Unlimited 75th Anniversary (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door), Unlimited X (4-Door), X (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 41-08-020 kit fit a 2007 to 2018 Jeep Wrangler JK?

Yes. It is a direct fit for the 2007–2018 Jeep Wrangler (JK) in two-door and four-door models, in the trims this kit covers.

Does the kit include the LED taillights?

No. The harnesses are designed to take Poison Spyder's 4-inch round LED taillights, which are sold separately. The lights plug directly into the harness.

Will the turn signals flash normally?

Yes. Each taillight harness has a load resistor built in, so the turn signals flash at the correct speed and the vehicle's computer does not show an error code.

Can I run the back-up lamps as work lights?

Using them as work lights requires changes. The back-up lamp circuit feeds those connectors, so switching them manually means altering the harness and the vehicle's wiring.

How should I test the lights before closing the body?

Connect the harness, then cycle the headlights, brake pedal and turn signals and check each lamp before reattaching the trim panels. Confirm the license plate lead and back-up lamps work in reverse.

Do the back-up lamps need a separate switch?

Not for normal reverse use. They run from the back-up circuit, so they turn on when the transmission is in reverse. Using them as work lights requires rewiring, which is a separate project.
