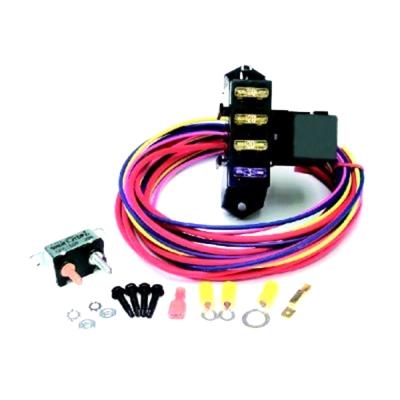

Painless Wiring 3 Circuit Auxiliary Fuse Block – 70203

Painless Wiring

$128.01In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 3:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Painless Wiring 3 circuit auxiliary fuse block, part number PWP70203
  • Each circuit individually fused for up to 15 amps
  • Adds ignition hot and constant hot circuits
  • Universal Fit tag; no vehicles named

Description

Overview

The Painless Wiring 3 circuit auxiliary fuse block, part number PWP70203, adds ignition hot and constant hot circuits to a vehicle’s electrical system. Painless Wiring says each circuit is individually fused for up to 15 amps and that the block protects your OEM warranty. No vehicle, year or model is named for it.

Key features

  • Three circuits, typed as auxiliary
  • Each circuit individually fused for up to 15 amps
  • TXL cross link polyethylene wire rated to 275 degrees at 600 volts
  • Factory machine terminated wires, which Painless Wiring describes as easy to install

Planning auxiliary circuits

An auxiliary fuse block gives you protected outputs for accessories, but the circuits only work well when you plan what each one powers. List every device, its current draw and whether it should run with the ignition or stay live all the time. Heavy loads such as lights, pumps and winches often belong on a relay so the fuse block carries only the control current, not the full load.

Route the block’s feed wire to a clean, protected source and keep it short where possible. Use a solid ground close to the block and label each circuit at the fuse so future service is simpler. Check fuse seating and wire terminations after the first few drives, and leave room in the box for future additions without crowding the wires.

  • Map each device to its own circuit
  • Use relays for heavy loads
  • Label every circuit at the block
  • Check grounds and terminations after installing

Specifications

Brand Painless Wiring
Part number PWP70203
Type Auxiliary
Circuits 3 circuits
Fuse rating per circuit Up to 15 amps
Wire type TXL cross link polyethylene
Wire rating 275 degrees at 600 volts

Vehicle fitment

The Universal Fit tag names no make, model or year. Because this is an auxiliary block, the circuits you wire decide what it powers rather than a vehicle match.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Disconnect the battery before wiring the ignition hot and constant hot circuits, and confirm each circuit’s 15 amp fuse rating matches the load it will carry.

What’s included

The fuse block with its wiring is the item covered. Confirm mounting hardware and individual fuse part numbers before installing.

Questions & Answers

Does the Painless Wiring 70203 fuse block fit my vehicle?

No vehicle is named, and the only fitment statement is Universal Fit. It is an auxiliary block, so the circuits you wire determine what it supplies rather than a vehicle match.

How many circuits does Painless Wiring part 70203 provide?

It provides 3 circuits, each typed as auxiliary and individually fused for up to 15 amps. Confirm the fuse size for each circuit against its load before wiring.

What wire does the Painless 70203 use?

It uses TXL cross link polyethylene wire rated to 275 degrees at 600 volts. The wires come factory machine terminated for installation.

Should a heavy accessory connect directly to an auxiliary circuit?

Usually not. Heavy loads placed directly on a fuse block can draw more current than the wire and terminals were chosen for. A relay lets a small control circuit switch the load, so the fuse block only carries the control current.
