Overview

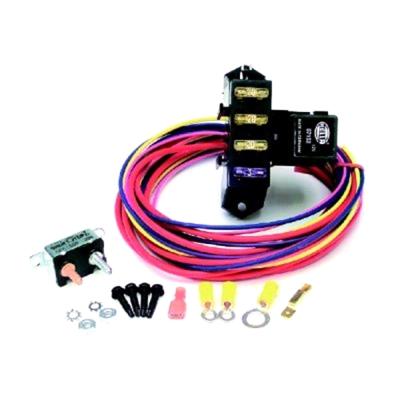

The Painless Wiring 3 circuit ignition hot circuit boss, part number PWP70113, is a fuse block typed as ignition for adding ignition hot and constant hot circuits. Each circuit is individually fused for up to 15 amps, and the block is designed to help keep the OEM warranty intact.
Key features
- Typed as ignition for ignition hot and constant hot circuits
- Each circuit individually fused for up to 15 amps
- Factory machine terminated wires
- TXL cross link polyethylene wire rated to 275 degrees
Planning the circuit layout
Ignition-switched and constant circuits behave differently. An ignition hot circuit only has power when the key is on, which suits accessories that should shut off with the engine. A constant circuit stays live with the key off, which suits devices that need power at all times, such as a memory feed or an alarm. Plan which loads go where before running any wire.
Route each circuit away from heat, sharp edges and moving parts, and secure it at regular intervals. Use a relay for high-current loads such as lights or pumps, so the fuse block only carries the switching current. Label each circuit at the block and keep a simple diagram in the glovebox so future changes do not disturb the existing wiring.
- Separate ignition and constant loads
- Use relays for high-current accessories
- Label each circuit at the block
- Keep a written wiring diagram
Specifications
| Brand | Painless Wiring |
|---|---|
| Part number | PWP70113 |
| Type | Ignition |
| Circuits | 3 circuits |
| Fuse rating per circuit | Up to 15 amps |
| Wire type | TXL cross link polyethylene |
| Wire rating | 275 degrees |
Vehicle fitment
Universal Fit is the only fitment statement, and it names no make, model, year or trim. Compatibility depends on your own ignition and constant wiring rather than a vehicle list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Disconnect the battery before wiring the ignition hot circuit, and confirm each circuit’s fuse rating suits the load it will carry.
What’s included
This is a single circuit boss. Check the package contents for mounting hardware and wire lengths before starting.
