Overview

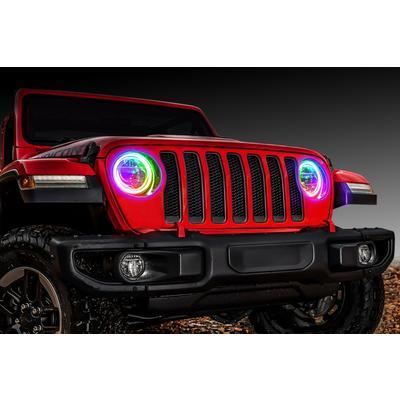

The ORC1346-504 is the Simple configuration of Oracle Lighting’s ColorSHIFT RGB + Headlight DRL Upgrade, built for factory LED headlights on the 2018–2021 Jeep Wrangler JL. It swaps in RGB+W replacement boards that turn the perimeter DRL into a color-changing halo ring.
The kit centers on the boards: a white LED for truer white tones, a crisp white DRL color option, and an instant switch to white for road driving.
Key features
- Replacement RGB+W boards for the factory perimeter DRL
- Extra white LED for truer white daylight running light tones
- Switch to white for road driving.
- Hundreds of color choices and dozens of patterns described
- Brightness and function speed adjustable
- Simple configuration
Matching headlights and wiring
The Simple version is built for factory LED headlights, so the headlight check happens first. Look at the headlight housing and confirm the factory LED option before ordering. Mismatched headlights can prevent the perimeter DRL from lighting correctly, and sorting this out after installation means taking the lamp apart again.
Wiring work is short but should be neat. Route the wires away from the headlight housing edges and hot surfaces, and keep connections dry. Confirm the power source is switched so the halo does not run unexpectedly. Test white and colored modes before refitting trim, and keep the white setting for normal road driving.
- Confirm the factory LED headlight option
- Keep connections dry and secure
- Test white and colored modes before refitting
Specifications
| Brand | Oracle Lighting |
|---|---|
| Part number | ORC1346-504 |
| Version | ColorSHIFT – Simple |
| Chips | RGB+W |
| Headlight requirement | Factory LED headlight option |
Vehicle fitment
Oracle’s manufacturer list includes 2018–2021 Jeep Wrangler JL models only, in both 2-door and 4-door forms, across the Rubicon, Moab, Sport, Sport S, Freedom, Islander, Willys, Sahara and 80th Anniversary trims.
The fit covers 2018–2021 Jeep Wrangler JL models in 2-door and 4-door forms. The Gladiator is not a confirmed fit, and JK and LJ Wrangler generations are outside this fit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check that your headlights have the factory LED option before fitting, because the kit is designed for that setup. Use fused wiring for any additional lights and follow local rules for colored lighting on public roads.

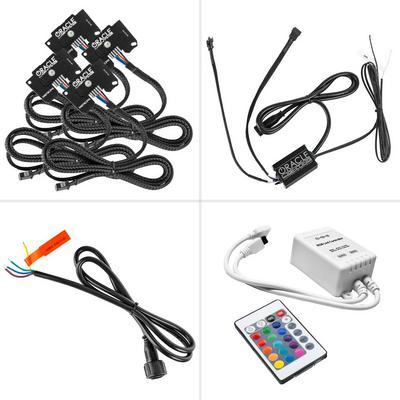

What’s included
The kit is RGB+W replacement boards in the Simple version. Check the package contents against your installation before starting.
